HX-3S-F100A 100A 3S BMS 18650 Battery Protection Board in Pakistan

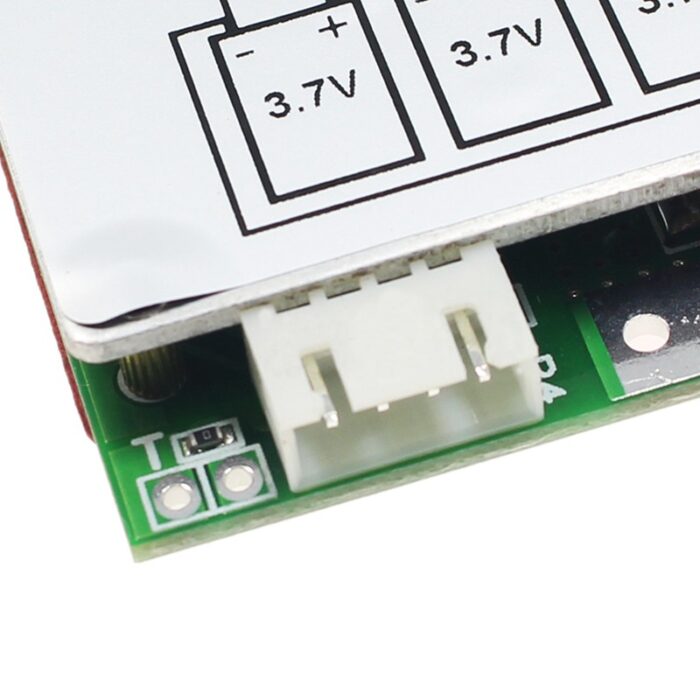

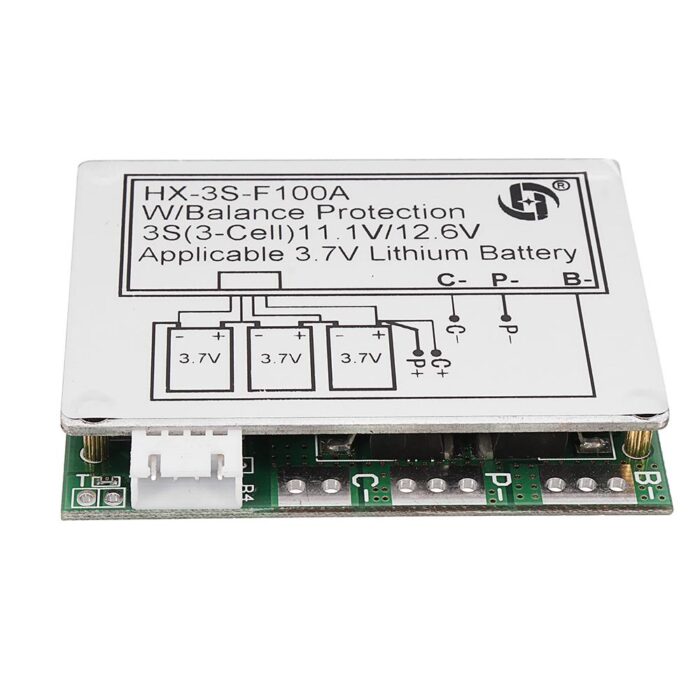

This HX-3S-F100A based 100A BMS board is also called (a battery management system ). HX-3S-F100A is a protection board for li-ion 18650 cells. There are 10 MOSFET’S, a strong heat-dissipating aluminum sheet installed on it, and the continuous current limit is 100A. It is suitable for 3 series lithium battery packs such as inverter, xenon lamp, and solar street lamp.
₨1550
This HX-3S-F100A based 100A BMS board is also called (a battery management system ). HX-3S-F100A is a protection board for li-ion 18650 cells. There are 10 MOSFET’S, a strong heat-dissipating aluminum sheet installed on it, and the continuous current limit is 100A. It is suitable for 3 series lithium battery packs such as inverter, xenon lamp, and solar street lamp.
Features of HX-3S-F100A:
- Overcharge voltage range: 4.28v±0.05v/ per cell
- Size: 70*60*8.5mm
- Over-discharge voltage range: 2.5±0.05v
- Upper limit working current: 100A (pay attention to heat dissipation)
- Working temperature: -40~+50°C
- Upper limit instantaneous current: 100-120A
- Storage condition: -40~+80°C
- Quiescent current: less than 30uA
- Effective life: more than 30,000 hours
- Internal resistance: less than 300mΩ
- Short circuit protection: protection, delay self-recovery.
- Equilibrium current: 65 mA
- Charging voltage: 12.6V-13V
- Charging current upper limit: 10A
Package Includes:
- 1 x HX-3S-F100A 100A 3S BMS 18650 Battery Protection Board in Pakistan
