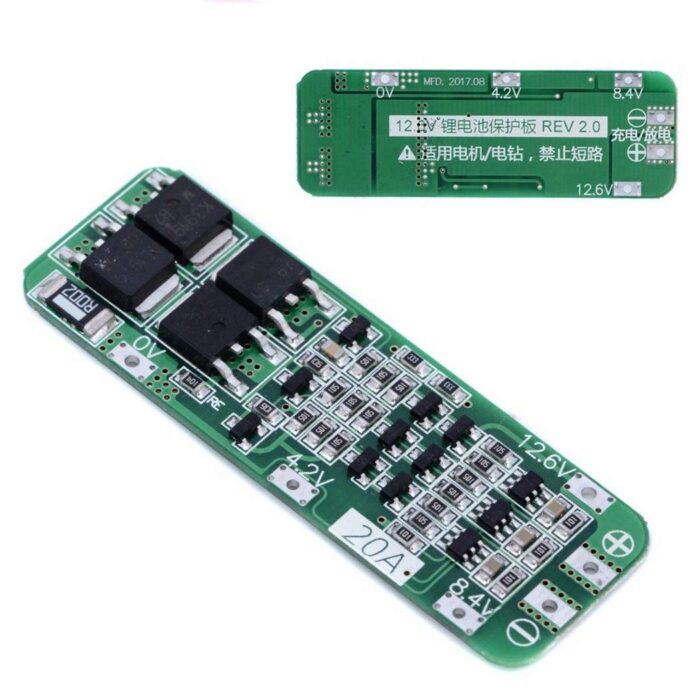

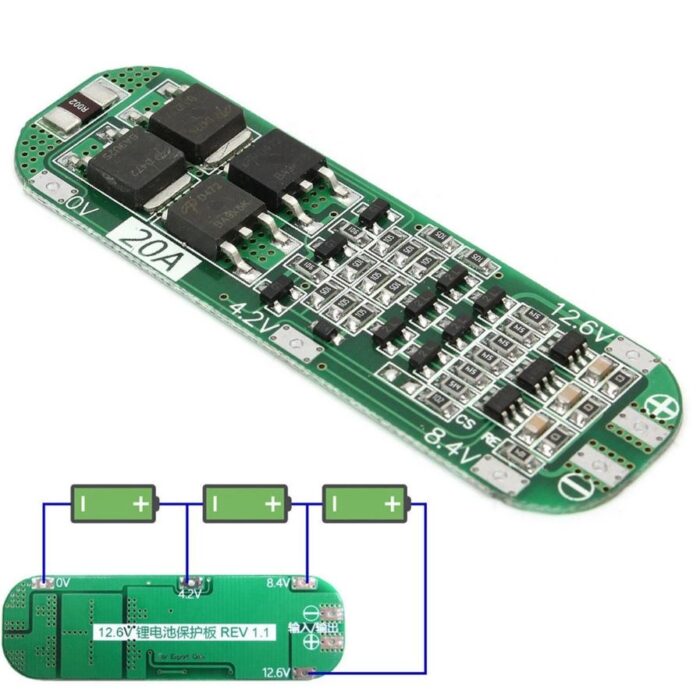

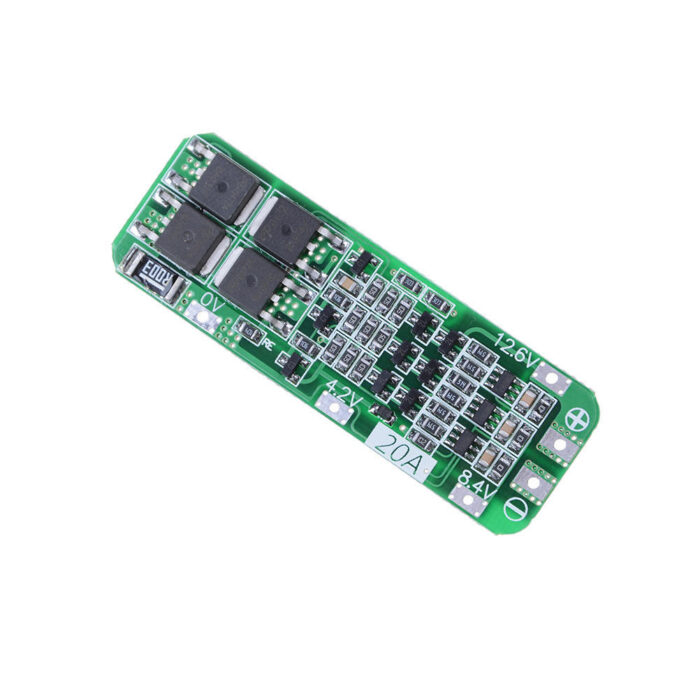

3S BMS 20A Li-ion Lithium Battery 18650 PCB Charger Protection Board in Pakistan
₨230
3S BMS 20A Li-ion Lithium Battery 18650 PCB Charger Protection Board in Pakistan
Description
3S BMS 20A Li-ion Lithium Battery 18650 PCB Charger Protection Board in Pakistan
Specifications Of 3S 20A Li-ion Lithium Battery 18650 Charger Protection Board:
- Model:Â HX – 3 s – 01 charging pressure range: 4.25 + / – 0.05 v to 4.35 v
- Size:Â 50 * 16 * 1.0 mm discharge voltage range: 2.3 + / – 0.05 v to 3.0 v
- Maximum working current: 5-6 – a working temperature: – 40 – + 50 ℃
- Maximum instantaneous current: 8 a storage conditions: – 40 – + 80 ℃
- Static electricity:Â less than 30 ua useful life: more than 50000 hours
- Resistance: less than 45 m Ω short circuit protection: to protect and restore must charge
- Charging voltage:Â 12.6 V – 13 V
- The protection plate size of 50 * 16 * 1.0 mm; Components for the S – 8254 aa protection chip and AO4407 * 4;
Package Include:
- 1X 3S BMS 20A Li-ion Lithium Battery 18650 PCB Charger Protection Board in Pakistan
Additional information
| Weight | 0.1 kg |
|---|
