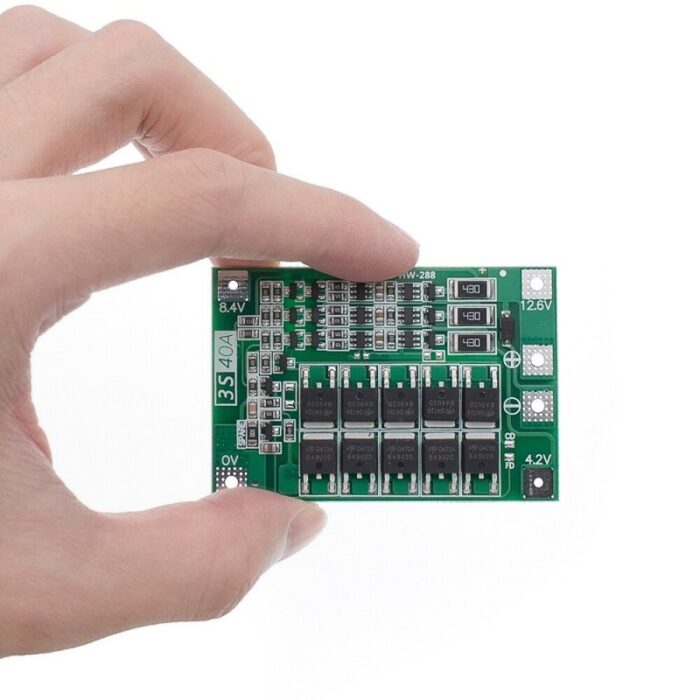

3S 40A BMS 11.1V 12.6V 18650 Lithium Battery Protection Board with 100mA Balancing Feature in Pakistan
The 3 Series 40A 18650 Lithium Battery Protection Board 11.1V 12.6V with Balance for Drill Motor Lipo Cell Module comes with recovery function-AUTO Recovery and Integrated 10 low load resistance MOS tube. It provides a continuous discharge of 40A, 100mA balanced current, for electric drill/sprayer/LED lights/low power inverter. (if the cooling environment is not good, please reduce the load current use).The Scope of Nominal voltage of 3.6V, 3.7V lithium battery (including 18650,26650, a polymer lithium battery) where Charging voltage can be range between 16.8V to 18.1V The board operates smoothly with Continuous charge current of (upper limit): 20A. The balanced version is suitable for starting current below 80A, power 135W below the drill (with balance).
₨380
The 3 Series 40A 18650 Lithium Battery Protection Board 11.1V 12.6V with Balance for Drill Motor Lipo Cell Module comes with recovery function-AUTO Recovery and Integrated 10 low load resistance MOS tube. It provides a continuous discharge of 40A, 100mA balanced current, for electric drill/sprayer/LED lights/low power inverter. (if the cooling environment is not good, please reduce the load current use).The Scope of Nominal voltage of 3.6V, 3.7V lithium battery (including 18650,26650, a polymer lithium battery) where Charging voltage can be range between 16.8V to 18.1V The board operates smoothly with Continuous charge current of (upper limit): 20A. The balanced version is suitable for starting current below 80A, power 135W below the drill (with balance).
Specification of 3S 40A BMS 11.1V 12.6V 18650 Lithium Battery Protection Board With Balancing Feature:
- Battery:3 Cell
- Overcharge detection voltage (V):4.25 ± 0.025
- Over-discharge detection voltage (V):2.50 ± 0.08
- Over current Protection (A):40
- Working current (A):20
- Operating Temperature (°C):-40 ~ +85
- Length (mm):60
- Width (mm):41
- Height (mm):3.5
Features of 3S 40A BMS For 12.6V 18650 Lithium Battery Protection Board:
- 3S 11.1V 12.6V 40A 18650 lithium battery protection board (comes with recovery function-AUTO Recovery).
- Application: Nominal voltage of 3.6V, 3.7V lithium battery (including 18650.26650, a polymer lithium battery).
- Continuous discharge current (upper limit): 40A (if the cooling environment is not good, please reduce the load current use).
- Continuous charge current (upper limit): 20A.
- Suitable for the drills with starting current below 80A, power 135W below.
Package Includes:
- 1 x 3S 40A BMS 11.1V 12.6V 18650 Lithium Battery Protection Board with 100mA Balancing Feature in Pakistan
Based on 0 reviews
Be the first to review “3S 40A BMS 11.1V 12.6V 18650 Lithium Battery Protection Board with 100mA Balancing Feature in Pakistan”
Related products
-
BMS Circuit
Liitokala Lii-500 Lithium battery Charger in Pakistan
- Input: DC 12V / 2A(min.)
- Charge output: Li-Ion 4.2V 300mA/500mA/700mA/1000mA * 4
- Ni-MH/Cd 1.48V 300mA/500mA/700mA/1000mA * 4
- Charging cut-off voltage: lithium-ion battery 4.2 ± 0.05V
- Discharge output: 500mA cutoff Li-Ion 2.8V/ NiMH 0.9V
- USB output: 5V 1000mA (only with Li-Ion 3.7V battery inserted)
- For battery sizes: diameter 8mm-26mm; height 34mm-71mm
- NiMH/Cd AAA/Micro, AA/Mignon, C/ Bady, Sub- C, A
- Li-Ion 26650, 22650, 18650,18490, 18500,
- 17500, 17355, 16340(RCR123), 14500, 10440
- Dimensions: L*W*H / 162*96*36mm
SKU: SH-258 -
BMS Circuit

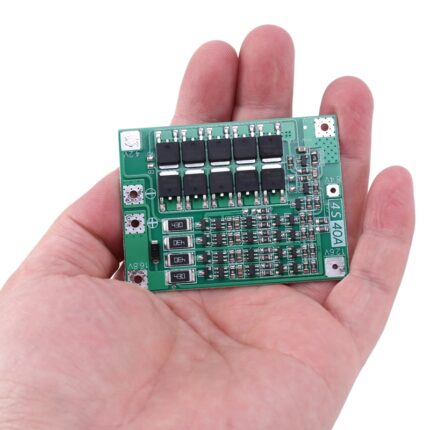

4s BMS 4S 40a BMS Li-ion Battery Protection Board Balanced Version in Pakistan
