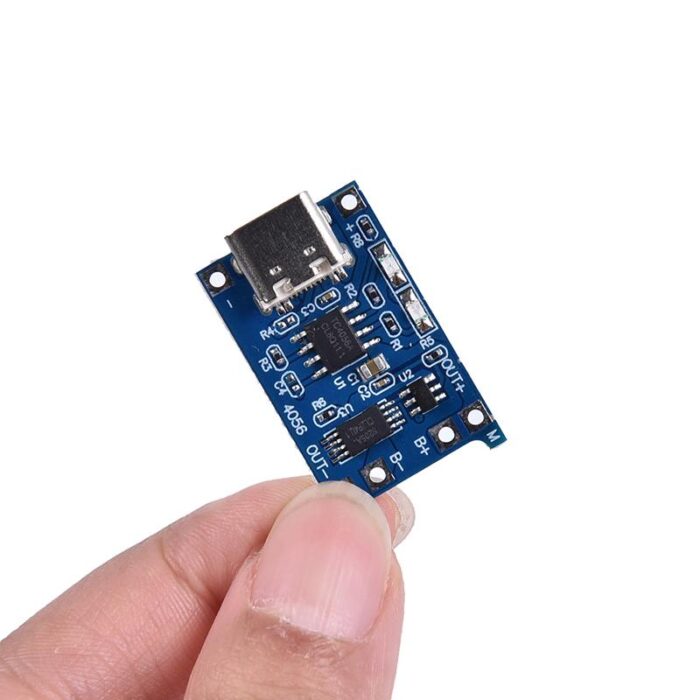

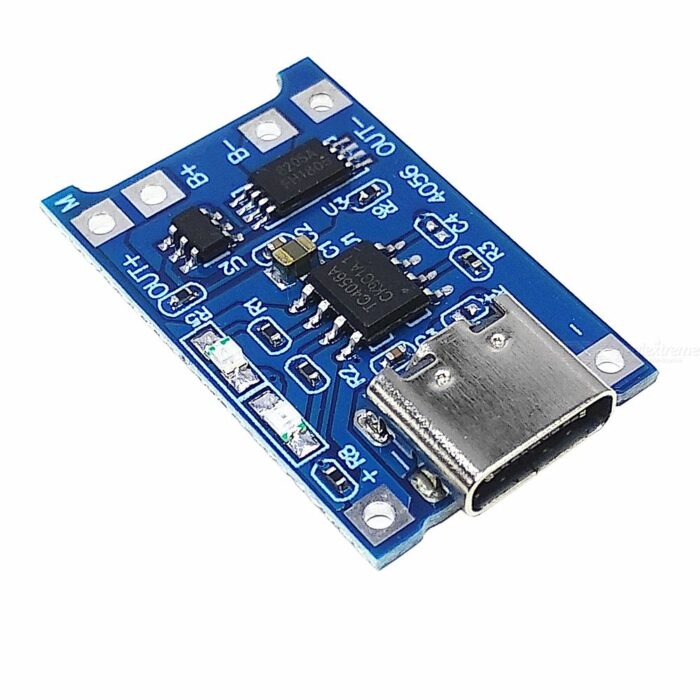

TYPE C TP4056 Lithium Battery Charging Board 1A In Pakistan

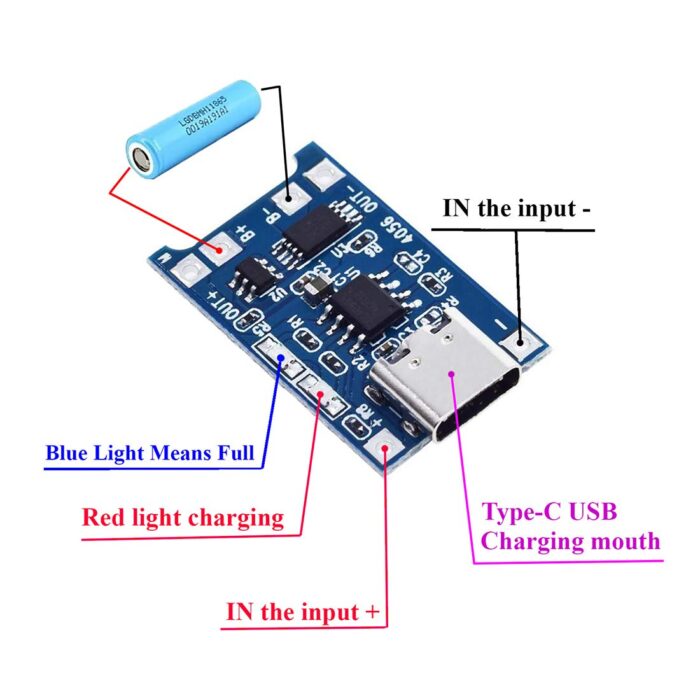

The first time you access the battery, it may no voltage between the output OUT + and OUT-, then access 5V voltage charge your energy can activate the protection circuit, and the battery from the B + B-, then draw a line on the short open also need recharged to activate the protection circuit. Note that the charger must be able to output 1A or more to do when using a mobile phone charger input, or may not charge.

Specification of TYPE C TP4056 Lithium Battery Charging Board 1A:

1. Inputs with Type C female, can be directly input to do with the phone charger rechargeable lithium battery,
2. And still retains the input voltage wiring pads, can be very convenient DIY
3. Input voltage: 5V
4. Charging cut-off voltage: 4.2V ± 1%
5. Maximum charge current: 1000mA
6. Battery over-discharge protection voltage: 2.5V
7. Battery overcurrent protection current: 3A

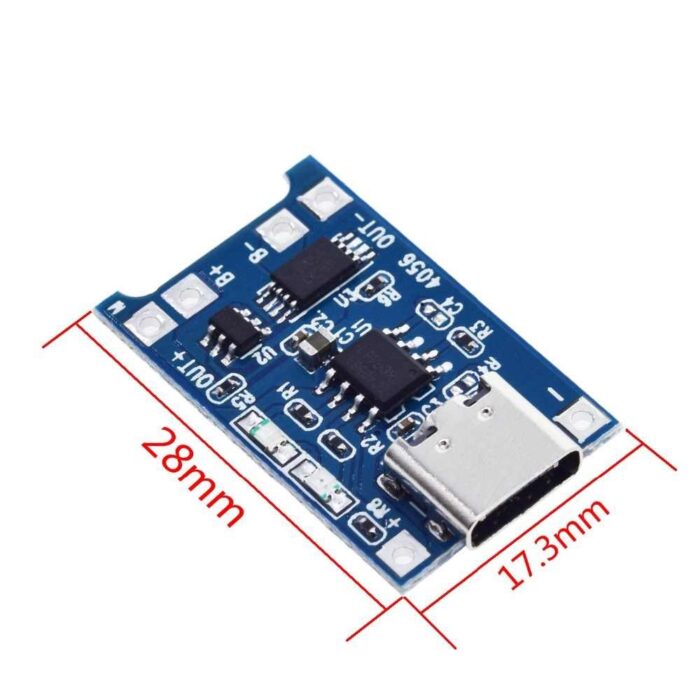

8. Board size: 2.6 * 1.7CM

Package Include:

• 1 x TYPE C TP4056 Lithium Battery Charging Board 1A In Pakistan
