XL4015 Step-Down Buck Charging Board DC 0.8-30V to 5-32V In Pakistan

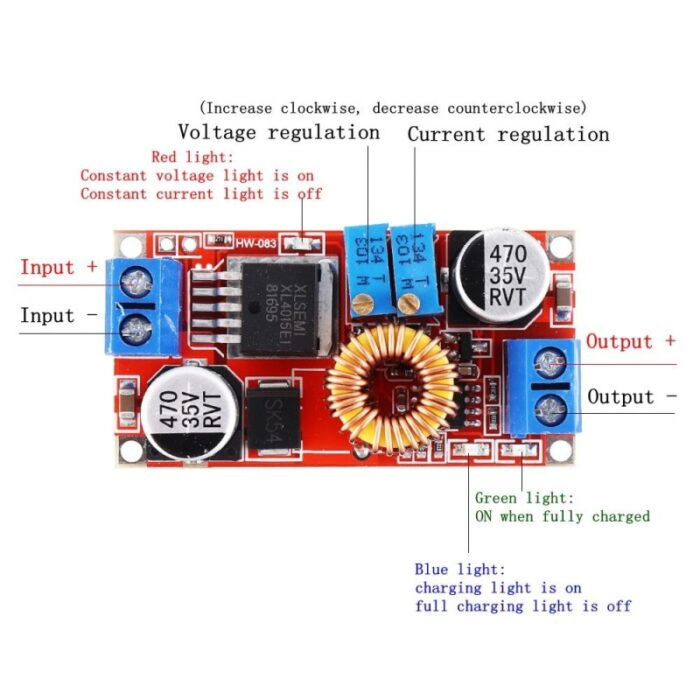

XL4015 Step-Down Buck Charging Board used to charge Lithium Batteries.This linear module has a constant voltage and constant current function (CC CV). and it has a good performance.When you use it as a charger. This module uses good chip as the core and it is stable. Its ripple is also low to 50mV.
₨350
XL4015 Step-Down Buck Charging Board used to charge Lithium Batteries.This linear module has a constant voltage and constant current function (CC CV). and it has a good performance.When you use it as a charger. This module uses good chip as the core and it is stable. Its ripple is also low to 50mV.
Specification of XL4015 Step-Down Buck Charging Board DC 0.8-30V to 5-32V:
- Size: 51 * 26.3 * 14 (L * W * H) (mm)
- Operating temperature: -40 ° to + 85 °
- Voltage regulation: ± 2.5%
- Ripple output: 50mV (max) 20 M bandwidth
- Switching frequency: 300 KHz
- Conversion efficiency: 95% (the highest)
- Output current: adjustable maximum 5A
- Ouput Voltage:0.8V-30V
- Input Voltage: 5V-32V
Package Include:
- 1 x XL4015 Step-Down Buck Charging Board DC 0.8-30V to 5-32V In Pakistan
