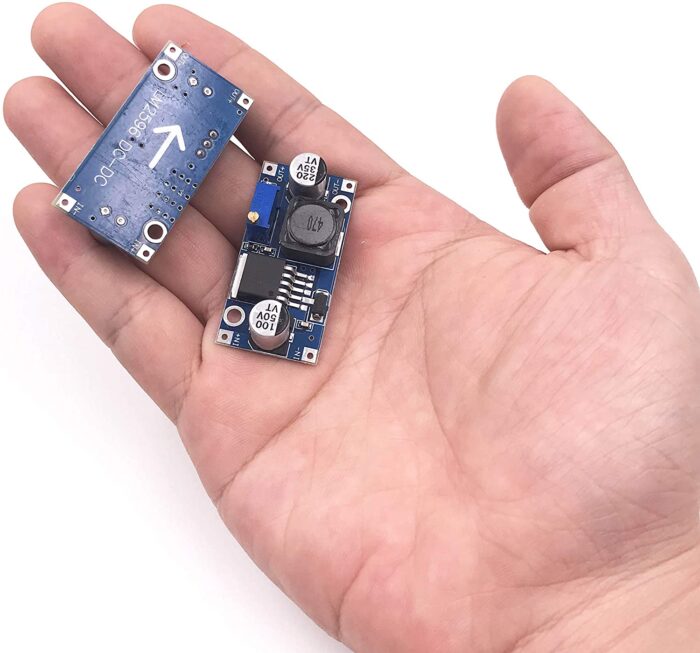

HW-411A LM2596 DC To Dc Buck Converter Step Down Module In Pakistan
LM2596 DC-DC Buck Converter Step Down Module Power Supply is a step-down(buck) switching regulator. LM2596 Buck is capable of driving a 3-A load with excellent line and load regulation. These devices are available in fixed output voltages of 3.3 V, 5 V, 12 V, and an adjustable output version. The LM2596 Stepdown module is operating at a switching frequency of 150kHz, thus allowing smaller sized filter components than what would be required with lower frequency switching regulators
₨140 ₨150
LM2596 DC-DC Buck Converter Step Down Module Power Supply is a step-down(buck) switching regulator. LM2596 Buck is capable of driving a 3-A load with excellent line and load regulation. These devices are available in fixed output voltages of 3.3 V, 5 V, 12 V, and an adjustable output version. The LM2596 Stepdown module is operating at a switching frequency of 150kHz, thus allowing smaller sized filter components than what would be required with lower frequency switching regulators

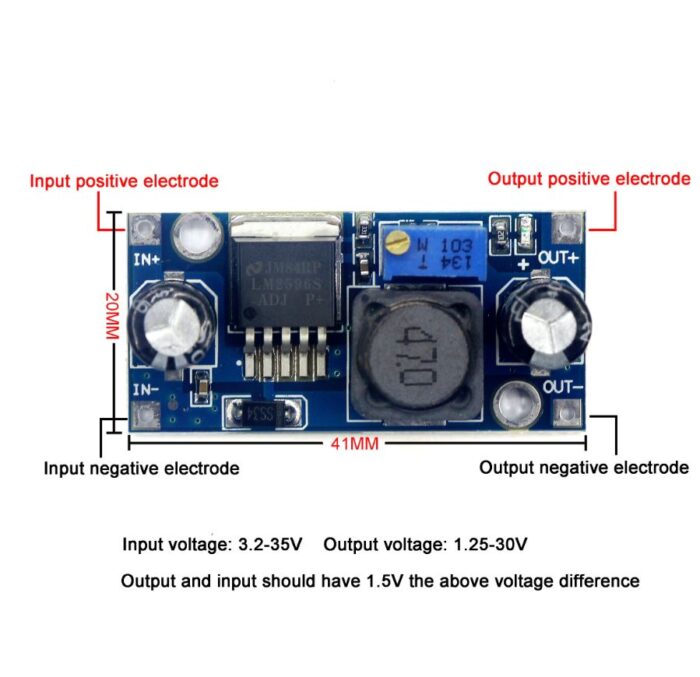

Specification of HW-411A LM2596 DC To Dc Buck Converter Step Down Module:
- Model name: DC-DC LM2596S buck module
- Input voltage:3.2V~46V (recommended for use in 40V)
- Output voltage:1.25V~35V
- Output current:3A (maximum)
- Conversion efficiency:92% (highest)
- Output ripple:<30mV
- Switching frequency:65KHz
- Working temperature:-45 ~ +85

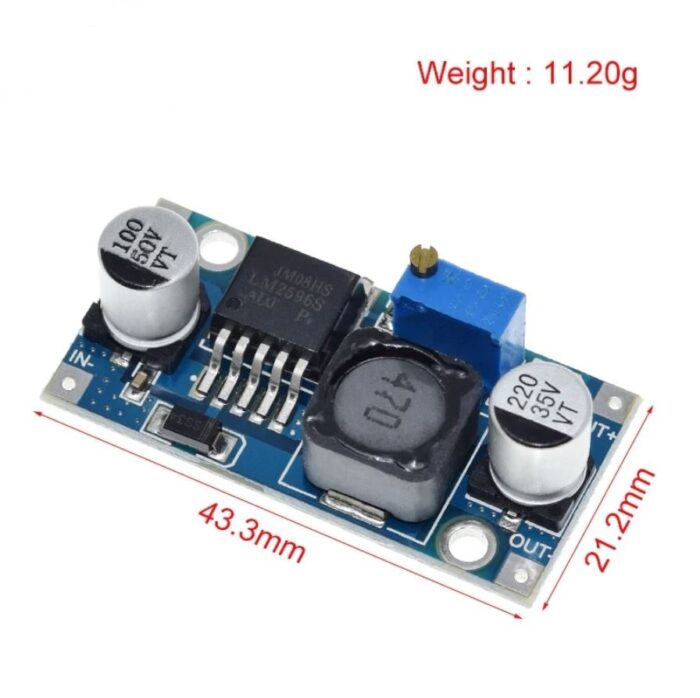

- Dimension:21mm * 43mm * 14mm (length * width * height)
Package Include:
- 1 x HW-411A LM2596 DC To Dc Buck Converter Step Down Module In Pakistan
Based on 0 reviews
Be the first to review “HW-411A LM2596 DC To Dc Buck Converter Step Down Module In Pakistan”
Related products
-
Voltage Regulator Module

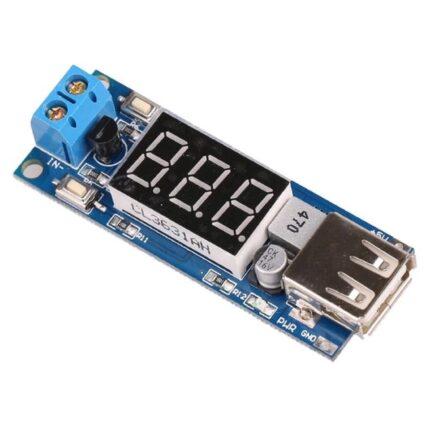

DC To DC 2A USB Charger 4.5-40V To 5V Step-down Buck Converter Voltmeter Module
Voltage Regulator ModuleDC To DC 2A USB Charger 4.5-40V To 5V Step-down Buck Converter Voltmeter Module
The Buck Regulator module converts an input of 4.5-40V into a very stable 5V 2A output. The Step-Down Voltmeter device features a USB port through which you can charge your phone. While charging your device please consider that the output of this device is regulated at 5V 2A. Simply connect this device to the power supply, the voltage can be detected in real-time. When you need the phone, IPAD, MP3, and other digital products to charge, click the “Output Enable” button, then the USB power indicator lights up and Variable Power Supply will start supplying 5V 2A at its output.
SKU: SH49 -
Voltage Regulator Module

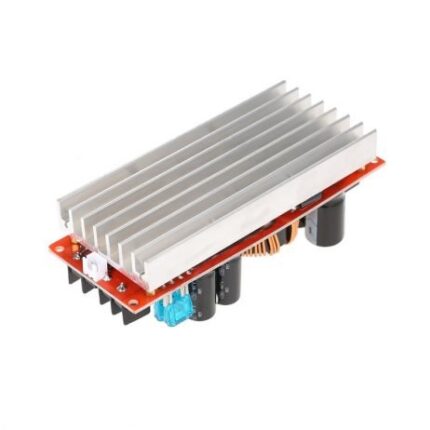

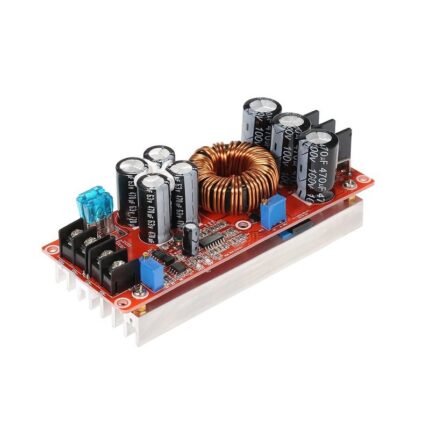

1200W 20A DC Converter Boost Step-up Power Supply Module IN 8-60V OUT 12-83V
