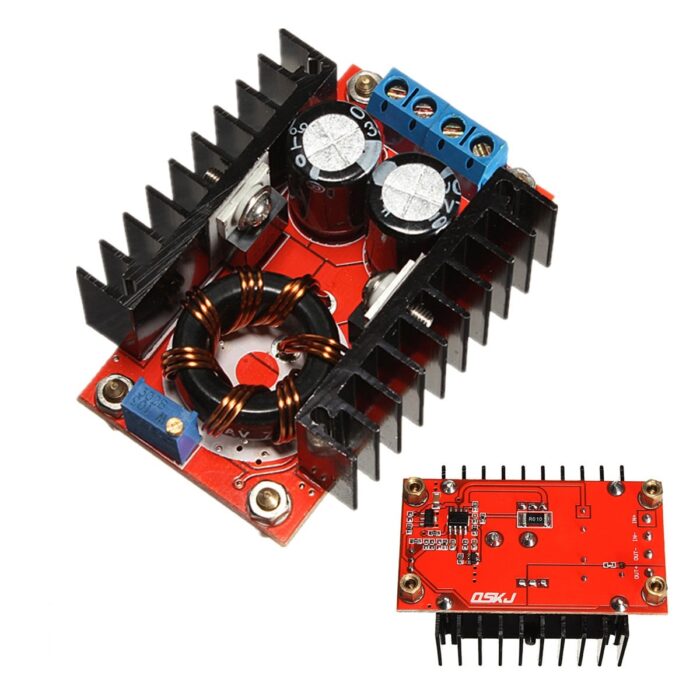

150w DC To DC Boost Converter 10 32v To 12 35v 6a Step Up Power Supply Module

This 150W DC-DC Boost Converter 10-32V to 12-35V module allows you to step up an input voltage as low as 10V and set the output to 12V-35V.  The output voltage will be higher than the input voltage. The boost converter design is based on popular Texas Instrument’s UC3844 current mode PWM controller chip.

550

This 150W DC-DC Boost Converter 10-32V to 12-35V module allows you to step up an input voltage as low as 10V and set the output to 12V-35V.  The output voltage will be higher than the input voltage. The boost converter design is based on popular Texas Instrument’s UC3844 current mode PWM controller chip.

Specification of 150w DC To DC Boost Converter 10 32v To 12 35v 6a Step Up Power Supply Module:

  1. Input Voltage: 10v – 32v DC
  2. Output Voltage: 12v – 35v DC
  3. Output Current: 6A MAX
  4. Input Current: 10A (MAX)
  5. Output Ripple: 2% MAX
  6. Working Temperature: Industrial – 40C to +85C (Environmental temperature, more than 40C, reduce load wattage or enhance cooling)
  7. Full-Load temperature: 45 degrees.
  8. No-load current: 25mA typical.
  9. Voltage regulation: ± 0.5%.
  10. Load regulation: ± 0.5%.
  11. Dynamic response speed: 200uS 5%.
  12. Short circuit protection: None (Please Install fuses and protection circuits at the Input port.)
  13. Input Reverse Polarity Protection: None (Please Series diode at the input port.)

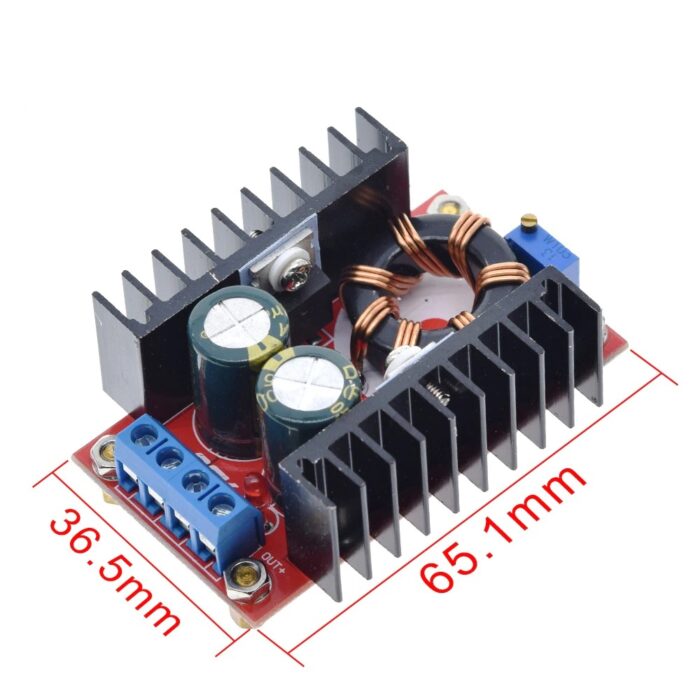

  14. Size: 2.60 in (L),  1.85 in (W) , 1.1 in (H)
  15. Weight: 2.30 oz (66 g)

150w DC To DC Boost Converter 10 32v To 12 35v 6a Step Up Power Supply Module 150w DC To DC Boost Converter 10 32v To 12 35v 6a Step Up Power Supply Module 150w DC To DC Boost Converter 10 32v To 12 35v 6a Step Up Power Supply Module 150w DC To DC Boost Converter 10 32v To 12 35v 6a Step Up Power Supply Module

Package Include:

  • 1 x 150w DC To DC Boost Converter 10 32v To 12 35v 6a Step Up Power Supply Module
