Description

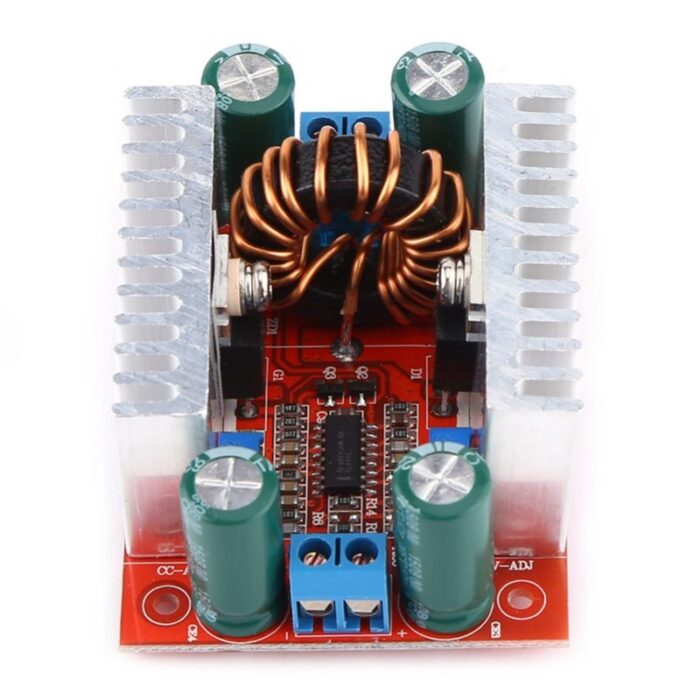

400W 5A DC-DC Step-up Boost Converter Module In Pakistan
Specification of 400W 5A DC-DC Step-up Boost Converter Module:
- Input Voltage: DC8.5V to 50V
- Output Voltage: DC10V to 60V (continuously adjustable, default 19V)
- Max. Input Current: 15A (please enhance heat dissipation if more than 8A)
- Max. Output Current: 12A (related to the input and output voltage difference, the greater voltage difference is, the smaller output current will be. please enhance heat dissipation when current is over 7A)
- Quiescent Current: 10mA(will increase when convert 12V to 20V)
- Constant Current Range: 0.2A to 12A
- Output Power = Input Voltage*Current
- Operating Temperature: -40 to 85(if temperature is too high, please enhance heat dissipation)
- Frequency: 150KHz
- Max. Conversion Efficiency: 96% (Efficiency is related to input/output voltage, current and voltage difference)
- Over Current Protection: Yes (if input current is more than 15A, it will automatic reduce output voltage)
- Reverse Input Protection: No

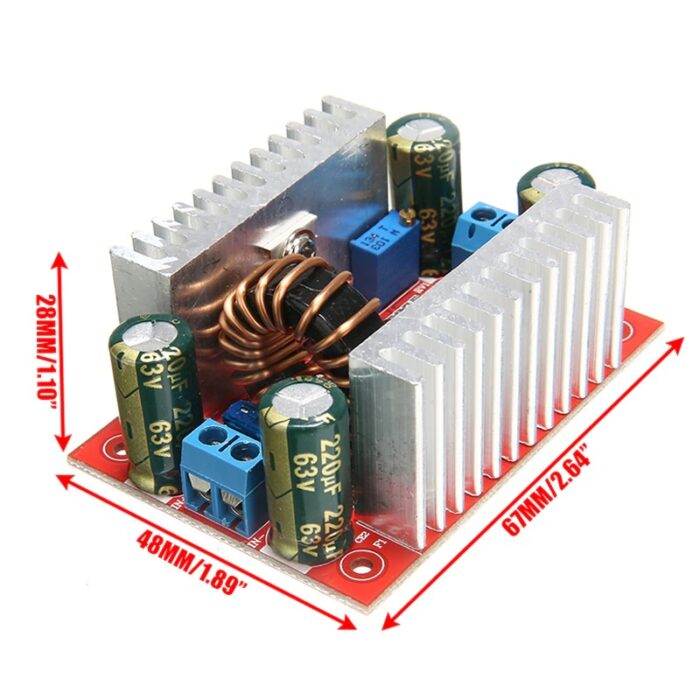

- Size: 67 x 48 x 28mm / 2.63 x 1.89 x 1.1″
Package Include:
- 1 x 400W 5A DC-DC Step-up Boost Converter Module In Pakistan
Additional information
| Weight | 0.2 kg |
|---|
