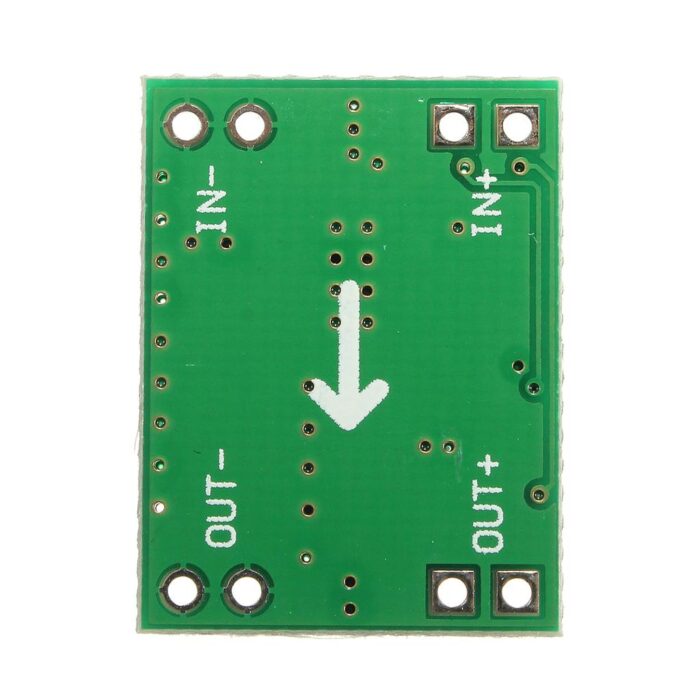

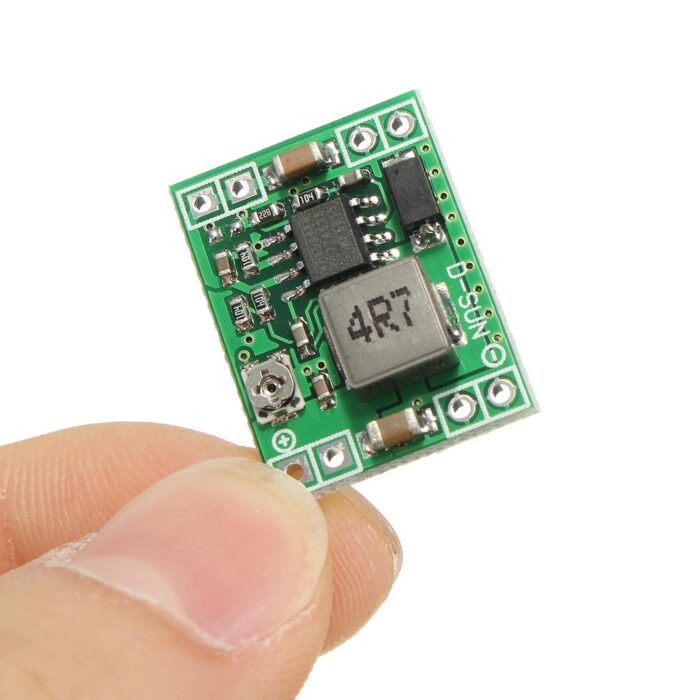

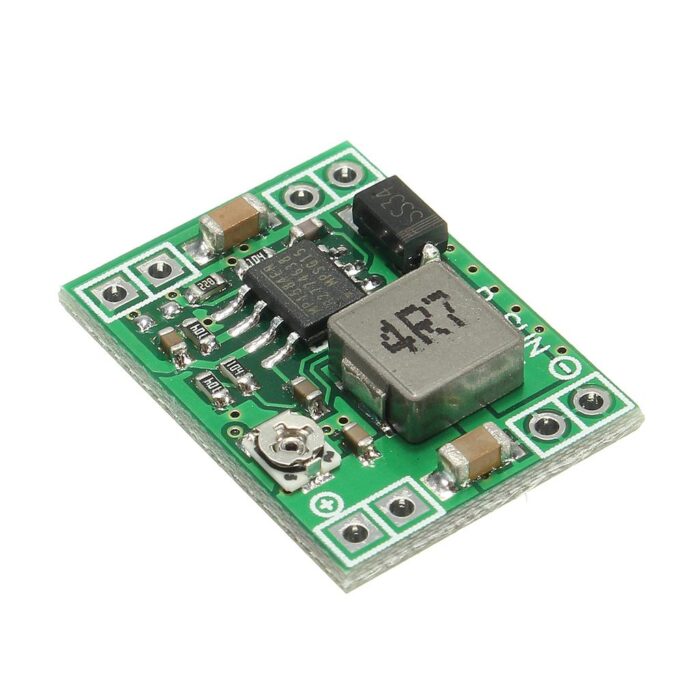

Mini MP1584EN DC-DC BUCK Adjustable Step Down Module In Pakistan
₨150
Mini MP1584EN DC-DC BUCK Adjustable Step Down Module 4.5V-28V Input 0.8V-20V Output The MP1584 is a high frequency step-down switching regulator with an integrated internal high-side high voltage power MOSFET.
Description
Mini MP1584EN DC-DC BUCK Adjustable Step Down Module 4.5V-28V Input 0.8V-20V Output The MP1584 is a high frequency step-down switching regulator with an integrated internal high-side high voltage power MOSFET.
Specification of Mini MP1584EN DC-DC BUCK Adjustable Step Down Module:
- Model:MP1584
- Name:DC-DC step-down module
- Input Voltage: 4.5V ~ 28V
- Output voltage: 0.8V ~ 20V
- Output Current: 3A (Max)
- Conversion efficiency: 96% (maximum)
- Output Ripple: <30mV
- Switching frequency: 1.5MHz (highest) typically 1MHz
- Operating Temperature: -45°C ~ +85°C
- Size: 22mm * 17mm (L * W )
Package Include:
- 1 x Mini MP1584EN DC-DC BUCK Adjustable Step Down Module In Pakistan
Additional information
| Weight | 0.1 kg |
|---|
