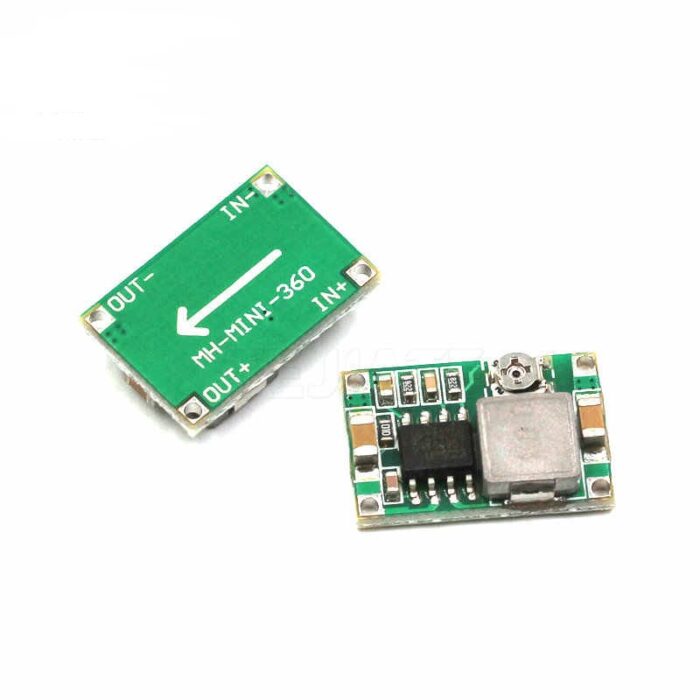

MP2307 Mini 360 DC to DC Step Down Buck Converter Module In Pakistan

One of our engineers came by and showed off one of his latest finds, the Mini-360 DC-DC buck converter. He needed a small and efficient voltage-reduction circuit for a remote application, and this unit tests out quite well. Inexpensive enough to be worth having a few in the toolbox for emergency voltage regulation

Specification of MP2307 Mini 360 DC to DC Step Down Buck Converter Module:

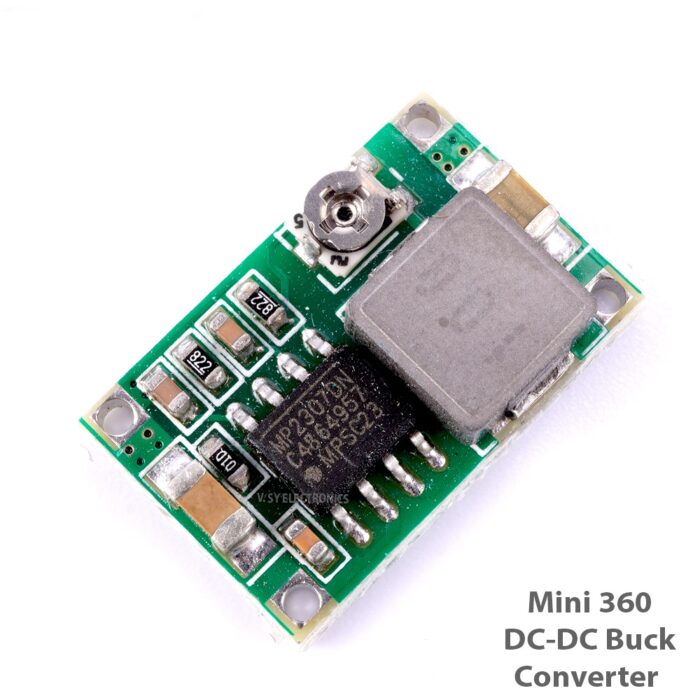

1. MPS MP2307DN buck regulator IC
2. 4.75 – 23VDC input voltage
3. 1.0 – 17VDC selectable output voltage
4. 3A surge current, 1.8A continuous rated current
5. Maximum conversion efficiency of 95% (5Vin, 3.3Vout ~200mA output)
6. 340kHz switching frequency
7. 30mV no-load output ripple
8. 0.5% load regulation
9. 2.5% voltage regulation
10. -40 to +85°C operational temperature range
11. Built-in 160°C thermal shutdown

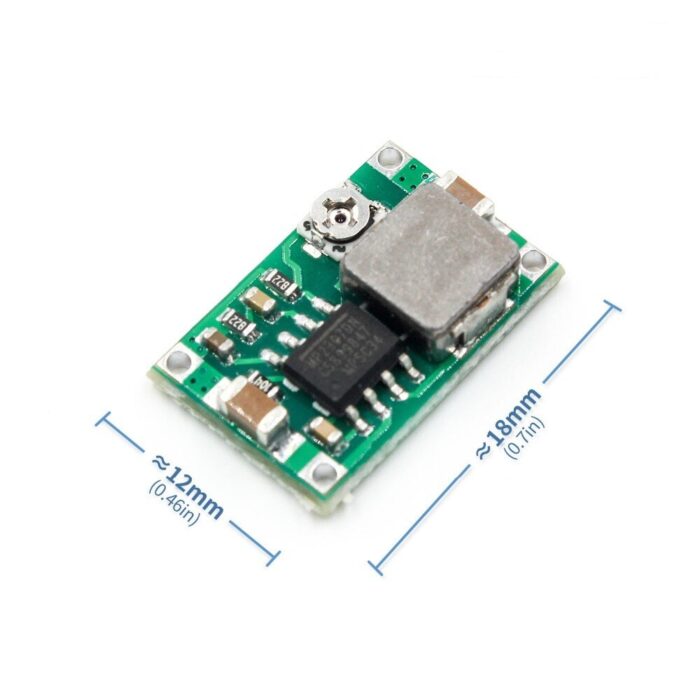

12. 17x11x3.8mm (0.67×0.43×0.15″)

Package Include:

• 1 x MP2307 Mini 360 DC to DC Step Down Buck Converter Module In Pakistan
