Type C USB 2/3S BMS 15W 8.4V 12.6V 1.5A Lithium Battery Charging Boost Module With Balanced With Indicator
₨320
- Output overcurrent, overvoltage, short circuit protection
- Support QC fast charge
- 15W synchronous switching boost charging Boost charging
- QC Fast charge with 2s and 3s Variant
Description

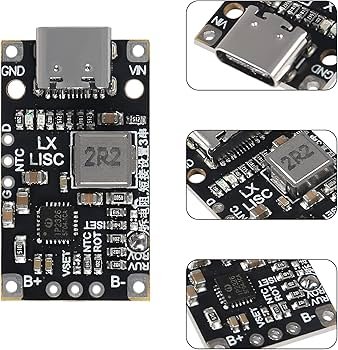

Lithium Battery Charger 2S 3S Fast Charger
Support QC fast charge Lithium Battery Charger 2S 3S Fast charging 15W synchronous switching boost charging
Boost charging
efficiency 94%
Can be set to charge 2 or 3 strings of lithium batteries
2 strings with balanced charging
Adjustable charging current
Input overvoltage and under voltage protection
Adjustable charging timeout protection
Output overcurrent, overvoltage, short circuit protection
Lithium Battery Charger 2S 3S
- 1.Input : type-c port or wire input.
- Output: support 2 strings and 3 strings, the battery needs to add a protection plate.
- 2.Current setting: two parallel current Settings Streams default to 100K(0.9A) and 180K (0.5A). The formula is current
- 3.Battery charging voltage setting: the default single string is 4.2V, general battery that’s the same value, you don’t have to change it.
- Check the RVSET Settings table, just set the board VSET resistance.
- 4.LED indicator light: normal red light is on, charging process blue light.
- When the indicator is full, the blue indicator turns off and blinks when an exception is detected.
