5V 8 Channel Relay Module For Arduino In Pakistan
₨800

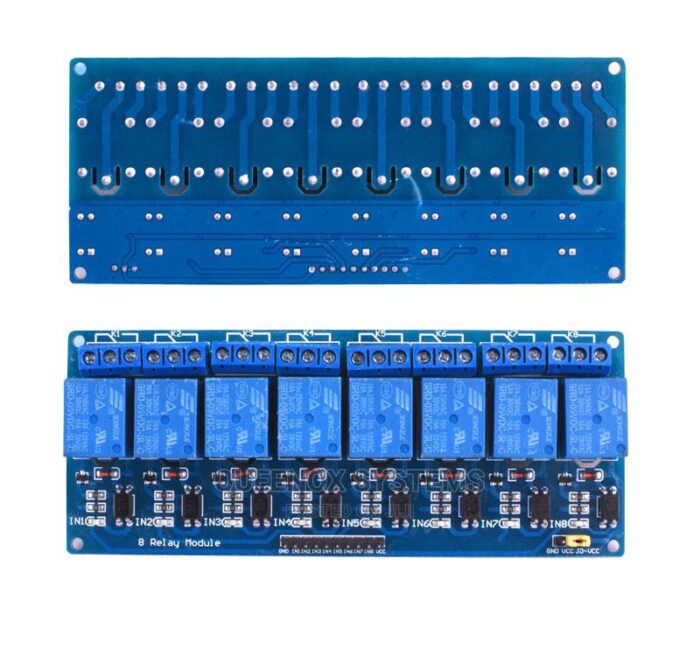

This product is a 8-channel relay module board with LED indicators, It can be controlled by microcontrollers such as Arduino, AVR, PIC, ARM any other microcontroller operating at 5V.
Description
This product is a 8-channel relay module board with LED indicators, It can be controlled by microcontrollers such as Arduino, AVR, PIC, ARM any other microcontroller operating at 5V.
Specification of 5V 8 Channel Relay Module For Arduino:
- Working voltage: 5V
- Channel: 8Â channel
- Item size: approx. 135mm (L) x 55mm (W) x 20mm (H)
- Item weight: 56g (aprox)
- Imported high quality double sided compact PCB.
- Opto-Isolated inputs, means your digital electronics is safe and noise free.
- This relay module is 5V active low.
- It is an 8-channel relay interface board, which can be controlled directly by a wide range of microcontrollers such as Arduino, AVR, PIC, ARM, PLC, etc.
- It is also able to control various appliances and other equipment with large current.
- Relay output maximum contact is AC250V 10A and DC30V 10A.
- Standard interface can be directly connected with microcontrollers.
- Red working status indicator lights are conducive to the safe use.
- Widely used for all MCU control, industrial sector, PLC control, smart home control.
Package Include:
- 1 x 5V 8 Channel Relay Module For Arduino In Pakistan
Additional information
| Weight | 0.2 kg |
|---|
