DS18B20 Waterproof Temperature Sensor Digital Temperature Probe In Pakistan
These temperature sensors work great with any microcontroller using any single digital pin. We can also connect multiple ones to the same pin. Each one has a unique 64 bits ID burn. It is useable with 3 to 5 volts systems. There is one downside of this sensor is they use the Dallas 1-wire protocol, and which is somewhat complex. This protocol requires a bunch of code to parse out the communication. When you are using this temperature sensor with a microcontroller put a 4.7K resistor to the sensing pin.
₨280

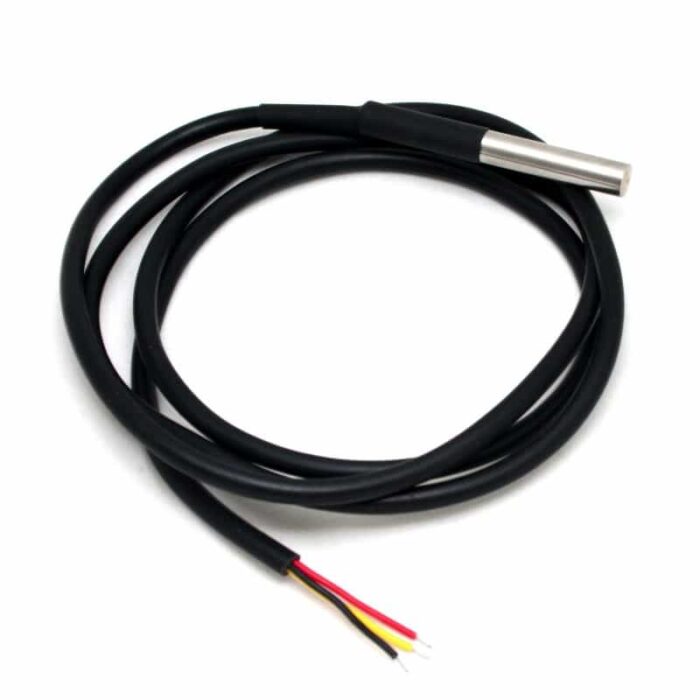

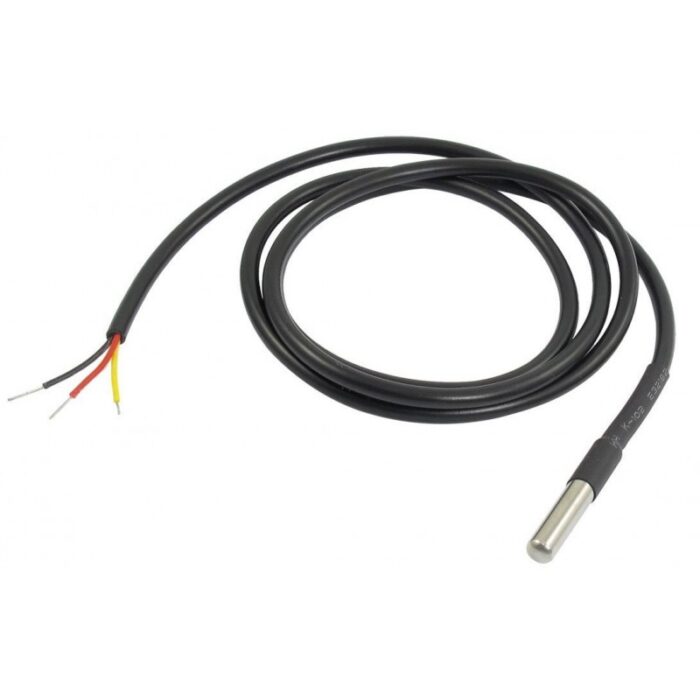

This is the DS18B20 Water Proof Temperature Probe which is based on the DS18B20 sensor. It is very handy when you need to measure something far away, or in wet conditions. Because they are digital, you don’t get any signal degradation even over long distances. These 1-wire digital temperature sensors are fairly precise (±0.5°C over much of the range) and can give up to 12 bits of precision from the onboard digital-to-analog converter. They work great with any microcontroller using a single digital pin, and you can even connect multiple ones to the same pin, each one has a unique 64-bit ID burned in at the factory to differentiate them. Usable with 3.0-5.0V systems. When using with a microcontroller put a 4.7k resistor to the sensing pin, which is required as a pull-up from the DATA to VCC line.
Specification of DS18B20 Waterproof Temperature Sensor Digital Temperature Probe:
- Model: DS18B20
- Operating Voltage (VDC): 3 ~ 5.5
- Operating Temperature (°C): -55 to 125
- Accuracy: ±0.5°C
- Cable Length (Meter): 1
Feature of DS18B20 Waterproof Temperature Sensor Digital Temperature Probe Thermal Probe:
- Each pin uses a heat-shrinkable tube to prevent short circuits, internal sealing glue, waterproof, and moistureproof.
- Stainless steel tube encapsulation waterproof moistureproof prevents rust.
- Stainless steel tube 6mm diameter by 30mm long
- Contains DS18B20 temperature sensor
- 9 to 12-bit selectable resolution
- Uses 1-Wire interface- requires only one digital pin for communication
- Unique 64-bit ID burned into the chip
- Multiple sensors can share one pin
- Temperature-limit alarm system
- Query time is less than 750ms
- Without the external components, the unique single bus.
