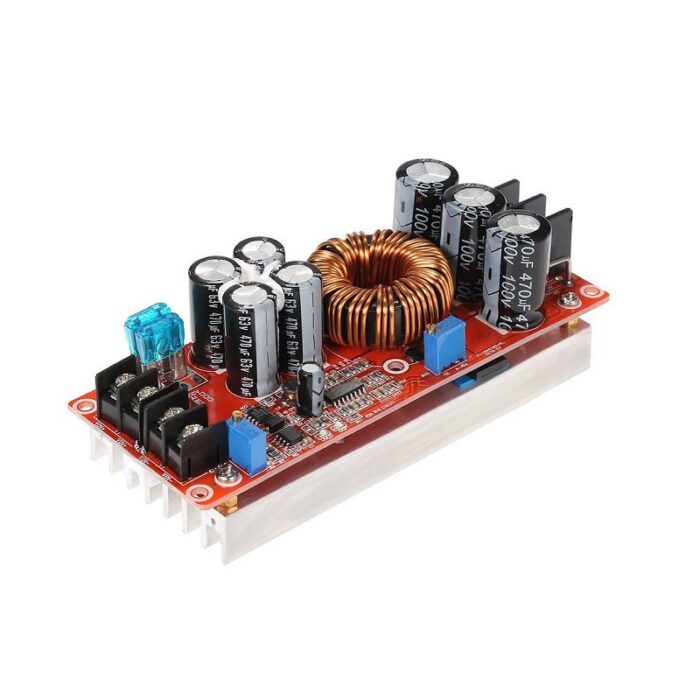

1200W 20A DC Converter Boost Step-up Power Supply Module IN 8-60V OUT 12-83V
Original price was: ₨3200.₨2600Current price is: ₨2600.
Product details of 1200W 20A High Power DC-DC Boost Converter Step-up Supply Module with Heat Sink Input 8-60V Output 12-83V Adjustable for Bicycle Electric Bikes Car Solar Panel Regulator Rechargeable Lithium Batteries. 20A 1200W DC Converter Boost Step-up Power Supply Module 8-60V to 12-83V.
Description
Product details of 1200W 20A High Power DC-DC Boost Converter Step-up Supply Module with Heat Sink Input 8-60V Output 12-83V Adjustable for Bicycle Electric Bikes Car Solar Panel Regulator Rechargeable Lithium Batteries. 20A 1200W DC Converter Boost Step-up Power Supply Module 8-60V to 12-83V.
Specification of 1200W 20A DC Converter Boost Step-up Power Supply Module IN 8-60V OUT 12-83V:
- Module name: 1200W boost constant current module
- Module properties: non isolated boost module (BOOST)
- Input voltage: 10-60V
- Input current: 20A
- Quiescent operating current: 15mA
- Output voltage: 12-83V continuous adjustable
- Output current: MAX 12A over 20A, please strengthen the
- cooling (with input and output differential pressure, the greater
- the pressure difference between the output current is small)
- Constant current range: 0.3-20A
- Output power: = input voltage  x 10A
- Working temperature: -40~+85 degrees
- Working frequency: 150KHz
- Conversion efficiency: ≤95% (efficiency and input, output voltage,
- current, pressure difference)
- Installation: 4pcs 3mm column
- Connection mode: welding output (please use big current and pure copper wire)

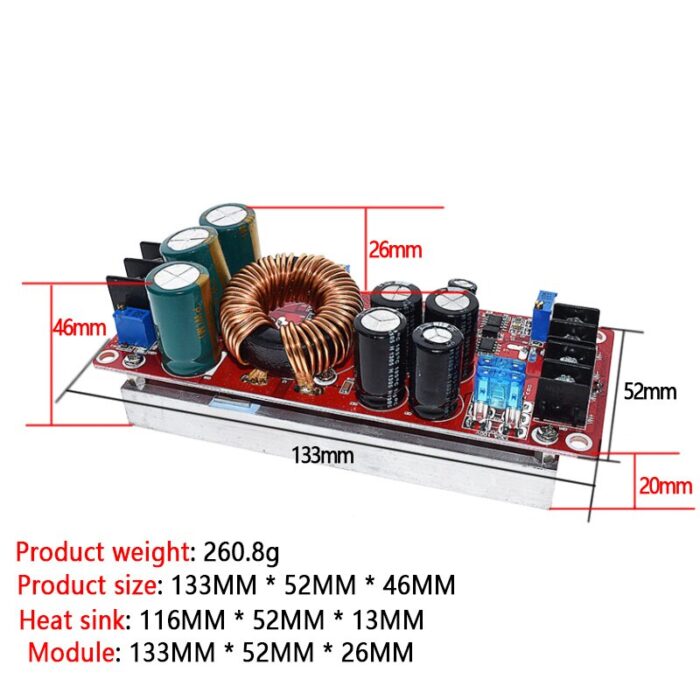

- Module size: 130mmx52mmx46mm(LxWxH)
Package Include:
- 1 x 1200W 20A DC Converter Boost Step-up Power Supply Module IN 8-60V OUT 12-83V
Additional information
| Weight | 0.2 kg |
|---|
Reviews (0)
Shipping & Delivery
MAECENAS IACULIS
Vestibulum curae torquent diam diam commodo parturient penatibus nunc dui adipiscing convallis bulum parturient suspendisse parturient a.Parturient in parturient scelerisque nibh lectus quam a natoque adipiscing a vestibulum hendrerit et pharetra fames nunc natoque dui.
ADIPISCING CONVALLIS BULUM
- Vestibulum penatibus nunc dui adipiscing convallis bulum parturient suspendisse.
- Abitur parturient praesent lectus quam a natoque adipiscing a vestibulum hendre.
- Diam parturient dictumst parturient scelerisque nibh lectus.
Scelerisque adipiscing bibendum sem vestibulum et in a a a purus lectus faucibus lobortis tincidunt purus lectus nisl class eros.Condimentum a et ullamcorper dictumst mus et tristique elementum nam inceptos hac parturient scelerisque vestibulum amet elit ut volutpat.
Related products

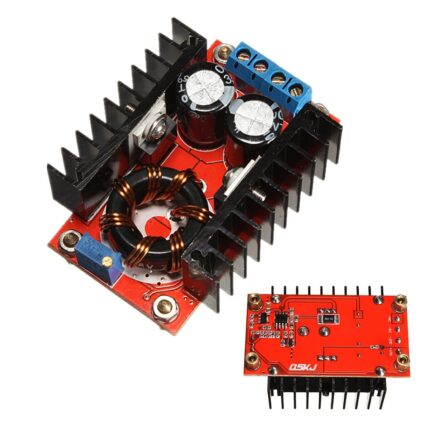

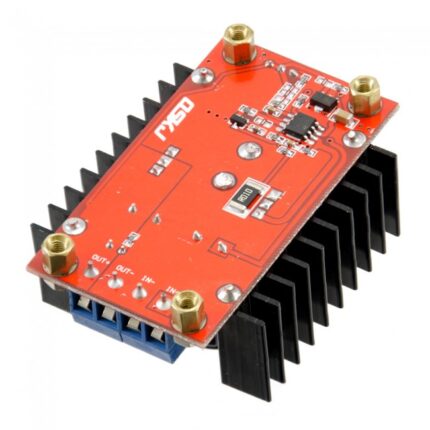

150w DC To DC Boost Converter 10 32v To 12 35v 6a Step Up Power Supply Module
This 150W DC-DC Boost Converter 10-32V to 12-35V module allows you to step up an input voltage as low as 10V and set the output to 12V-35V. The output voltage will be higher than the input voltage. The boost converter design is based on popular Texas Instrument’s UC3844 current mode PWM controller chip.

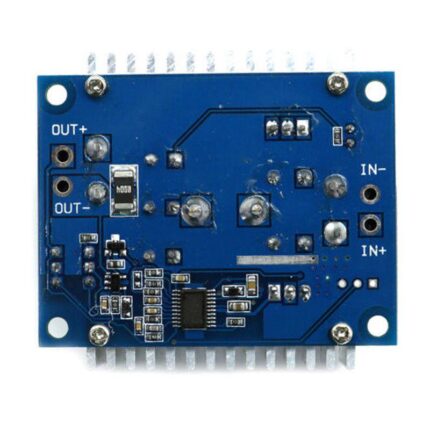

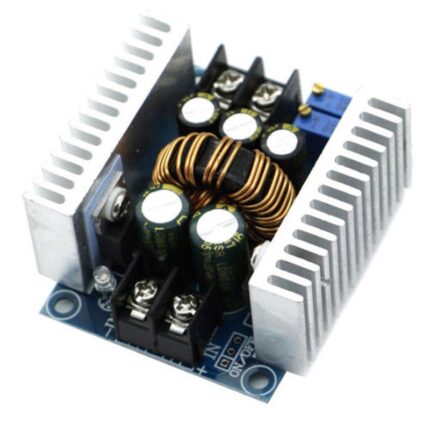

300W 20A Adjustable DC-DC Step Down Buck Converter Voltage Regulator Power Supply Module
The 300W 20A DC-DC Step-down Adjustable Constant Current Module can be used to get adjustable output voltage ranges from 1.2V to 36V. The module provides a wide range of current output up to 20 A. With the heat sink mounted it can easily manage to run high power applications continuously (provided that for continuous high power output you need to use a cooling fan on the heat sink).

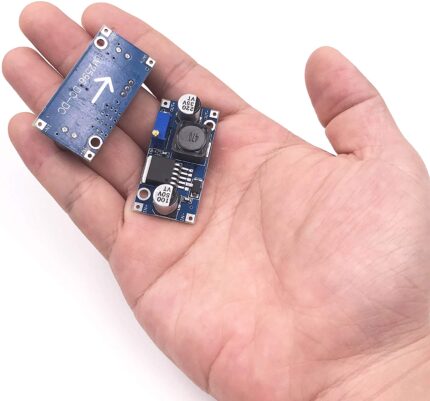

HW-411A LM2596 DC To Dc Buck Converter Step Down Module In Pakistan
LM2596 DC-DC Buck Converter Step Down Module Power Supply is a step-down(buck) switching regulator. LM2596 Buck is capable of driving a 3-A load with excellent line and load regulation. These devices are available in fixed output voltages of 3.3 V, 5 V, 12 V, and an adjustable output version. The LM2596 Stepdown module is operating at a switching frequency of 150kHz, thus allowing smaller sized filter components than what would be required with lower frequency switching regulators
MP2307 Mini 360 DC to DC Step Down Buck Converter Module In Pakistan
One of our engineers came by and showed off one of his latest finds, the Mini-360 DC-DC buck converter. He needed a small and efficient voltage-reduction circuit for a remote application, and this unit tests out quite well. Inexpensive enough to be worth having a few in the toolbox for emergency voltage regulation
MT3608 Booster Converter Power Module DC-DC Step Up Module
This module features the MT3608 2 Amp step up (boost) converter, which can take input voltages as low as 2V and step up the output to as high as 28V. The MT3608 features automatic shifting to pulse frequency modulation mode at light loads. It includes the under-voltage lockout, current limiting, and thermal overload protection.
QC3.0 QC2.0 4 Port USB Fast Quick Charger Circuit Board Buck Module In Pakistan
This 4 Port USB buck fast-charging module integrates the common 5V charging recognition function, which is compatible with 99% of the mobile phones on the market. Compared with products without a charging recognition function, this module can save a lot of charging time by triggering the peak current via fast charging protocol. It features 6~32V input and 3~12V output (default 5V). The voltage can be changed through a fast-charging decoy. Multiple fast-charging protocols are supported.

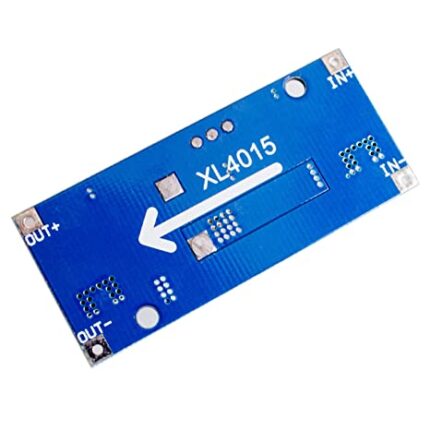

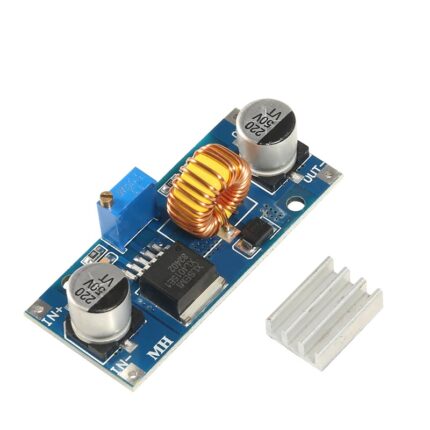

XL4015 Adjustable DC To DC Step Down 5A Buck Converter With Heat sink In Pakistan
