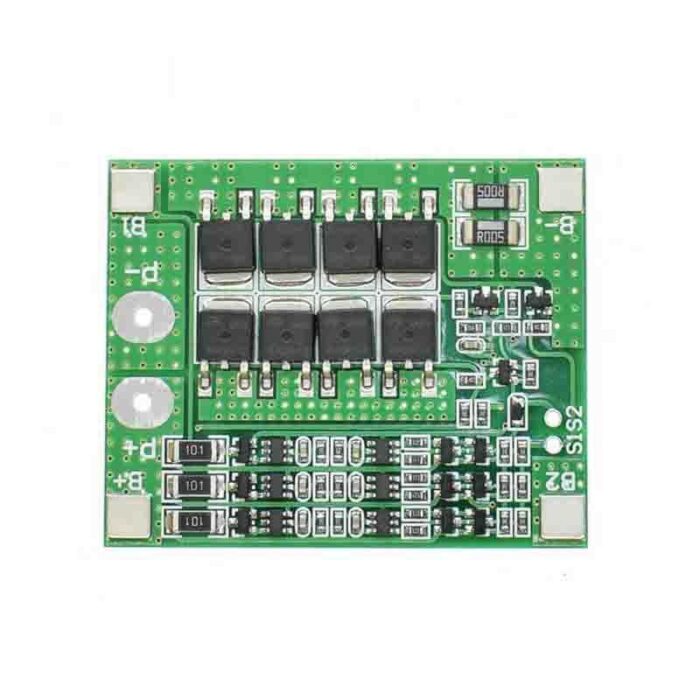

3S 25A BMS Circuit Li-ion Battery Charging Protection 3SJH25A-C In Pakistan
₨325
This Battery BMS 3S 12V 25A Charger 18650 BMS Lithium battery protection board.It is use to protect the battery to prevent the battery from being over-discharged or over-charged during use, resulting in battery damage.
Description
This Battery BMS 3S 12V 25A Charger 18650 BMS Lithium battery protection board.It is use to protect the battery to prevent the battery from being over-discharged or over-charged during use, resulting in battery damage.

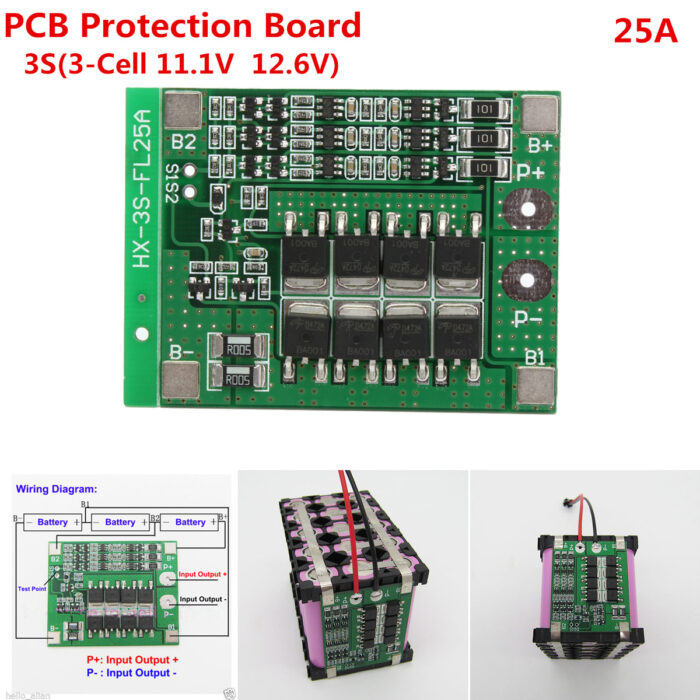

Specification And Feature of 3S 25A BMS Battery Charging Protection For 18650 Cell:
- Overcharge voltage range:Â 4.25-4.35v + 0.05v.
- Overdischarge voltage range:Â 2.3-2.7v + 0.05v.
- Operating current: 0 – 25A.
- Operating temperature: -40 – +50℃.
- Instantaneous current: 35 – 40A.
- Storage condition: -40 – +80℃.
- Quiescent current:Â less than 30uA.
- Balance current: about 40 – 50mA.
- Effective life:Â more than 30000 hours.
- Internal resistance:Â less than 100m ohm.
- Short-circuit protection:Â protection, delayed self recovery.
- Length (mm):56.5
- Width (mm):45
- Height (mm):4
Package Include:
- 1X 3S 25A BMS Circuit Li-ion Battery Charging Protection 3SJH25A-C In Pakistan
Additional information
| Weight | 0.1 kg |
|---|
