Liitokala Lii-500 Lithium battery Charger in Pakistan
₨6500
- Input: DC 12V / 2A(min.)
- Charge output: Li-Ion 4.2V 300mA/500mA/700mA/1000mA * 4
- Ni-MH/Cd 1.48V 300mA/500mA/700mA/1000mA * 4
- Charging cut-off voltage: lithium-ion battery 4.2 ± 0.05V
- Discharge output: 500mA cutoff Li-Ion 2.8V/ NiMH 0.9V
- USB output: 5V 1000mA (only with Li-Ion 3.7V battery inserted)
- For battery sizes: diameter 8mm-26mm; height 34mm-71mm
- NiMH/Cd AAA/Micro, AA/Mignon, C/ Bady, Sub- C, A
- Li-Ion 26650, 22650, 18650,18490, 18500,
- 17500, 17355, 16340(RCR123), 14500, 10440
- Dimensions: L*W*H / 162*96*36mm
SKU:
SH-258
Category: BMS Circuit
Description
Liitokala Lii-500 Lithium battery Charger in Pakistan
Liitokala Lii-500 Lithium battery Charger in Pakistan . Thank you for using our products – Lii – 500. It is a high-end intelligent charger. With 4 channel independent rechargeable battery capacity testing/battery internal resistance. Detection/meter/short circuit protection. Overcharge protection/temperature . 1.65 V to 1.65 V voltage can’t charging function/USB 5 V output. Equally important zero volt battery activation and so on ten big function. At the same time automatically timely monitoring battery charging, test process.
Besides Lii– 500 can be filling a variety of different types of cylindrical lithium-ion battery. And then AA/AAA cylindrical nickel metal hydride batteries. Furthermore Widely used in strong light flashlight, electric tools. Instruments and meters, electronic products such as digital camera battery. Moreover the use of safe. easy to carry, powerful, your home, tourism is a good helper.
Â

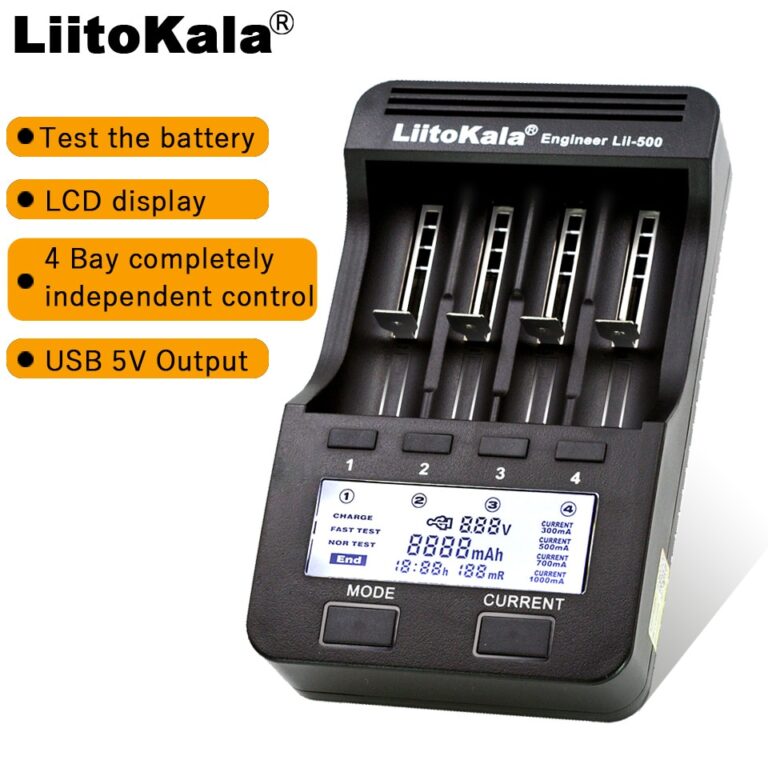

Liitokala Lii-500 Lithium battery Charger in Pakistan Appearance:
1.In addition The charger can only cylindrical lithium ion battery. Nickel metal hydride batteries, not rechargeable lithium iron phosphate batteries;
2. Before use, please refer to the instructions carefully. Pay attention to the recommendations of the rechargeable battery charging current. Do not exceed recommended charging current;
3. Do not use other power adapter;
4. When the charger to charge and discharge may be fever, be careful not to burn.
5. Stop the use, please unplug the power supply, pull out the battery;
6. Only can be used in normal indoor.
7. Lastly this product testing data are for reference only, actual situation, please refer to the professional instrument.
Liitokala Lii-500 Lithium battery Charger in Pakistan Characteristics:
1. 4 kinds of charging current regulating (300 ma / 500 ma ma / 700/700 ma);
2. To different specifications (18650/26650… / AA/AAA) battery charging at the same time;
3. Yet this charger is bright with a LCD display screen independence.
Voltage (V), current (mA) time (h).
The capacity (mAh) resistance (mR) parameters, E eye know;
4. Since the CHARGE mode, channel 4 work independently. Can choose different charging current charging. Pretend to be lithium ion battery, nickel metal hydride batteries.
5. Although fast TEST mode, the four channels can quickly detect battery capacity. Regardless of lithium ion battery. Nickel metal hydride batteries, are to work independently. Rapid detection of battery capacity process consists of two steps (1, 2 with)
6.whereas NOR the TEST mode. the normal TEST battery capacity process consists of three steps :
(1 first on a full charge, discharge again 2, 3 again filled)
 the testing process of battery capacity;
Functionality of the buttons:
- in brief, the charger has six buttons, MODE selection key (MODE). The current selected key (CURREN), the independent choice and view the data key (1234), concise and easy to use;
- Next, press MODE key under any circumstances and keep 3 seconds to change CHARGE (rechargeable) model.
- Â Or FAST TEST, NOR TEST (capacity) model.
- and then push the function corresponding to the light again in 8 seconds.
- Can change detection, in current, independent, pretend to be, capacity 8 seconds.
- After the selected function into the working state.
- Further, In the working status can be gently press (1234).
- Lastly check the current (mA)/capacity (mAh)/voltage (V)/time (h)/internal resistance (mR) reference data.

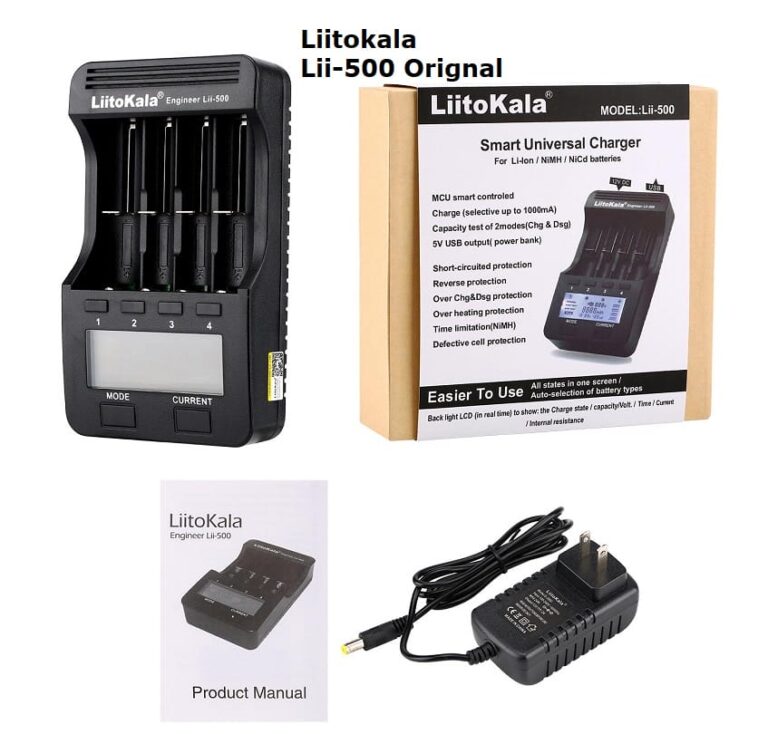

Included:



Additional information
Weight | 0.5 kg |
---|
Reviews (0)
Be the first to review “Liitokala Lii-500 Lithium battery Charger in Pakistan” Cancel reply
Shipping & Delivery


MAECENAS IACULIS
Vestibulum curae torquent diam diam commodo parturient penatibus nunc dui adipiscing convallis bulum parturient suspendisse parturient a.Parturient in parturient scelerisque nibh lectus quam a natoque adipiscing a vestibulum hendrerit et pharetra fames nunc natoque dui.
ADIPISCING CONVALLIS BULUM
- Vestibulum penatibus nunc dui adipiscing convallis bulum parturient suspendisse.
- Abitur parturient praesent lectus quam a natoque adipiscing a vestibulum hendre.
- Diam parturient dictumst parturient scelerisque nibh lectus.
Scelerisque adipiscing bibendum sem vestibulum et in a a a purus lectus faucibus lobortis tincidunt purus lectus nisl class eros.Condimentum a et ullamcorper dictumst mus et tristique elementum nam inceptos hac parturient scelerisque vestibulum amet elit ut volutpat.
Related products

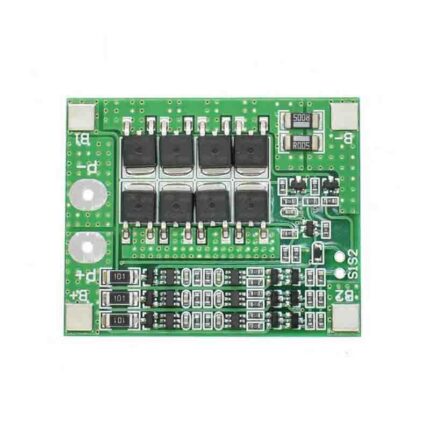

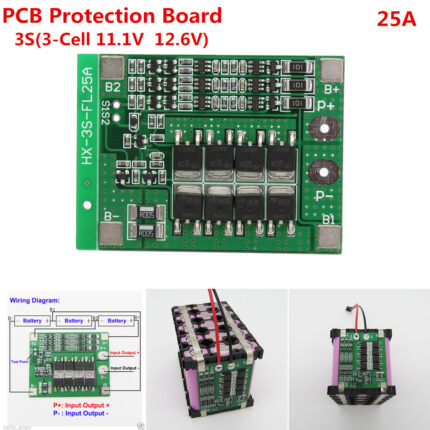

3S 25A BMS Circuit Li-ion Battery Charging Protection 3SJH25A-C In Pakistan
₨325

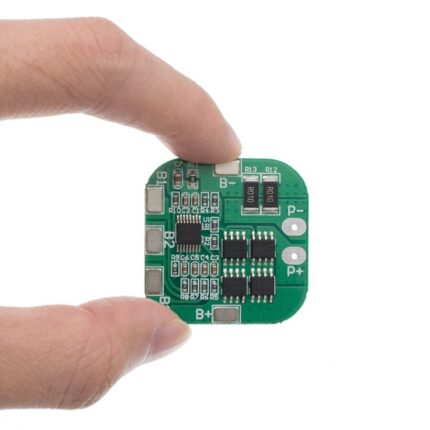

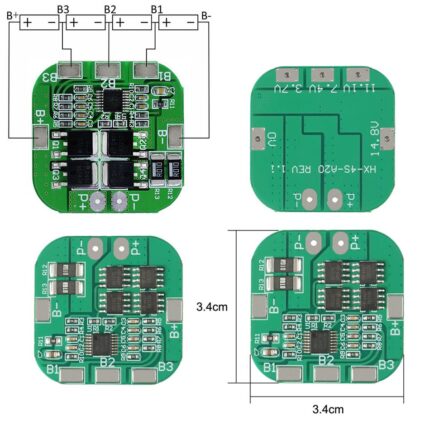

Battery Protection Board 4S 20A 14.8V BMS For 18650 Lithium Ion Cells HX-4S-A20 in Pakistan
