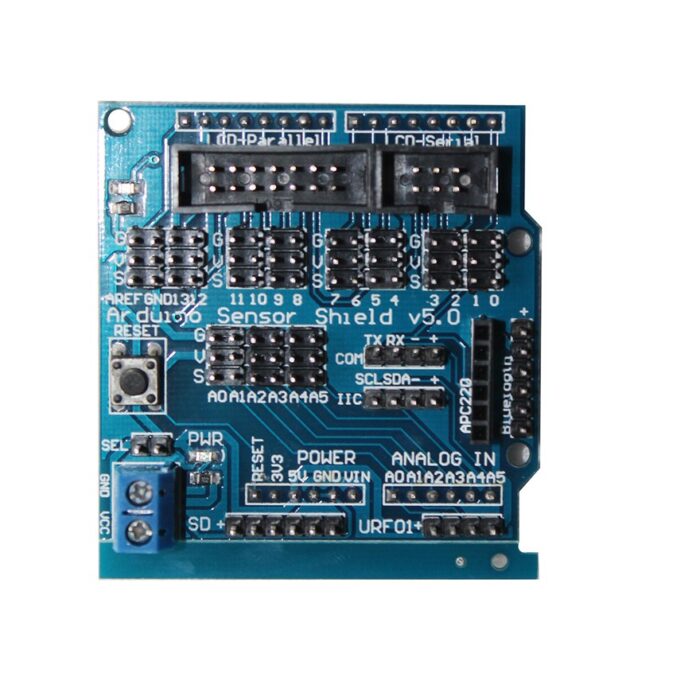

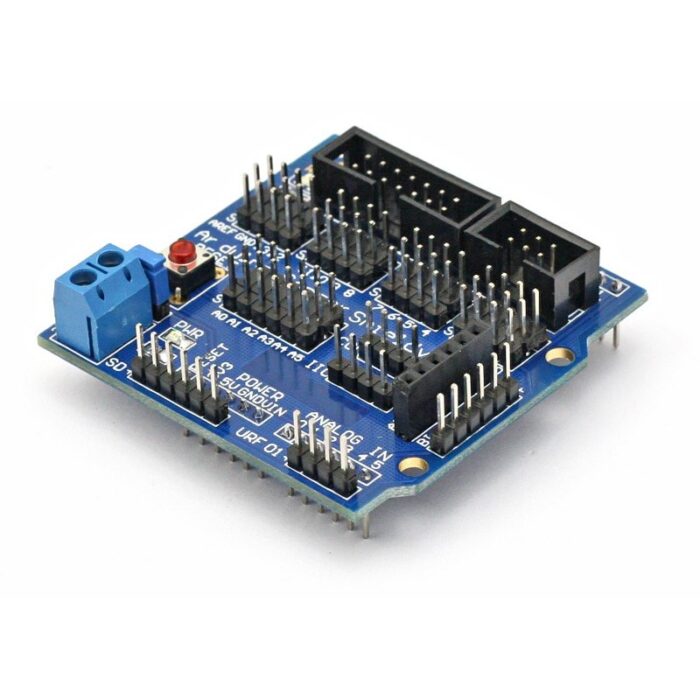

Arduino Sensor Shield V5 Expansion Board For Arduino In Pakistan
The latest Arduino Controller Sensor Shield V5.0 is producted by ALSRobot. This Sensor Shield expansion board to retains the advantages of version V4.0 on the basis of stack design, PCB Immersion Gold processing technology.newly added many kind of interface,for example,IIC interface、32 channels servo motor interface、bluetooth communication module interface、SD Card communication module interface and so on,more convenient. Sensor Shield allows you to connect to various modules like sensors, servos, relays, buttons, potentiometersEach functional module has buckled port with VCC, GND and Output, which has corresponding port on the Sensor Shield, connected with a plain 2.54mm dual-female cable you may start playing already. Buckled brick cables are like cement for bricks, make the connections easier, secure and more professional looking.
₨350
The latest Arduino Controller Sensor Shield V5.0 is producted by ALSRobot. This Sensor Shield expansion board to retains the advantages of version V4.0 on the basis of stack design, PCB Immersion Gold processing technology.newly added many kind of interface,for example,IIC interface、32 channels servo motor interface、bluetooth communication module interface、SD Card communication module interface and so on,more convenient. Sensor Shield allows you to connect to various modules like sensors, servos, relays, buttons, potentiometersEach functional module has buckled port with VCC, GND and Output, which has corresponding port on the Sensor Shield, connected with a plain 2.54mm dual-female cable you may start playing already. Buckled brick cables are like cement for bricks, make the connections easier, secure and more professional looking.

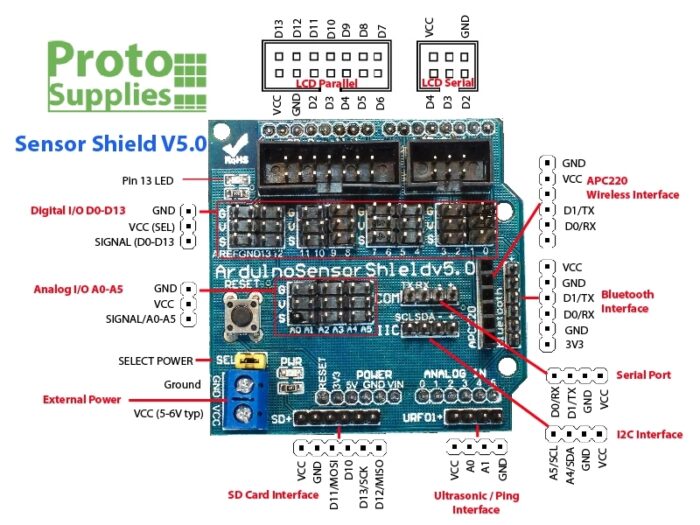

Specification of Arduino Sensor Shield V5 Expansion Board For Arduino:
- PIN13 LED Pilot
- Digital IO Ports D0-D13
- Analog IO Ports A0-A5
- Reset Button
- Power In
- Power LED
- SD Card Interface
- Ultrasonic Interface
- RS232 Interface(TTL)
- Bluetooth Interface
- APC220 Interface
- IIC Interface
- 12864 LCD Parallel Interface
- 12864 LCD Serial Interface
Package Include:
- 1 x Arduino Sensor Shield V5 Expansion Board For Arduino In Pakistan
