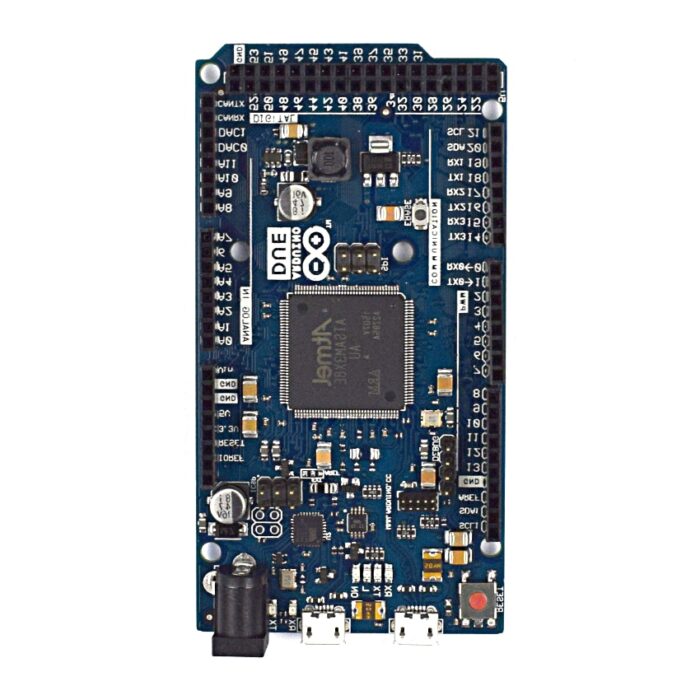

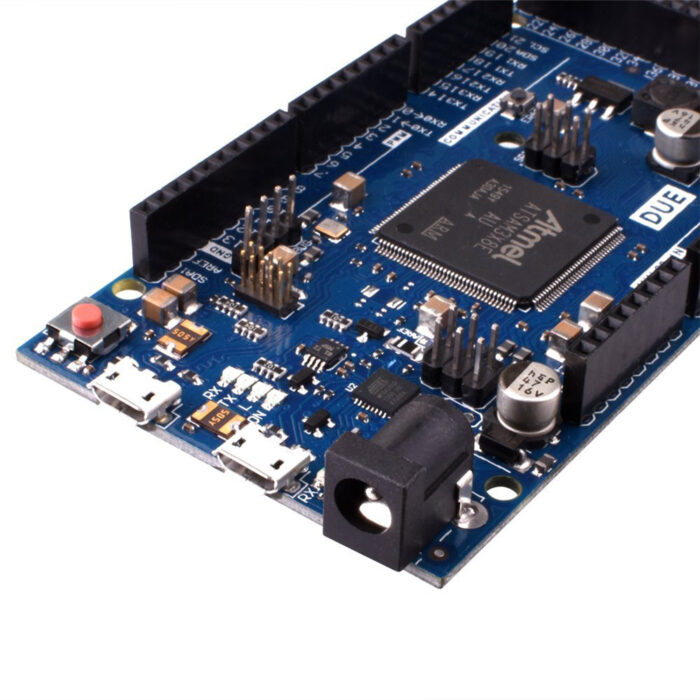

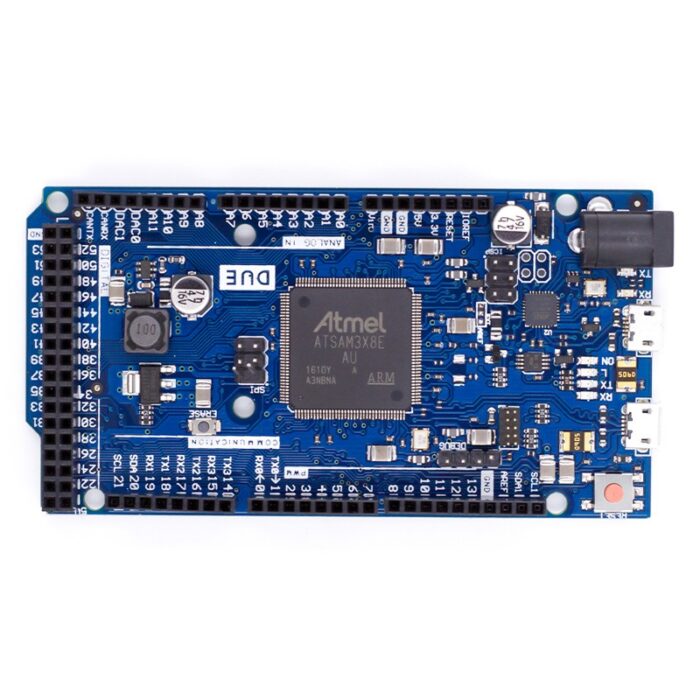

Arduino Due AT91SAM3X8E ARM Cortex-M3 Board In Pakistan

This Arduino Due microcontroller is based on the board of Atmel SAM3X8E ARM CortexM3 CPU. This Arduino due board is based on 32 bit ARM core microcontroller. Atmel SAM3X8E Arduino board contains 54 digital input/ output pins, 12 analog inputs, 4 UARTs, an 84 Mhz clock, an USB OTG capable connection, 2 DAC and DAC stands for Digital to Analog Converter, 2 TWI, a power jack, an SPI header, a JTAG header, a reset button and an erase button.

6500

This Arduino Due microcontroller is based on the board of Atmel SAM3X8E ARM CortexM3 CPU. This Arduino due board is based on 32 bit ARM core microcontroller. Atmel SAM3X8E Arduino board contains 54 digital input/ output pins, 12 analog inputs, 4 UARTs, an 84 Mhz clock, an USB OTG capable connection, 2 DAC and DAC stands for Digital to Analog Converter, 2 TWI, a power jack, an SPI header, a JTAG header, a reset button and an erase button. Arduino board contains everything needed to support the microcontroller. We just need to connect the micro USB of Arduino Due to the computer. And this cable is included in the product pack. We just need to power it with an AC to DC adapter or battery to get started. This Arduino Due is compatible with all Arduino shields. And that works at 3.3V. these are compliant with 1.0 Arduino pinout. we provide high 6 inches micro USB cable with high-quality connection Arduino Due.

Specification of Arduino Due AT91SAM3X8E ARM Cortex-M3 Board:

  1. Microcontroller: AT91SAM3X8E
  2. Operating Voltage: 3.3V
  3. Input Voltage (recommended): 7-12V
  4. Input Voltage (limits): 6-16V
  5. Digital I/O Pins: 54 (of which 12 provide PWM output)
  6. Analog Input Pins: 12
  7. Analog Outputs Pins: 2 (DAC)
  8. Total DC Output Current on all I/O lines: 130 mA
  9. DC Current for 3.3V Pin: 800 mA
  10. DC Current for 5V Pin: 800 mA
  11. Flash Memory: 512 KB all available for the user applications
  12. SRAM: 96 KB (two banks: 64KB and 32KB)
  13. Clock Speed: 84 MHz

Arduino Due AT91SAM3X8E ARM Cortex-M3 Development Board In Pakistan Arduino Due AT91SAM3X8E ARM Cortex-M3 Development Board In Pakistan Arduino Due AT91SAM3X8E ARM Cortex-M3 Development Board In Pakistan Arduino Due AT91SAM3X8E ARM Cortex-M3 Development Board In Pakistan

Package Include:

  • 1 x Arduino Due AT91SAM3X8E ARM Cortex-M3 Board In Pakistan
