Mega 2560 PRO Mini Embed CH340G ATMEGA 2560 16A with Male Pin Headers in Pakistan

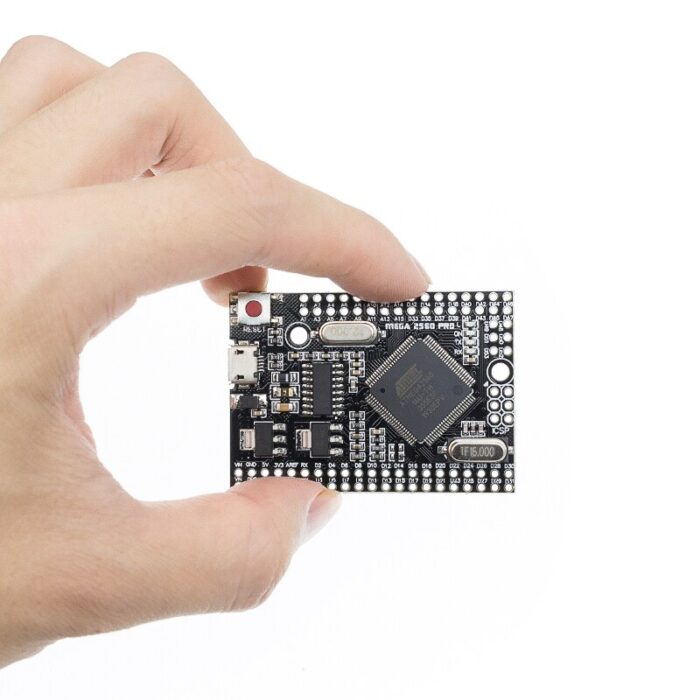

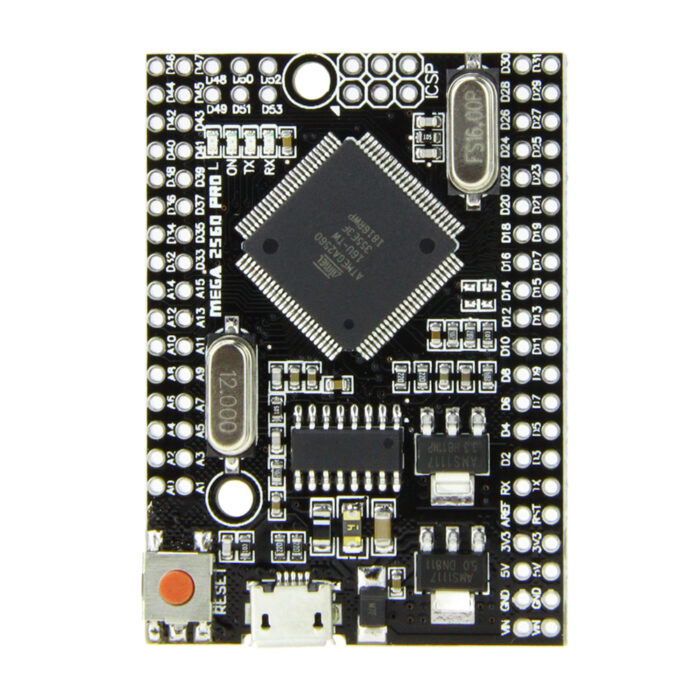

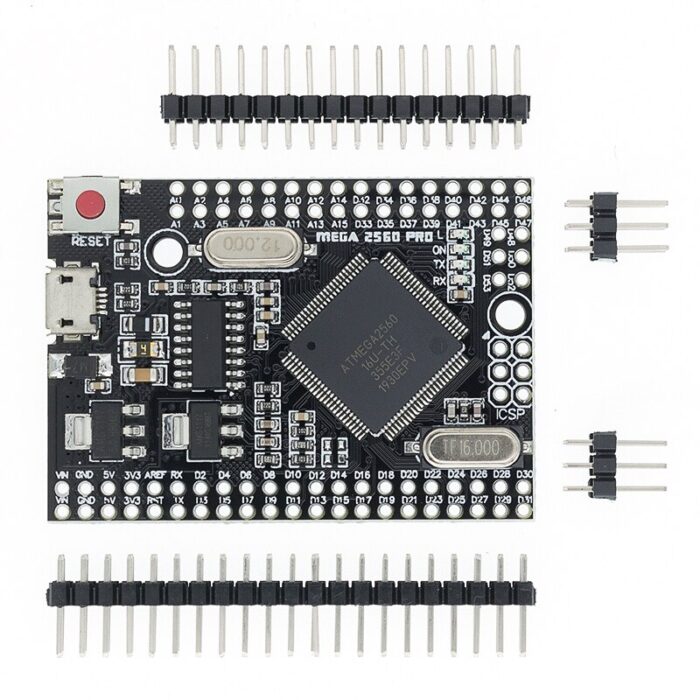

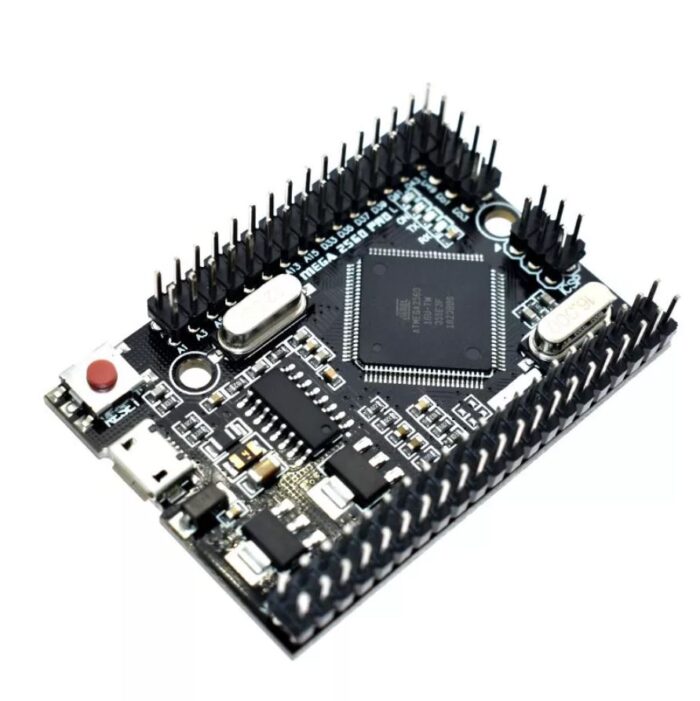

Mega 2560 PRO MINI it is version PRO of Arduino Mega 2560 R3. Built on the Atmel ATmega2560 microcontroller.The board has compact size 38×52mm. It is a good solution, to make your final project on solder prototyping board. You can find all pinouts on board: digital’s I/O – 70 and analog’s input – 16.Mega 2560 PRO MINI as functionality similar to the Arduino Mega 2560. It is built on MINI board, but the same stable, and uses the original chips ATmega2560 (16MHz). The board has a USB interface, based on USB-serial converter CH340G. For connecting to PC, pls use the Micro USB cable.
₨3650
Mega 2560 PRO MINI it is version PRO of Arduino Mega 2560 R3. Built on the Atmel ATmega2560 microcontroller.The board has compact size 38×52mm. It is a good solution, to make your final project on solder prototyping board. You can find all pinouts on board: digital’s I/O – 70 and analog’s input – 16.Mega 2560 PRO MINI as functionality similar to the Arduino Mega 2560. It is built on MINI board, but the same stable, and uses the original chips ATmega2560 (16MHz). The board has a USB interface, based on USB-serial converter CH340G. For connecting to PC, pls use the Micro USB cable.
Specification of Mega 2560 PRO Mini Embed CH340G ATMEGA 2560 16A with Male Pin Headers:
- Microcontroller: ATmega2560
- USB-TTL converter: CH340
- Power Out: 5V-800mA
- Power IN: 5V
- Power IN: VIN/DC Jack9-12V
- Power Consumption: 5V 220mA
- Logic Level: 5V
- USB Micro: USB
- Clock Frequency: 16MHz
- Operating Supply Voltage: 5V
- Digital I/O: 54
- Analog I/O: 16
- Memory Size: 256kb
- Data RAM Type/Size: 8Kb
- Data ROM Type/Size: 4Kb
- Interface Type: ISP
- Operating temperature: −40С°/+85С°

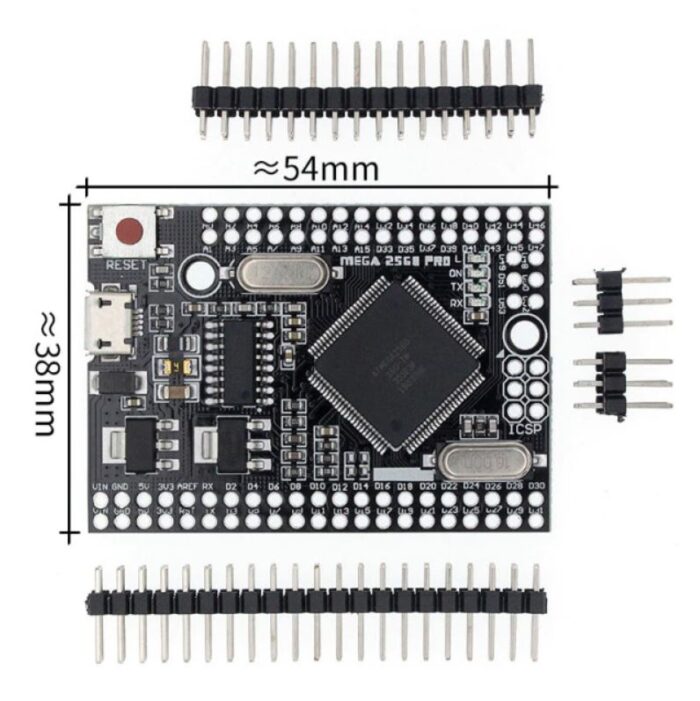

- Length×Width: 38×54mm
Package Include:

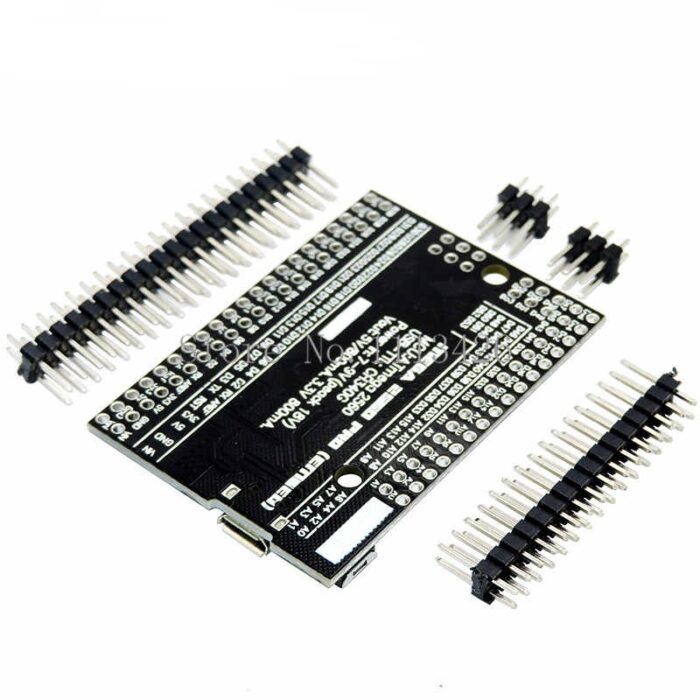

- 1 x Mega 2560 PRO Mini Embed CH340G ATMEGA 2560 16A with Male Pin Headers in Pakistan
| Weight | 0.2 kg |
|---|
