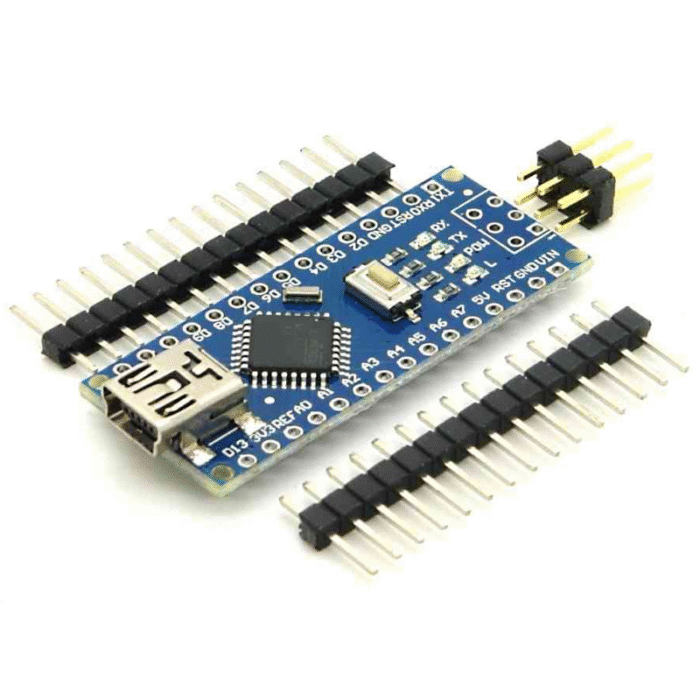

Arduino Nano V3 ATmega328P Development Board In Pakistan
Arduino Nano V3 is a small, complete, and breadboard-friendly board based on the ATmega328 (Arduino Nano 3. x). Arduino Nano board has more or less the same functionality as the Arduino UNO but in a different package. Arduino Nano programming module lacks only a DC power jack and works with a Mini-B USB cable instead of a standard one.
₨950
Arduino Nano V3 is a small, complete, and breadboard-friendly board based on the ATmega328 (Arduino Nano 3. x). Arduino Nano board has more or less the same functionality as the Arduino UNO but in a different package. Arduino Nano programming module lacks only a DC power jack and works with a Mini-B USB cable instead of a standard one.
Specification of Arduino Nano V3 ATmega328P Development Board:
- Microcontroller: ATmega328 (Arduino nano).
- Operating Voltage (logic level): l5 V.
- Input Voltage (recommended): 7-12 V.
- Input Voltage (limits): 6-20 V.

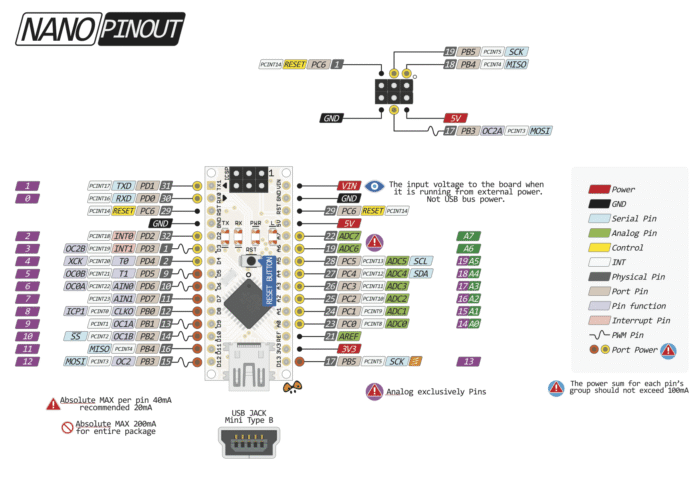

- Digital I/O Pins: 14 (of which 6 provide PWM output).
- Analog Input Pins: 8.
- DC Current per I/O Pin: 40 mA.
- Flash Memory: 16 KB (ATmega168) or 32 KB (ATmega328) of which 2 KB is used by the boot loader.
- SRAM: 1 KB (ATmega168) or 2 KB (ATmega328).
- EEPROM: 512 bytes (ATmega168) or 1 KB (ATmega328).
- Clock Speed: 16 MHz.

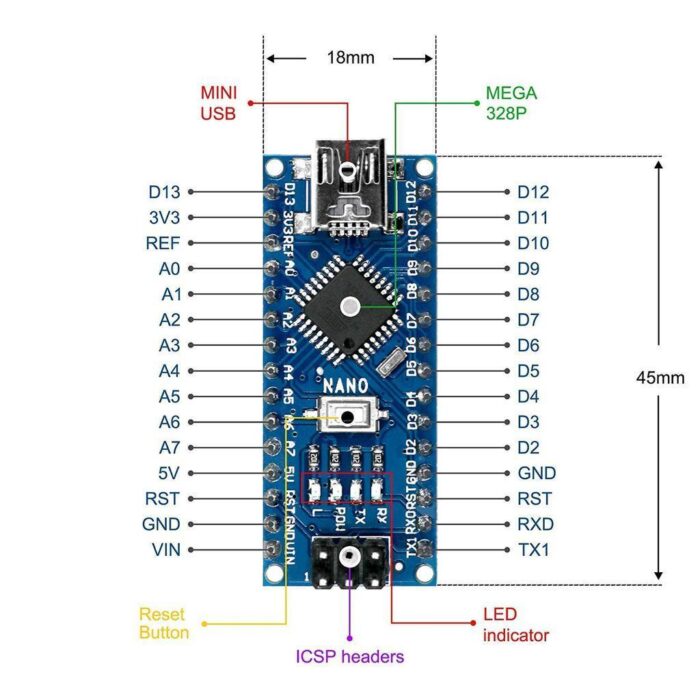

- Dimensions: 0.73″ x 1.70″.
- Length: 45 mm.
- Width: 18 mm.
- Weight: 5 g.
Package Include:
- 1 x Arduino Nano V3 ATmega328P Development Board In Pakistan
