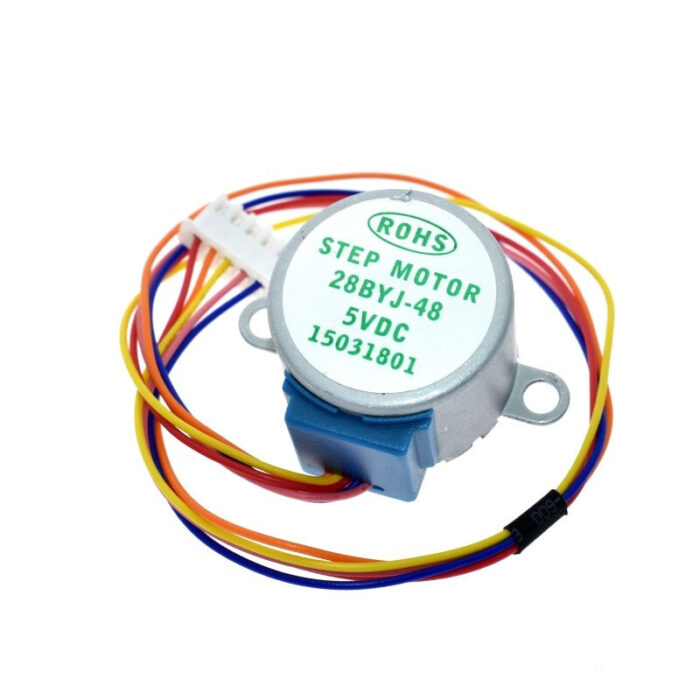

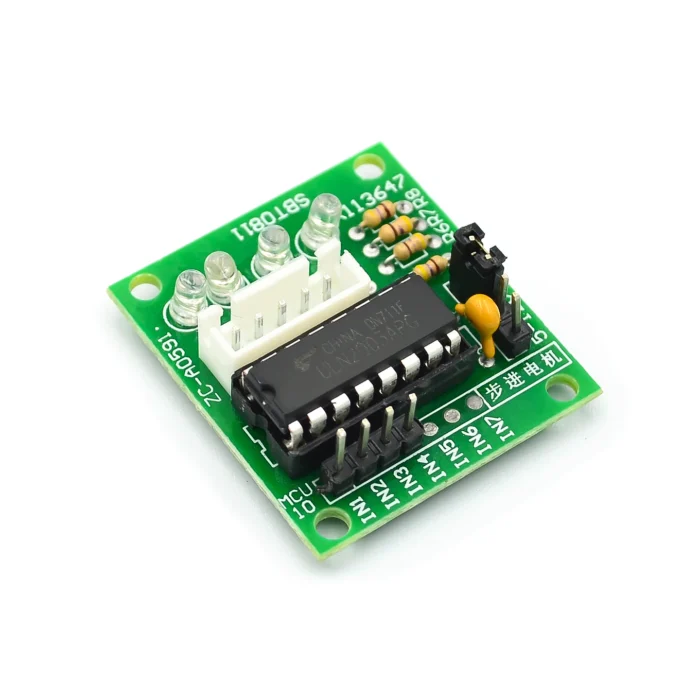

Arduino 28BYJ48 5V Stepper Motor With ULN2003 Driver In Pakistan
Arduino 28BYJ48 5V Stepper Motor High Torque Stepper Motor with Gear Reduction, so it has good torque for its size, but relatively slow motion. These motors/drivers are made by the millions for A/C units, fans, duct controls etc. which is why they are so inexpensive. Available in 5V or 12V.
₨350
Arduino 28BYJ48 5V Stepper Motor High Torque Stepper Motor with Gear Reduction, so it has good torque for its size, but relatively slow motion. These motors/drivers are made by the millions for A/C units, fans, duct controls etc. which is why they are so inexpensive. Available in 5V or 12V.
Specification of Arduino 28BYJ48 5V Stepper Motor With ULN2003 Driver:
- Model : 28BYJ-48
- Number of Phase : 4
- Speed Variation Ratio : 1/64
- Stride Angle : 5.625° /64
- Rated voltage : DC [5v – 12v]
- DC resistance : 5v: 60Ω±7%(25℃); 12v: 130Ω±7%(25℃)
- Frequency : 100Hz
- Idle In-traction Frequency : > 600Hz
- Idle Out-traction Frequency : > 1000Hz
- In-traction Torque >34.3mN.m(120Hz)
- Self-positioning Torque : 5v: >29.3mN.m; 12v: >42.1mN.m
- Friction torque : 600-1200 gf.cm
- Pull in torque : 300 gf.cm
- Insulated resistance >10MΩ(500V)
- Insulated electricity power : 600VAC/1mA/1s
- Insulation grade : A
- Rise in Temperature <40K(120Hz)
- Noise <35dB(120Hz,No load,10cm)
Package Include:
- 1 x Arduino 28BYJ48 5V Stepper Motor With ULN2003 Driver In Pakistan
Based on 0 reviews
Be the first to review “Arduino 28BYJ48 5V Stepper Motor With ULN2003 Driver In Pakistan”
Related products
-
Arduino Boards
Arduino Compatible USB Host Shield In Pakistan
The Arduino Compatible USB Host Shield is based on the MAX3421E, which is a USB peripheral/host controller containing the digital logic and analog circuitry necessary to implement a full-speed USB peripheral or a full-/low-speed host compliant to USB specification rev 2.0. it is compatible with more Arduinos – not only UNO and Duemilanove but also Mega and Mega 2560 work with a Standard variant of this shield out of the box. No more SPI re-wiring and code modifications – just solder included stackable connectors (2×3 ICSP connector’s female side should be facing down), plug and play! Using Arduino Compatible USB HOST function, let your Arduino communicate with other USB devices, and supports USB HUB function.USB Host shield adds USB Host capabilities to the Arduino board.
SKU: SH88 -
Arduino Boards

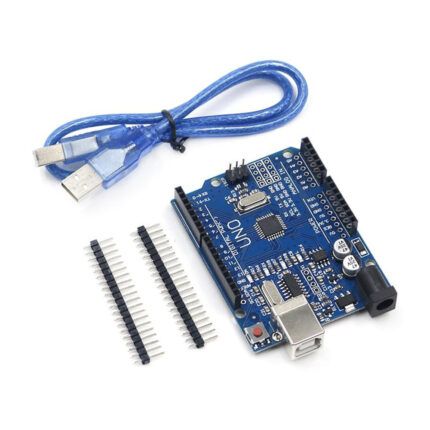

Arduino Uno R3 Dip Without Arduino Logo In Pakistan
