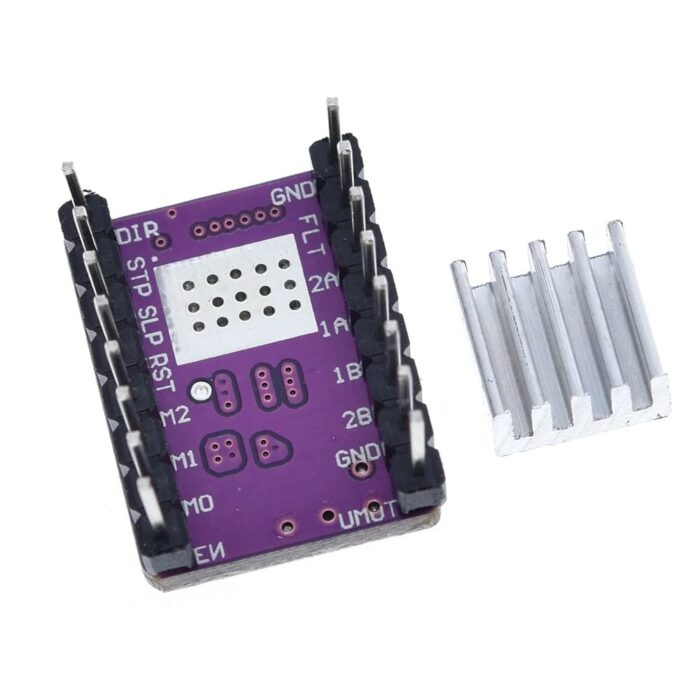

DRV8825 Stepper Motor Driver with Aluminum Heat Sink In Pakistan
The DRV8825 stepper motor driver carrier is a breakout board for TI’s DRV8825 micro-stepping bipolar stepper motor driver. The Stepper Driver module has a pinout and interface that are nearly identical to those of our A4988 stepper motor driver board, so it can be used as a higher-performance drop-in replacement for those boards in many applications. The DRV8825 Arduino stepper motor controller features adjustable current limiting, over-current, and over-temperature protection, and six micro-step resolutions (down to 1/32-step). It operates from 8.2 – 45 V and can deliver up to approximately 1.5 A per phase without a heat sink or forced air flow (rated for up to 2.2 A per coil with sufficient additional cooling).
₨550
The DRV8825 stepper motor driver carrier is a breakout board for TI’s DRV8825 micro-stepping bipolar stepper motor driver. The Stepper Driver module has a pinout and interface that are nearly identical to those of our A4988 stepper motor driver board, so it can be used as a higher-performance drop-in replacement for those boards in many applications. The DRV8825 Arduino stepper motor controller features adjustable current limiting, over-current, and over-temperature protection, and six micro-step resolutions (down to 1/32-step). It operates from 8.2 – 45 V and can deliver up to approximately 1.5 A per phase without a heat sink or forced air flow (rated for up to 2.2 A per coil with sufficient additional cooling).
Specification of DRV8825 Stepper Motor Driver with Aluminum Heat Sink:
- Model: DRV8825
- Supply Voltage: 8.2 – 42 VDC.
- Current Capacity : 2.2A max(24V).
- Continuous current per phase: 1.5 A.
- Minimum Logic voltage: 2.5V.
- Maximum Logic Voltage: 5V.
- Microstep resolutions: full, 1/2, 1/4, 1/8, 1/16, and 1/32.

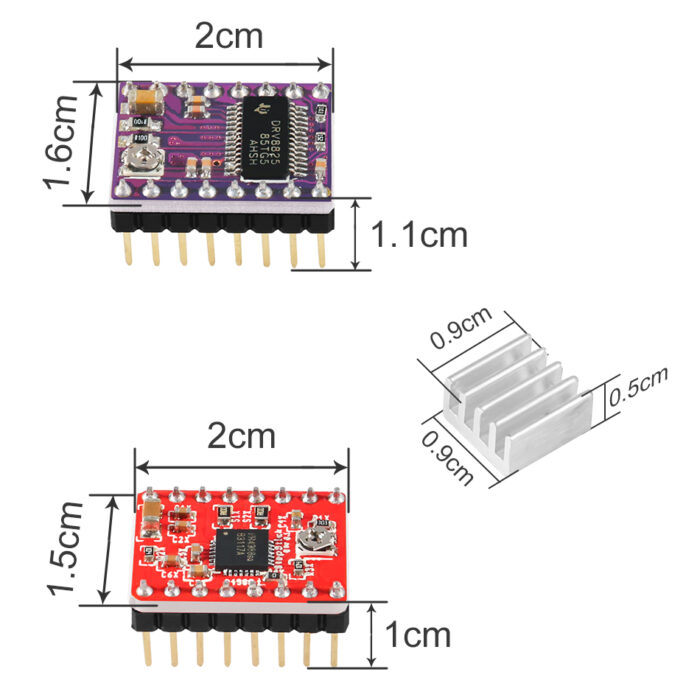

- Dimensions : 15 x 20 mm.
- Weight: 4 gm.
Package include:
- 1 x DRV8825 Stepper Motor Driver with Aluminum Heat Sink In Pakistan
