Arduino Pro Mini 3.3V 8Mhz ATMEGA328P Board in Pakistan
₨1200
Arduino Pro Mini ATMEGA328P is a 3.3V Arduino (Official Version) running the 8MHz bootloader. Arduino Pro Mini ATMEGA328P comes with connectors so that you can solder connectors or wires with any orientation you need. We recommend the first-time Arduino users start with the Uno R3. It’s a great board that will get you up and be running quickly. The Arduino Pro series is meant for users that understand the limitations of system voltage (3.3V), lack of connectors, and USB off-board.
Description
Arduino Pro Mini ATMEGA328P is a 3.3V Arduino (Official Version) running the 8MHz bootloader. Arduino Pro Mini ATMEGA328P comes with connectors so that you can solder connectors or wires with any orientation you need. We recommend the first-time Arduino users start with the Uno R3. It’s a great board that will get you up and be running quickly. The Arduino Pro series is meant for users that understand the limitations of system voltage (3.3V), lack of connectors, and USB off-board.

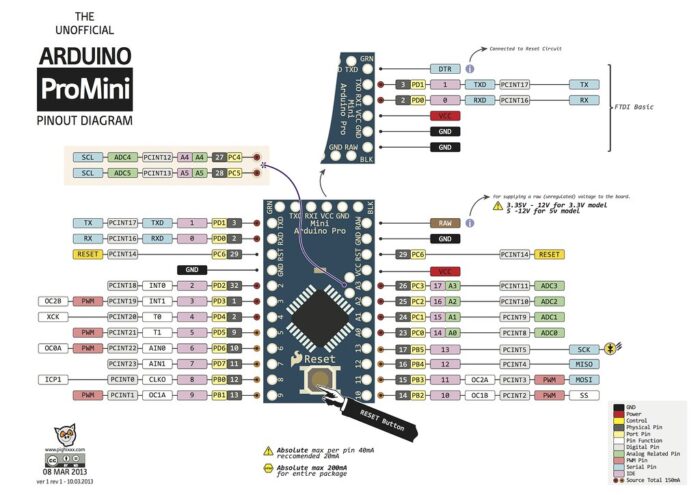

Specification of Arduino Pro Mini 3.3V 8Mhz ATMEGA328P Board:
- Microcontroller:Â ATmega328
- Board Power Supply: 3.35 -12 V (3.3V model) or 5 – 12 V (5V model)
- Circuit Operating Voltage:Â 3.3V or 5V (depending on model)
- Digital I/O Pins:Â 14
- PWM Pins:Â 6
- UART:Â 1
- SPI:Â 1
- I2C:Â 1
- Analog Input Pins:Â 8
- External Interrupts:Â 2
- DC Current per I/O Pin: 40 mA
- Flash Memory:Â 32KB of which 2 KB used by bootloader *
- SRAM:Â 2 KB
- EEPROM:Â 1 KB
- Clock Speed:Â 8 MHz (3.3V versions)
- 8 analog input port:Â A0 ~ A7.
- A pair of TTL level serial port transceivers:Â RX / TX.
- 6 PWM ports:Â D3, D5, D6, D9, D10, D11.
- Use For Atmel Atmega328P-AU microcontroller.
- Support serial download.
- Support external 3.3V ~ 12V DC power supply.
- Clock frequency:Â 8MHz.
- Support 9V battery.
- Size:Â 33.3 x 18.0 (mm).

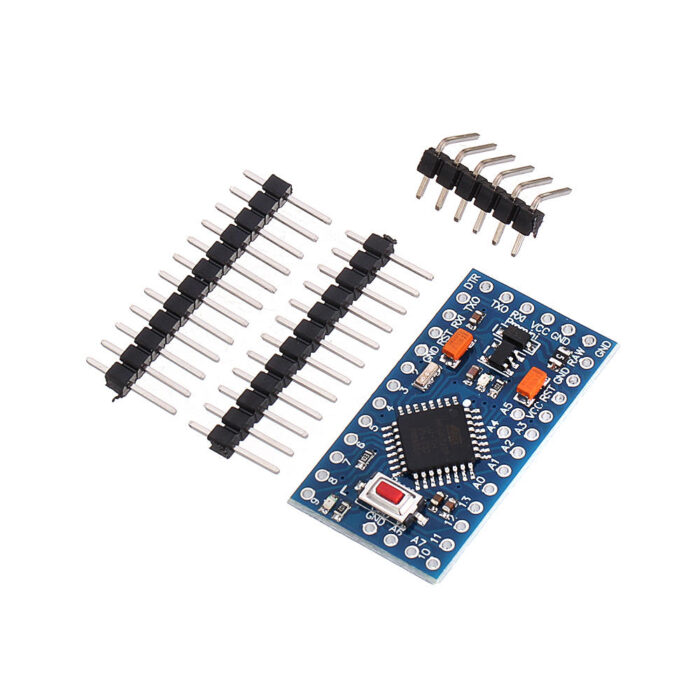

Package Include:
- 1 x Arduino Pro Mini 3.3V 8Mhz ATMEGA328P Board in Pakistan
Additional information
| Weight | 0.1 kg |
|---|
