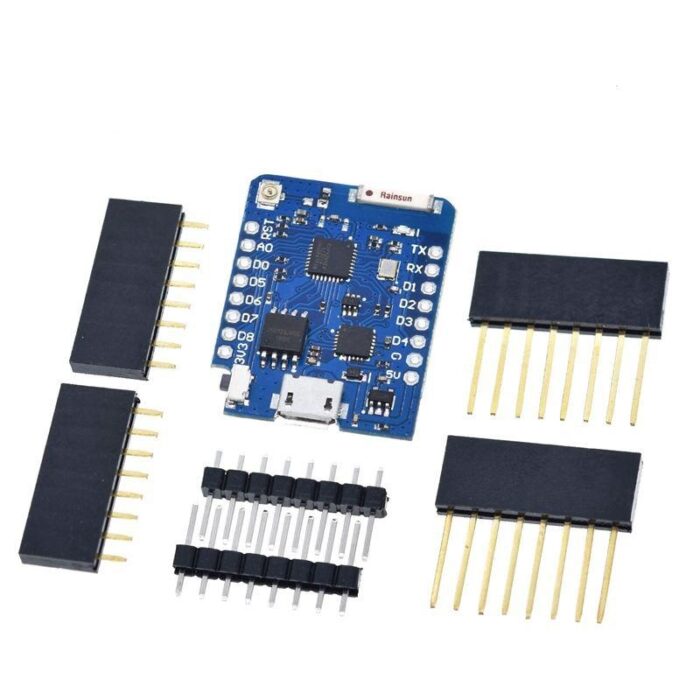

WEMOS D1 Mini Pro With External Antenna In Pakistan
₨1350
Wemos D1 Pro With esp8266 chip It has comparison with nodemcu, arduino wifi and other wifi modules.WEMOS D1 Mini Pro Have External Connector for an antenna with ESP8266 CP2104 WIFI Development Board With Compatible pins for WEMOS D1 Mini.
Description
Wemos D1 Pro With esp8266 chip It has comparison with nodemcu, arduino wifi and other wifi modules.WEMOS D1 Mini Pro Have External Connector for an antenna with ESP8266 CP2104 WIFI Development Board With Compatible pins for WEMOS D1 Mini.
Specification of WEMOS D1 Mini Pro With External Antenna:
- Microcontroller ESP-8266EX
- Operating Voltage 3.3V
- Digital I/O Pins 11
- Analog Input Pins 1(Max input: 3.2V)
- Clock Speed 80MHz/160MHz
- Flash 4M bytes

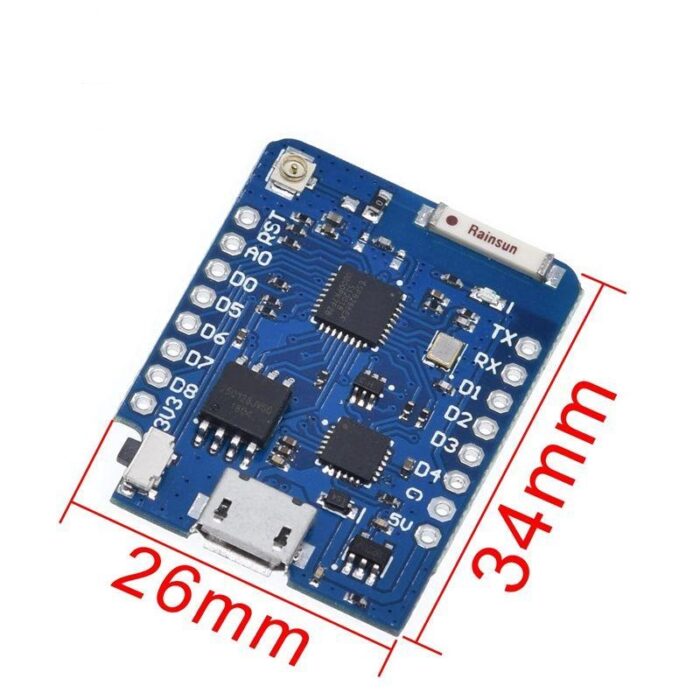

- Length 34.2mm
- Width 25.6mm
- Weight 2.5g
- NOTE: All of the IO pins have interrupt/PWM/I2C/one-wire support except D0, All of the IO pins run at 3.3V.
Package Include:
- 1 x WEMOS D1 Mini Pro With External Antenna In Pakistan
Additional information
| Weight | 0.1 kg |
|---|
