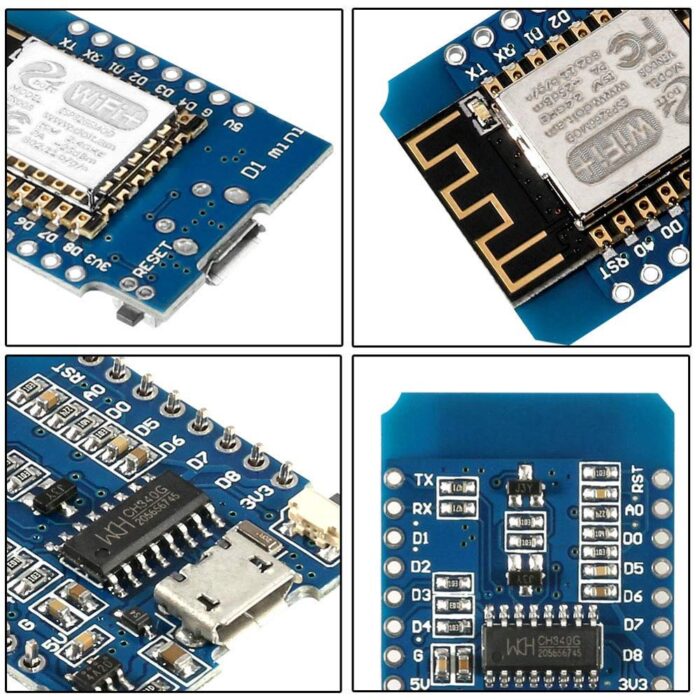

WeMos D1 Mini WIFI Development Board ESP8266 In Pakistan
₨620
This IOT Wemos D1 Mini WIFI Internet Of Things Development Board based on ESP8266 esp12e, Wemos d1 Mini is a WIFI board based on ESP-8266EX. 11 digital input/output pins, all pins have interrupt/PWM/I2C/one-wire supported(except D0) 1 analog input(3.3V max input) and a Micro USB connection. The Wemos D1 Mini is a great board to develop WiFi-based IoT Projects. It uses the popular ESP8266 Module for its IoT operations.
Description
This IOT Wemos D1 Mini WIFI Internet Of Things Development Board based on ESP8266 esp12e, Wemos d1 Mini is a WIFI board based on ESP-8266EX. 11 digital input/output pins, all pins have interrupt/PWM/I2C/one-wire supported(except D0) 1 analog input(3.3V max input) and a Micro USB connection. The Wemos D1 Mini is a great board to develop WiFi-based IoT Projects. It uses the popular ESP8266 Module for its IoT operations.

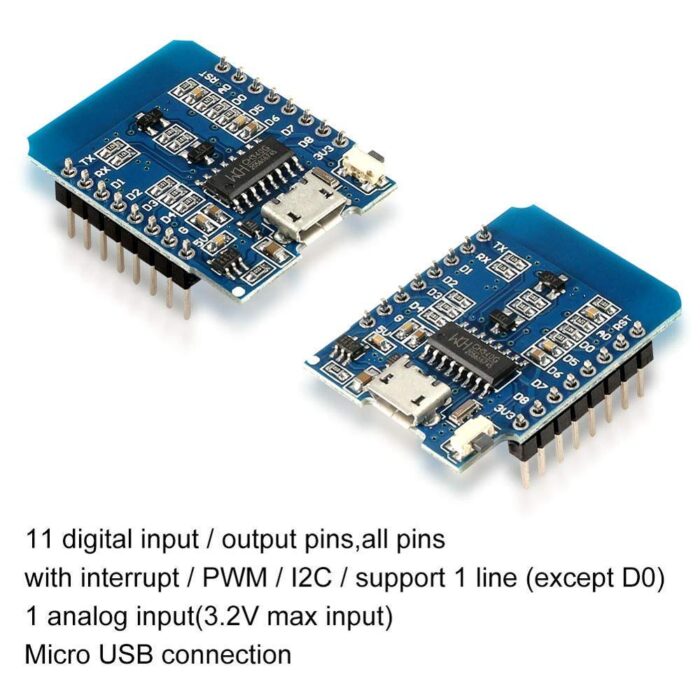

Specification of WeMos D1 Mini WIFI Development Board ESP8266:
- 11 digital input/output pins, all pins have interrupt/pwm/I2C/one-wire
- supported(except D0)
- 1 analog input(3.2V max input)
- Micro USB connection
- Use BRT (Bias Resistor Transistor), easier into flash mode.
- 30% increase in radiating area, more stable.
- Dimensions : 35 x 26 x 8 (LxWxH) mm.
- Weight: 10 gm.
- Board Color : Blue
- Compatible with Arduino
- Compatible with NodeMCU
- Compatible with MicroPython

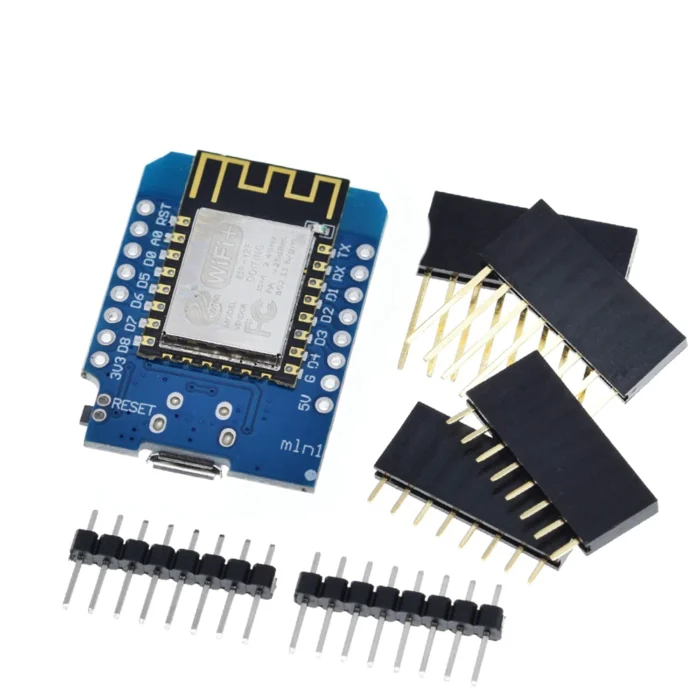

Package Include:
- 1 x WeMos D1 Mini WIFI Development Board ESP8266 In Pakistan
Additional information
| Weight | 0.1 kg |
|---|
