Three Wire DC Volt Meter 0.28 Size 0-100V
₨200
0.28 inch DC Volt Meter 0-100 DC 0-100V 3-Wire Mini Gauge voltage meter Voltmeter LED Display Digital Panel Voltmeter Meter Volt Detector Red
Description

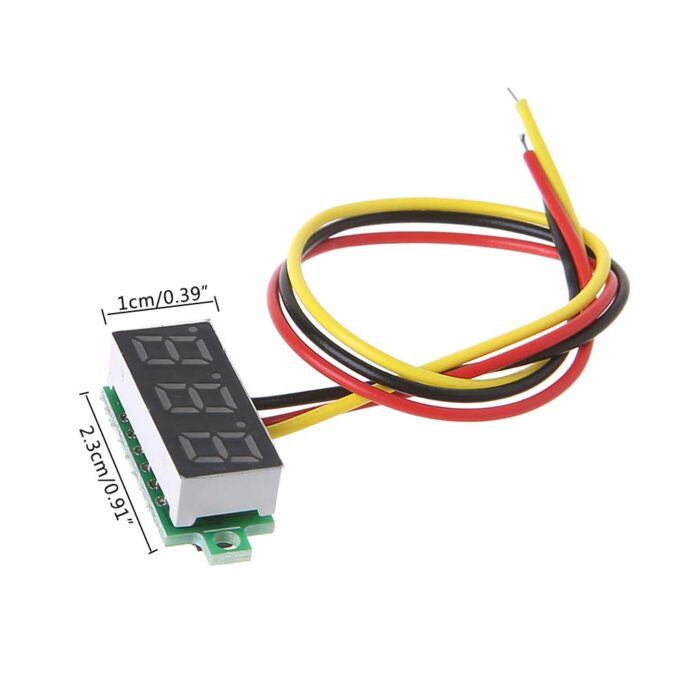

This is a mini DC voltmeter with LED display. Thanks to the small dimension it can be easily integrated into your project. It has three wires (yellow, red and black) and can measure up to 100V. The voltmeter can measure up to 100V. If the actual measured voltage is higher than 3.5V and is lower than 30V, you can also merge the red and yellow wires and simplify the wiring like this. In this case, the measured voltage will also work as the power supply for the voltmeter. This voltmeter has been calibrated before leaving the factory. However, if you want to get better accuracy, you can calibrate it by spinning the potentiometer on its back. Spinning the potentiometer clock-wise will reduce the displayed voltage value.
Specifications:
- Power Supply: 3.5~30V
- Measured Voltage: 0~100V (3-wire mode) or 0~30V (2-wire mode)
- Working Temperature: -10～+65℃
- Measure Speed: 200ms a time
- Accuracy: 3%
Usage Guide:
- This voltmeter has three wires, and they are:
- Yellow: anode of the measured voltage
- Red: anode of power supply for the voltmeter
- Black: common cathode of measured voltage and power supply
Additional information
| Weight | 0.1 kg |
|---|
Reviews (0)
Shipping & Delivery
MAECENAS IACULIS
Vestibulum curae torquent diam diam commodo parturient penatibus nunc dui adipiscing convallis bulum parturient suspendisse parturient a.Parturient in parturient scelerisque nibh lectus quam a natoque adipiscing a vestibulum hendrerit et pharetra fames nunc natoque dui.
ADIPISCING CONVALLIS BULUM
- Vestibulum penatibus nunc dui adipiscing convallis bulum parturient suspendisse.
- Abitur parturient praesent lectus quam a natoque adipiscing a vestibulum hendre.
- Diam parturient dictumst parturient scelerisque nibh lectus.
Scelerisque adipiscing bibendum sem vestibulum et in a a a purus lectus faucibus lobortis tincidunt purus lectus nisl class eros.Condimentum a et ullamcorper dictumst mus et tristique elementum nam inceptos hac parturient scelerisque vestibulum amet elit ut volutpat.
Related products

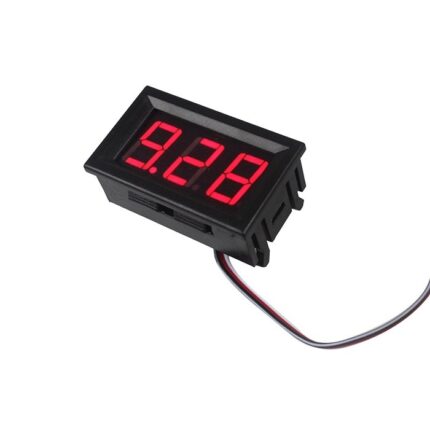

3 wire DC 0 to 30V DC Red LED digital voltmeter
Range DC 0-30V, 3-wire products Universal, to break the routine voltmeter, is the latest design, can work directly in 5V, 9V, 12V, 24V and other circuits, without regulation. With three wiring, easy access to car /battery car / motorcycle-car line, with reverse polarity protection, line reversal will not burn. For monitoring the battery voltage, battery voltage state to grasp, it can also be used for other products voltage measurement purposes.
Adjustable Double Layer Component Organizer Tool Container Storage Box F240 in Pakistan
Small tools storage box is made of PP material and 8 grid component storage container is durable for use. This storage organizer chest, the size of each grid can be adjusted by removing the PP sheet at the bottom layer. Each adjustable compartment is straight and smooth to remove. There are slots under the box cover so that the grid can be tightly closed. This component plastic box is suitable for storage of electronic components, jeweler, cosmetics, stationery and small tool kits. Can be used for storing IC chips, nails, screws, nuts, bolts, washers, earrings, beads, thumbtack, clips, fishhooks and other small parts.
Arduino Camera OV7670 640×480 VGA CMOS Camera Image Sensor Module In Pakistan
Arduino Camera OV7670 640x480 VGA CMOS Camera Image Sensor Module is a low-cost image sensor, DSP that can operate at a maximum of 30 fps and 640 x 480 (“VGA”) resolutions, equivalent to 0.3 Megapixels. The captured image can be pre-processed by the DSP before sending it out. This pre-processing can be configured via the Serial Camera Control Bus (SCCB). Omni Vision OV7670 CMOS VGA (640 x 480) CAMERA-CHIP Sensor with Omni Pixel technology 3.3V DC Input Voltage. working Temp. 0-50 Degree Celsius All Glass Lenses, Lens(including seat) is Magnesium Alloy material.
Arduino Serial Printer Arduino Mini Embedded Receipt Thermal Printer With Paper Roll In Pakistan
Mini Thermal Receipt Printer Mini Embedded Receipt Thermal Printer is an embedded thermal printer, which is widely used in various occasions, such as supermarkets, convenience stores, post offices, banks and so on. This is an embedded thermal printer, which is widely used on various occasions, such as supermarkets, convenience stores, post offices, banks, and so on. It is not a normal consumer product, but similar to consumer products. The compact size makes it easy to be embedded in any kind of instrument and meter. With a nice appearance, you can even put it on the table. On the hardware side, we specially choose the TTL interface so that it can be directly controlled by development boards such as Arduino or Raspberry Pi. In the Internet of Things era, it’s time to print out your ideas!

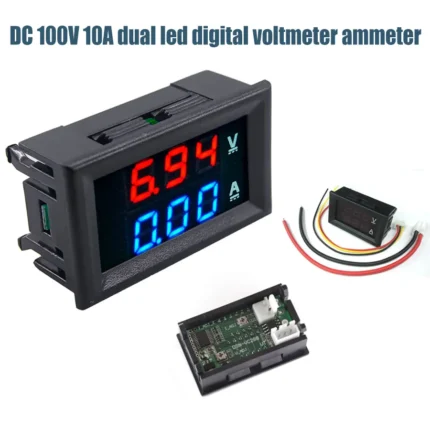

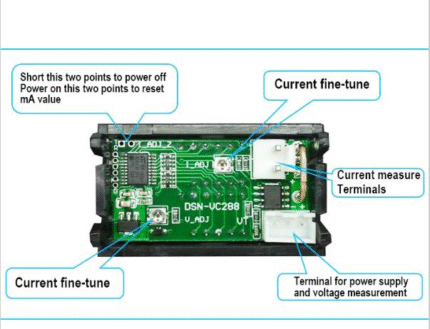

DSN-VC288 Panel Mount DC 100V 10A Voltmeter Ammeter
This DC 100V 10A Ammeter Voltmeter is consist of 0.28 inch 5 wire red LED. With 100V DC can be measured by this meter with 0.1V resolution. This volt ammeter contains 2 wire harnesses. 2 poles with RED and BLACK lead used to provide power for the meters. this meter is portable and small in size. DSN-VC288 DC 100V 10A shows volt and ammeter at the same time on the same screen.

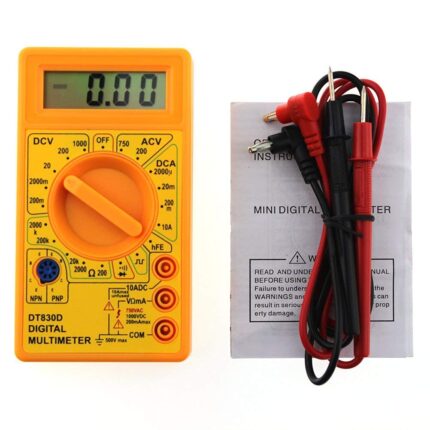

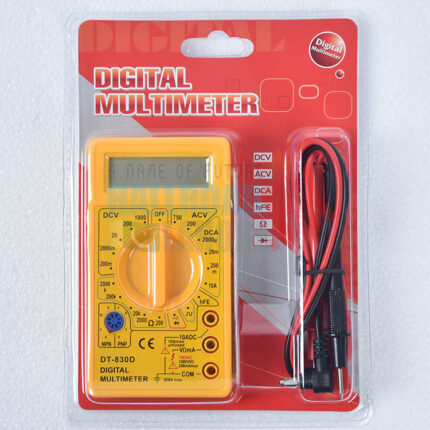

DT830D DMM Mini LCD Display Digital Multi Meter In Pakistan
DT830D DMM Mini LCD Display Digital Multi Meter is an electronic measuring instrument that combines several measurement functions in one unit. Digital Multimeter DT830D includes basic features such as the ability to measure voltage, current, and resistance. Digital multimeters (DMM, DVOM) display the measured value in numerals, and may also display a bar of a length proportional to the quantity being measured. A multimeter can be a handheld device useful for basic fault finding and field service work, or a bench instrument that can measure to a very high degree of accuracy. They can be used to troubleshoot electrical problems in a wide array of industrial and household devices such as electronic equipment, motor controls, domestic appliances, power supplies, and wiring systems.

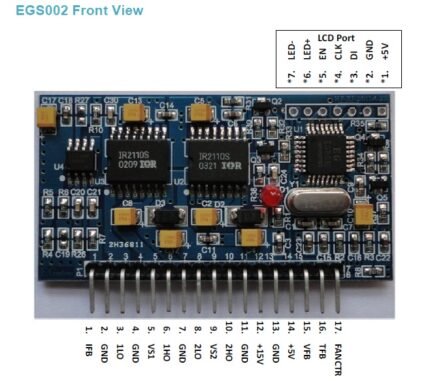

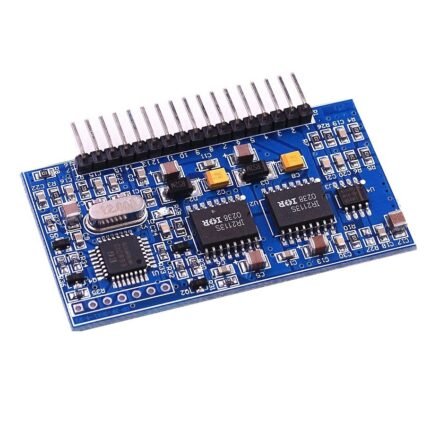

EGS002 EG8010 + IR2113 Pure Sine Wave Inverter SPWM Module In Pakistan
