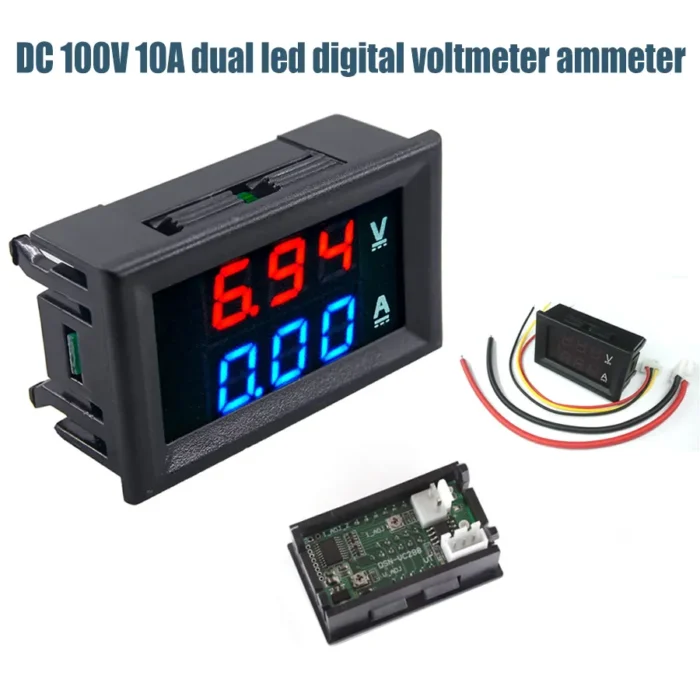

DSN-VC288 Panel Mount DC 100V 10A Voltmeter Ammeter
This DC 100V 10A Ammeter Voltmeter is consist of 0.28 inch 5 wire red LED. With 100V DC can be measured by this meter with 0.1V resolution. This volt ammeter contains 2 wire harnesses. 2 poles with RED and BLACK lead used to provide power for the meters. this meter is portable and small in size. DSN-VC288 DC 100V 10A shows volt and ammeter at the same time on the same screen.
₨550
This DC 100V 10A Ammeter Voltmeter is consist of 0.28 inch 5 wire red LED. With 100V DC can be measured by this meter with 0.1V resolution. This volt ammeter contains 2 wire harnesses. 2 poles with RED and BLACK lead used to provide power for the meters. this meter is portable and small in size. DSN-VC288 DC 100V 10A shows volt and ammeter at the same time on the same screen.
Its operating voltages are 6 to 30 volts. This is a separate power supply that is isolated from the source, it is possible to use the same supply but it seems to affect the amp meter reading. 3 wire harness used for a ground. This 3rd wire harness connects directly to the battery or supply ground of the load. Get all types of Meters, Sensors, Modules
Specifications Of DSN-VC288 DC 100V 10A Voltmeter Ammeter:
- Voltage measurement range: 0.0V-100V
- Current test range: 0-999mA, 0-10A
- Power supply range: DC4-30.0V
- Voltage error: ±0.1%
- Current error: ±1%
- Working current: < 20mA
- Refresh rate: about 300mS once
- Display mode: double three-digit 0.28″ LED digital tube
- Display color: red + red, red + blue. Optional
- Lead length: 15cm

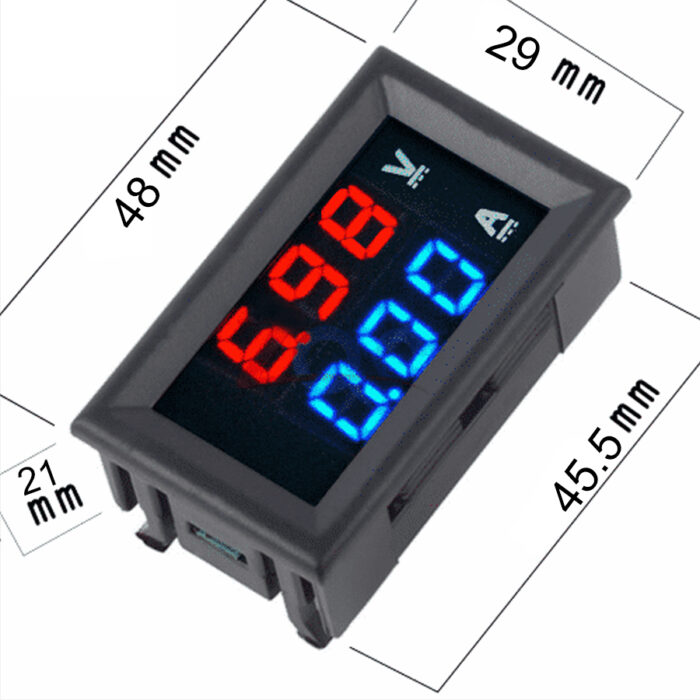

- Dimensions: 48 x 29 x 22 mm
- Mounting hole: 46 x 27 mm
- Working temperature: -10 ° C ~ 65 ° C
