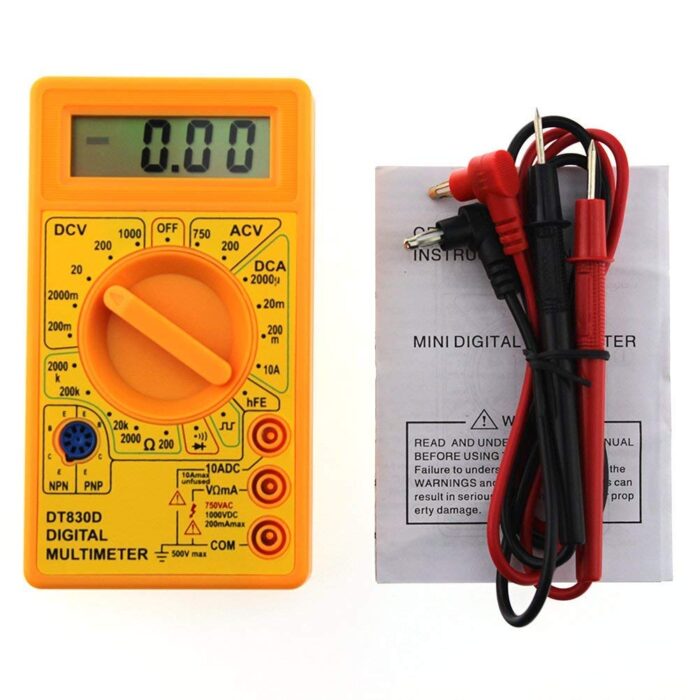

DT830D DMM Mini LCD Display Digital Multi Meter In Pakistan
₨750
DT830D DMM Mini LCD Display Digital Multi Meter is an electronic measuring instrument that combines several measurement functions in one unit. Digital Multimeter DT830D includes basic features such as the ability to measure voltage, current, and resistance. Digital multimeters (DMM, DVOM) display the measured value in numerals, and may also display a bar of a length proportional to the quantity being measured. A multimeter can be a handheld device useful for basic fault finding and field service work, or a bench instrument that can measure to a very high degree of accuracy. They can be used to troubleshoot electrical problems in a wide array of industrial and household devices such as electronic equipment, motor controls, domestic appliances, power supplies, and wiring systems.
Specifications of DT830D Mini Lcd Display Digital Multimeter :
- DCV: 200m-2000m-20-200-1000V±0.5%
- ACV: 200-750V±1.0%
- DCA: 20u-2000u-20m-200m-10A±1.8%
- Resistance: 200-2000-20K-200K-2000KΩ ±1.0%
- LCD size:Â 49x16mm
- Max display:Â 1999
- Diode test:Â yes
- Transistor test:Â yes
- Continuity buzzer test: Yes (Another Low price product DT830B is without buzzer function)
- Safety ensures:Â Overload protection function(Other Low price products without this function)
- Square wave output:Â yes
- Power supply:Â one 9V 6F22 battery
- Product size: 125×70×29mm
- Product weight:Â about 128g
Features of DMMÂ DT830DÂ Digital Multimeter :
- Simple and easy, suitable for beginners
- With double fuse, safe and reliable
- 3 1/2 Digital LCD display, maximum display 1999.
- Diode and transistor testing, continuity, and buzzer measurement.
- With test probe leads, a wide range of applications.
- It’s a perfect tool for the laboratory, factory, and home.
- With a large LCD display, convenient to read data.
- Low battery indication, continuity buzzer, and overload protection
