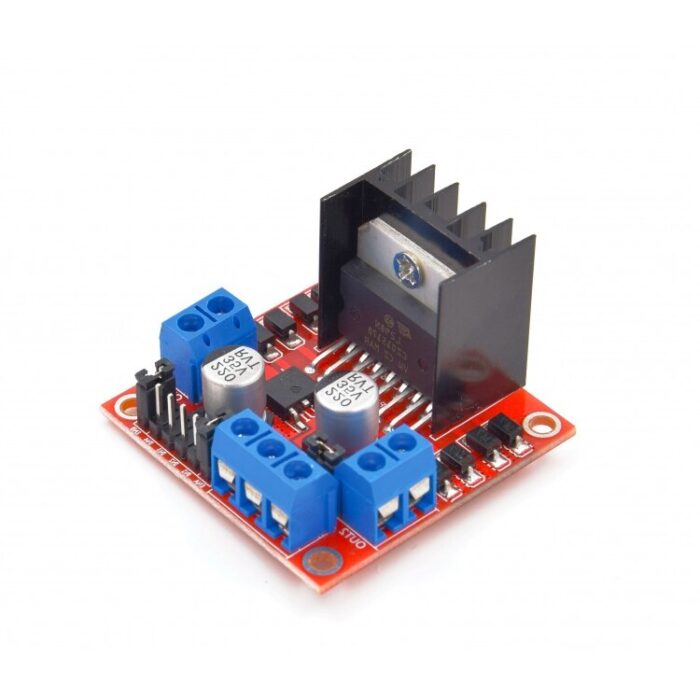

Motor Driver Module L298N For Arduino Dual H Bridge Motor Driver

This L298N Based Motor Driver Module is a high power motor driver perfect for driving DC Motors . H Bridge Driver Module uses the popular L298 motor driver IC and has the onboard 5V regulator which it can supply to an external circuit. It can control up to 4 DC motors, or 2 DC motors with directional and speed control. This Motor Driver is perfect for robotics and mechatronics projects and perfect for controlling motors from microcontrollers, switches, relays, etc. Perfect for driving DC for micro mouse, line-following robots, robot arms, etc. An H-Bridge is a circuit that can drive a current in either polarity and be controlled by Pulse Width Modulation (PWM). Pulse Width Modulation is a means of controlling the duration of an electronic pulse. In motors try to imagine the brush as a water wheel and electrons as the flowing droplets of water.

Specification of Motor Driver Module L298N For Arduino Dual H Bridge Motor Driver:

1. Double H Bridge Drive Chip: L298N
2. Logical Voltage: 5V
3. Drive Voltage: 5V-35V
4. Logical Current: 0-36mA
5. Drive current: 2A (MAX single bridge)
6. Max Power: 25W
7. Dimensions: 43 x 43 x 26mm
8. Weight: 26g

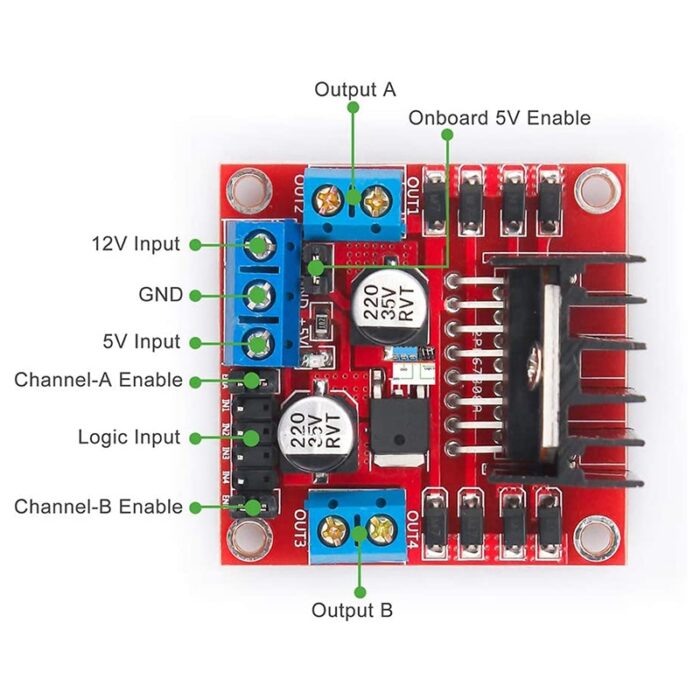

Pin descriptions:

• Out 1: Motor A lead out 1
• Out 2: Motor A lead out 2
• Out 3: Motor B lead out 1
• Out 4: Motor B lead out 2
• GND: Ground
• 5V: 5V Logic Input
• EnA: Enables PWM signal for Motor A
• In1: Input for Motor A lead out 1
• In2: Input for Motor A lead out 2
• In3: Input for Motor B lead out 1
• In4: Input for Motor B lead out 2
• EnB: Enables PWM signal for Motor B

Package Include:

• 1 x Motor Driver Module L298N For Arduino Dual H Bridge Motor Driver
