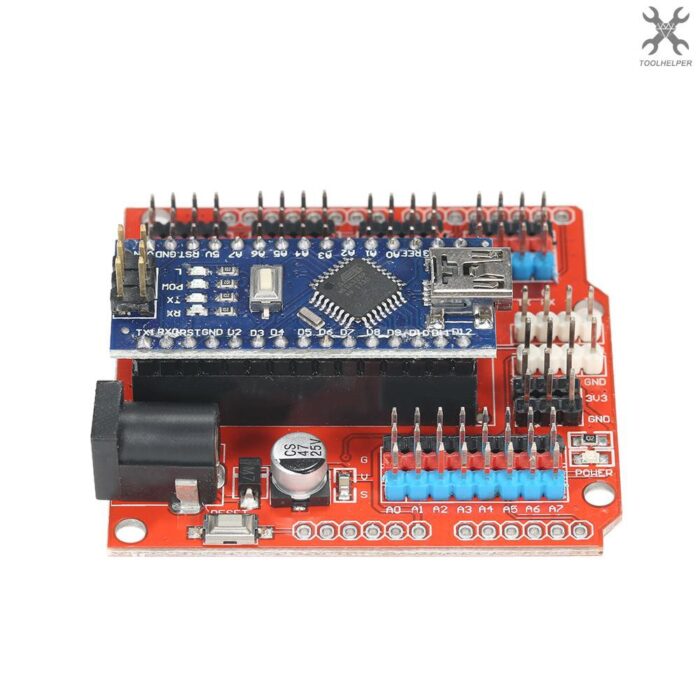

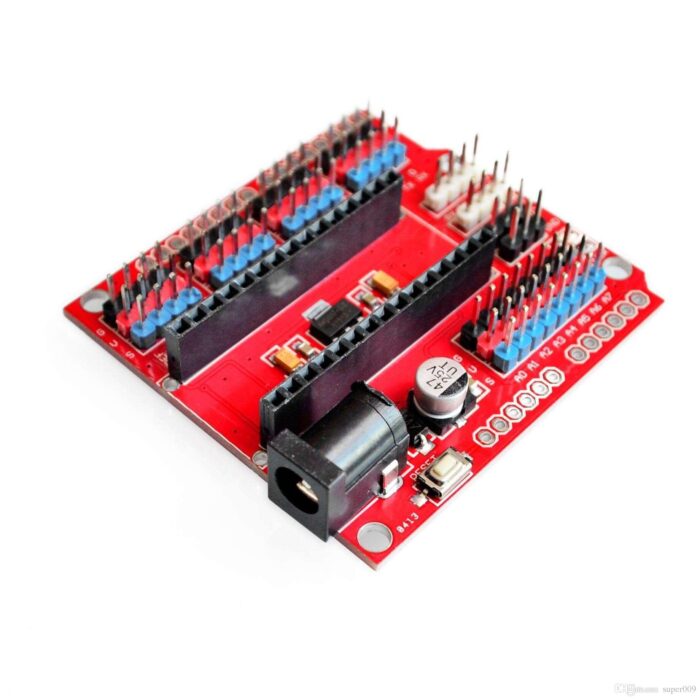

Arduino Nano Sensor Shield Nano I/O Expansion Board Prototype Shield In Pakistan
This Nano Multi-Function expansion board is designed especially for Nano, solves the problem of wiring confusing when a variety of sensors connected. Nano Breakout Board Lead out all digital IO port and analog IO port, each one with standard positive and negative power interface. Arduino Nano Sheild Lead out the I2C interface of the mainboard for a convenient connection. Arduino Nano Prototype Board is Increasing the DC power supply interface. Nano USB interface supply current is actually only 50MA, to bring high-current devices, such as the steering, is obviously insufficient. So in the DC power connector provide external power supply to ensure the stability of equipment operation.
Out of stock
₨350
Out of stock
This Nano Multi-Function expansion board is designed especially for Nano, solves the problem of wiring confusing when a variety of sensors connected. Nano Breakout Board Lead out all digital IO port and analog IO port, each one with standard positive and negative power interface. Arduino Nano Sheild Lead out the I2C interface of the mainboard for a convenient connection. Arduino Nano Prototype Board is Increasing the DC power supply interface. Nano USB interface supply current is actually only 50MA, to bring high-current devices, such as the steering, is obviously insufficient. So in the DC power connector provide external power supply to ensure the stability of equipment operation.

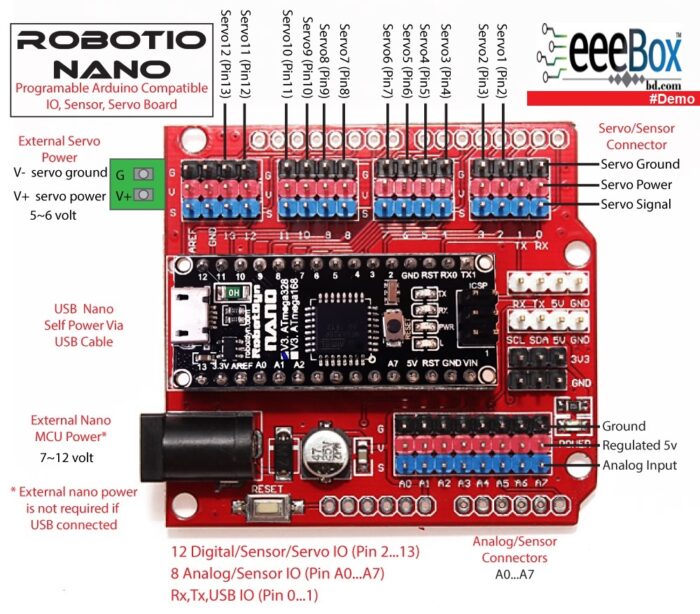

Specification of Arduino Nano Sensor Shield Nano I/O Expansion Board Prototype Shield:
- 14 I/O Pin (servo type with GND, power, and signal)
- 8 analog Pin with power output and GND
- 6 PWM Pin
- 1 Servo power input
- I2C expansion Pin
- AREF output
- 3.3V output
- Size: 6×5.3×1.3cm(approx)
- Power Jack, Power LED
- Reset Button
- FTDI 4 pins jack
- Standard Arduino pins
- More GVS extended pins.
- Increased DC Power supply Interface
Package Include:
- 1 x Arduino Nano Sensor Shield Nano I/O Expansion Board Prototype Shield In Pakistan
Based on 0 reviews
Be the first to review “Arduino Nano Sensor Shield Nano I/O Expansion Board Prototype Shield In Pakistan”
Related products
-
Arduino Boards
Arduino Nano V3 ATmega328P Development Board With USB Cable In Pakistan
Arduino Nano V3 is a small, complete, and breadboard-friendly board based on the ATmega328 (Arduino Nano 3. x). Arduino Nano board has more or less the same functionality as the Arduino UNO but in a different package. Arduino Nano programming module lacks only a DC power jack and works with a Mini-B USB cable instead of a standard one.
SKU: SH08 -
Arduino Boards

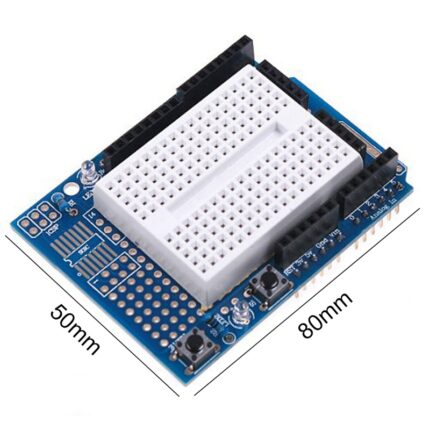

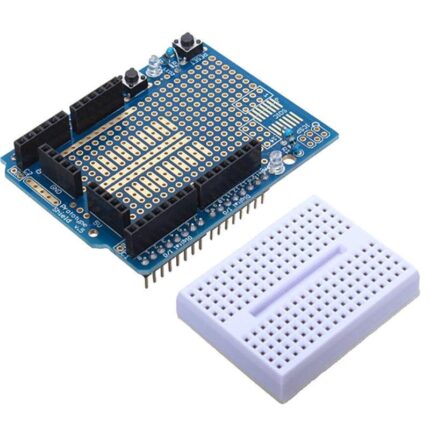

Arduino UNO Proto Shield With SYB-170 Mini Breadboard in Pakistan
