HC-SR501 PIR Motion Sensor Module in Pakistan

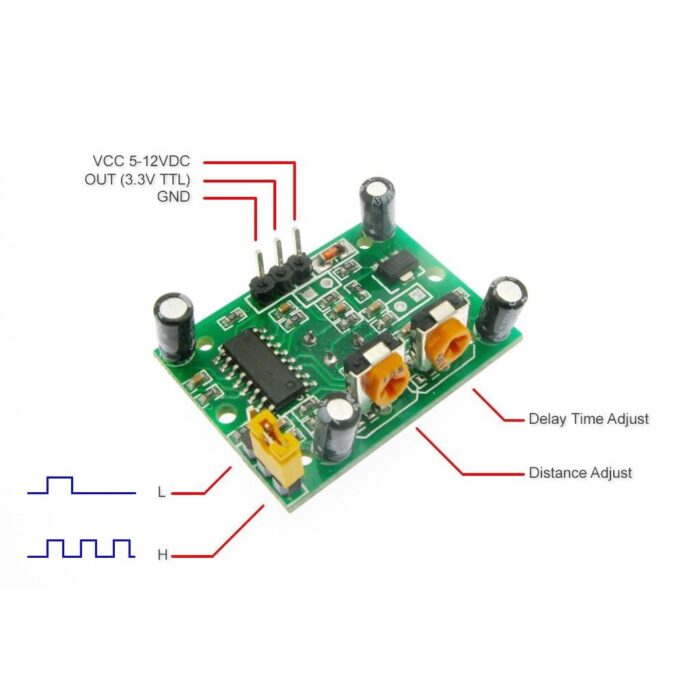

The PIR Motion Sensor Detector Module HC-SR501 allows you to sense motion. It is almost always used to detect the motion of a human body within the sensor’s range. It is often referred to using “PIR”, “Pyroelectric”, “Passive Infrared” and “IR Motion” sensor. The module has an onboard pyroelectric sensor, conditioning circuitry, and a dome-shaped Fresnel lens. It has a delay time adjustment Potentiometer and sensitivity adjustment Potentiometer. Repeat Trigger Selection solderable Jumper is also available.
₨180
The PIR Motion Sensor Detector Module HC-SR501 allows you to sense motion. It is almost always used to detect the motion of a human body within the sensor’s range. It is often referred to using “PIR”, “Pyroelectric”, “Passive Infrared” and “IR Motion” sensor. The module has an onboard pyroelectric sensor, conditioning circuitry, and a dome-shaped Fresnel lens. It has a delay time adjustment Potentiometer and sensitivity adjustment Potentiometer. Repeat Trigger Selection solderable Jumper is also available.
Specification of HC-SR501 PIR Motion Sensor Module:
- Infrared Sensor with Control Circuit Board
- The Sensitivity and Holding Time Can be Adjusted
- Blockade time: 2.5s (Default)
- Sensitive Setting: Turn to Right, Distance Increases (About 7M); Turn to Left, Distance Reduce (About 3M)
- Time Setting: Turn to Right, Time Increases (About 200S); Turn to Left, Time Reduce (About 5S).
Package Include:
- 1 x HC-SR501 PIR Motion Sensor Module in Pakistan
Based on 0 reviews
Be the first to review “HC-SR501 PIR Motion Sensor Module in Pakistan”
