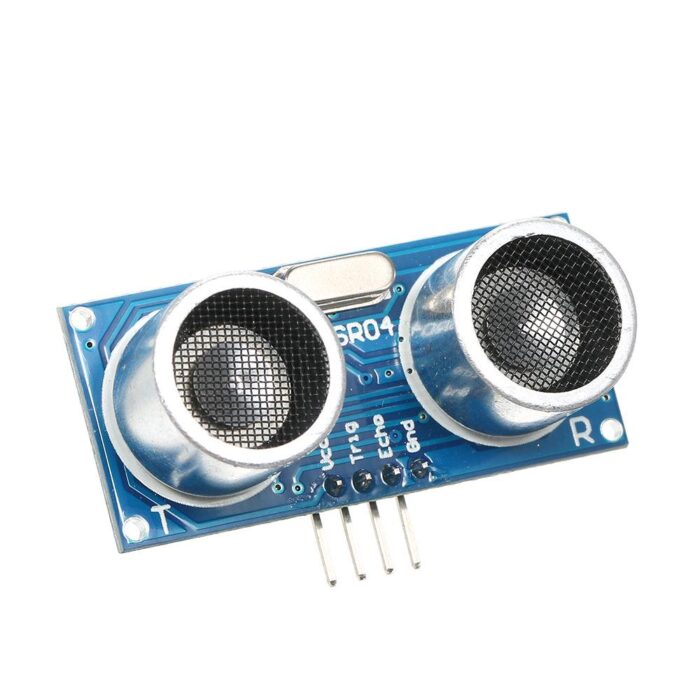

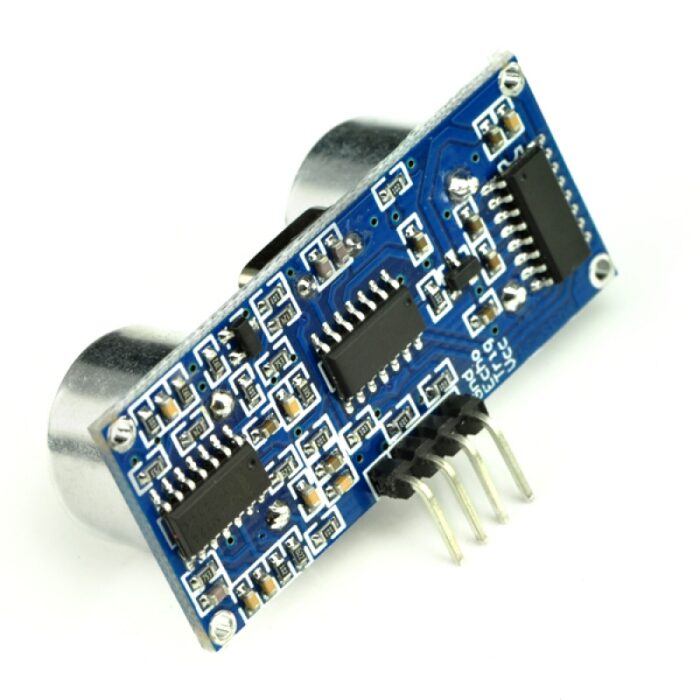

HC-SR04 HC SR04 Arduino Ultrasonic Sensor In Pakistan
HC SR04 HC-SR04 Ultrasonic Sensor also called HC-SR04 Ultrasonic Range Finder. Ultrasonic Sensor module HC-SR04 provides 2cm – 400cm non-contact measurement function, the ranging accuracy can reach to 3mm. The modules include ultrasonic transmitters, receiver and control circuit.
₨190
HC SR04 HC-SR04 Ultrasonic Sensor also called HC-SR04 Ultrasonic Range Finder. Ultrasonic Sensor module HC-SR04 provides 2cm – 400cm non-contact measurement function, the ranging accuracy can reach to 3mm. The modules include ultrasonic transmitters, receiver and control circuit.
Specification of HC-SR04 HC SR04 Arduino Ultrasonic Sensor:
- Power Supply: +5V DC
- Quiescent Current : <2mA
- Working Current: 15mA
- Effectual Angle: <15°
- Ranging Distance : 2cm – 400 cm/1″ – 13ft
- Resolution : 0.3 cm
- Measuring Angle: 30 degree
- Trigger Input Pulse width: 10uS minimum
- Dimension: 45mm x 20mm x 15mm
Package Include:
- 1 x HC-SR04 HC SR04 Arduino Ultrasonic Sensor In Pakistan
