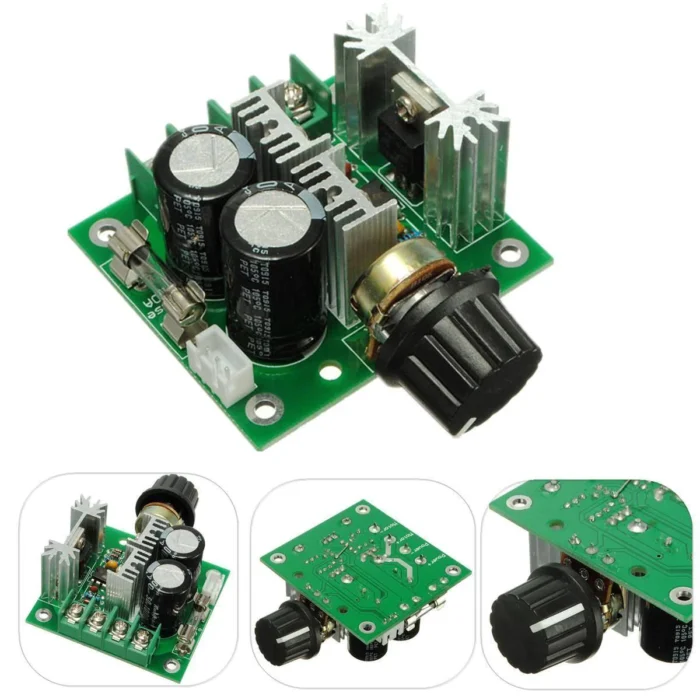

12V to 40V 10A 400W PWM DC Motor Speed Controller Dimmer Voltage Regulator In Pakistan

₨600

The DC Motor Speed ​​Controller allows the speed of a DC motor to be controlled using Pulse Width Modulated (PWM) DC voltage with a fully adjustable Duty Cycle from 10% to 100%. The motor speed controller can supply 8A continuous current to your DC motor or other DC load. The circuit also includes a 10A fuse, with a reverse power supply connection and control overvoltage protection function.

Compare
Add to wishlist
Compare
SKU: SH-244 Category:
Description

The DC Motor Speed ​​Controller allows the speed of a DC motor to be controlled using Pulse Width Modulated (PWM) DC voltage with a fully adjustable Duty Cycle from 10% to 100%. The motor speed controller can supply 8A continuous current to your DC motor or other DC load. The circuit also includes a 10A fuse, with a reverse power supply connection and control overvoltage protection function.

Specification of 12V to 40V 10A 400W PWM DC Motor Speed Controller Dimmer Voltage Regulator:

  1. Operating voltage: DC 12V-DC 40V
  2. Control power: 0.01 – 400W
  3. Rated current: 8A
  4. Max current: 10A
  5. Static current: 0.02A (standby)
  6. PWM duty cycle: 10%-100%
  7. PWM frequency: 13khz
  8. Operating temperature: -20°C~125°C

    Package Include:

    • 1 x 12V to 40V 10A 400W PWM DC Motor Speed Controller Dimmer Voltage Regulator In Pakistan
Additional information
Weight 0.3 kg
