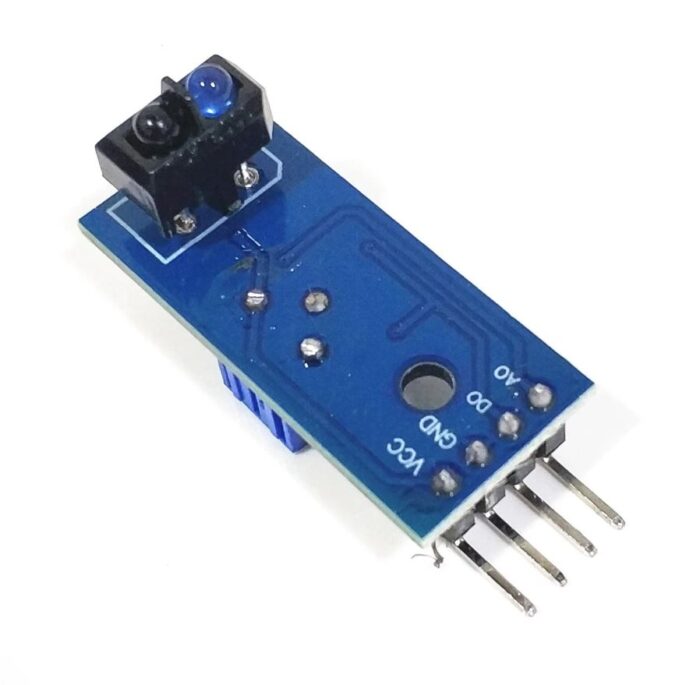

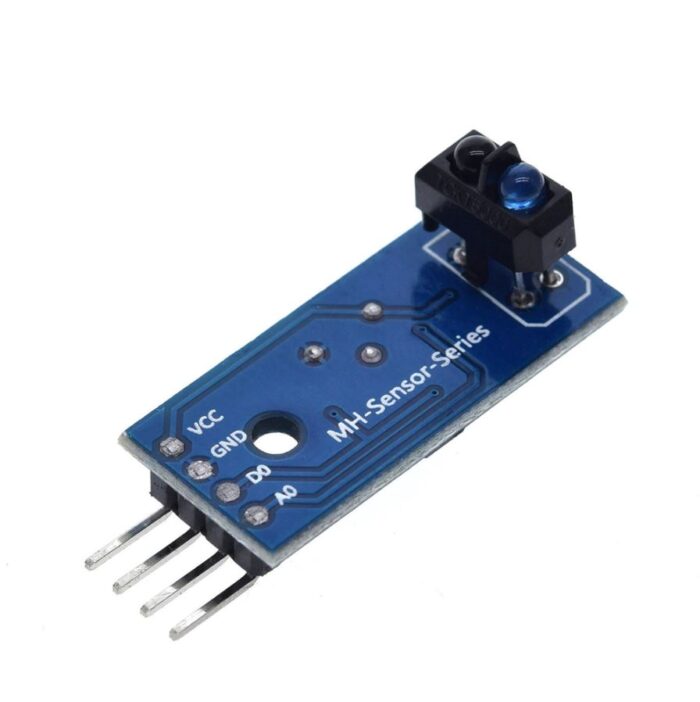

TCRT5000 TCRT 5000 Line Tracking sensor Module Line Following Sensor Module
The TCRT5000 and TCRT5000L are reflective sensors which include an infrared emitter and phototransistor in aleaded package which blocks visible light. The package includes two mounting clips. TCRT5000L is the long lead version.
₨140
The TCRT5000 and TCRT5000L are reflective sensors which include an infrared emitter and phototransistor in aleaded package which blocks visible light. The package includes two mounting clips. TCRT5000L is the long lead version.
Specification of TCRT5000 TCRT 5000 Line Tracking sensor Module Line Following Sensor Module:
- sensor adopts TR5000, high sensitivity
- sensitivity adjustable digital potentiometer to adjust (blue)
- modules can induction block from 0 to 3 cm
- 5 V working voltage of 3.3 V
- 5a output form the output analog voltage (0 to 5 v) B digital switch output (0 and 1)
- Has a fixed bolt hole, the work of the installation

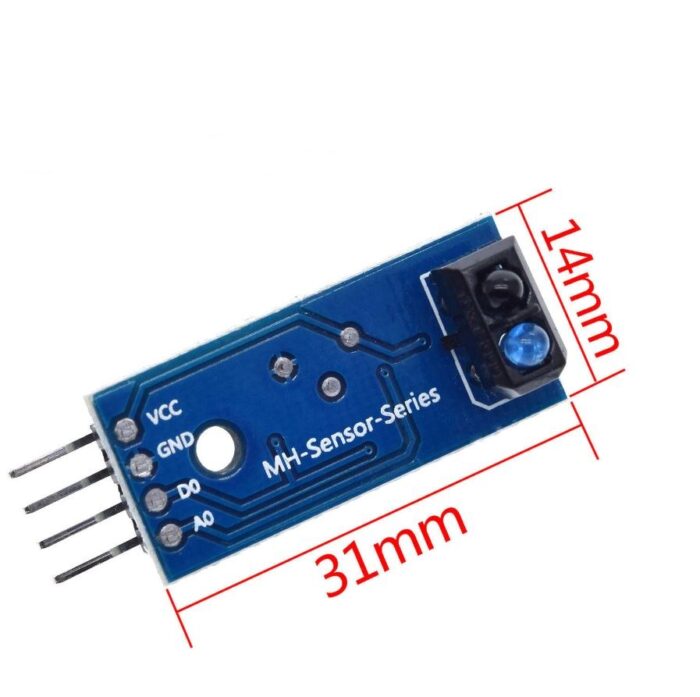

- Small board PCB size: 3.5 cm * 1.5 cm
- The power indicator light (red) and digital switch output indicator light (green)

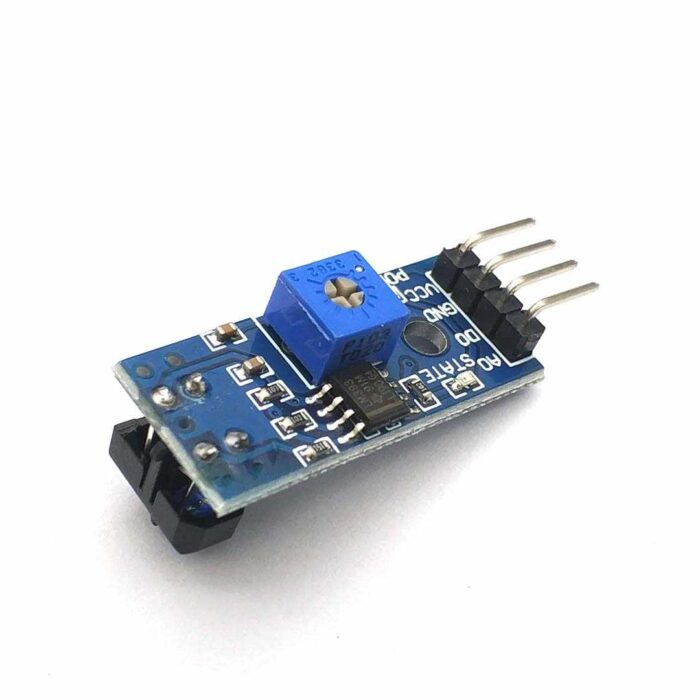

- Comparator USES the LM393 chips, work stability
- Three small plate interface specifications wire (4)
- 1 VCC external 3.3 V to 5 V
- 2 GND external GND
- 3 DO small plate digital output interface (0 and 1)
- 4 small AO plate analog output interface (0 to 5 v)
Package Include:
- 1 x TCRT5000 TCRT 5000 Line Tracking sensor Module Line Following Sensor Module
