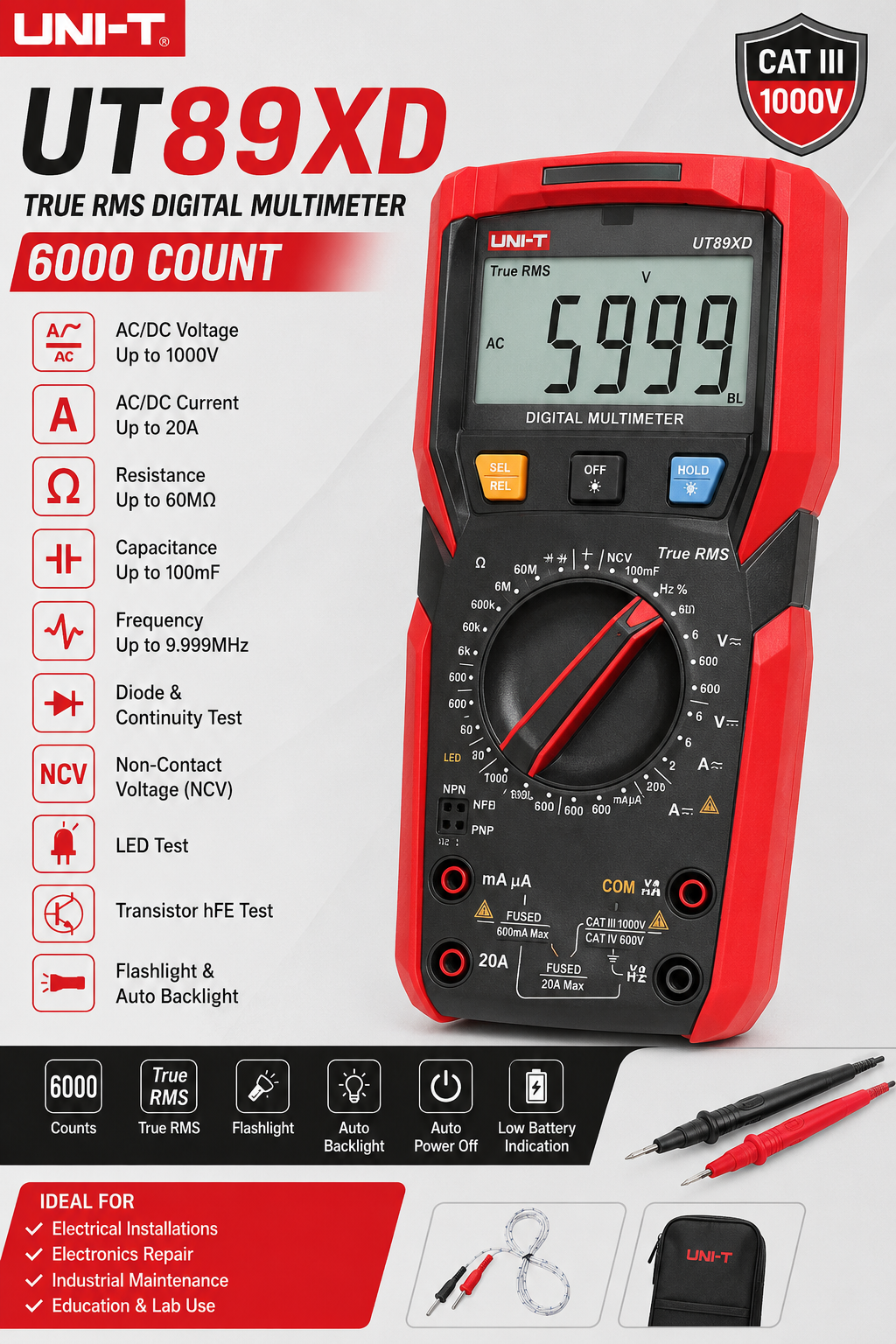

UNI-T UT89XD True RMS Digital Multimeter – 6000 Count, AC/DC 1000V, 20A, Capacitance, Temperature, LED Test, NCV, Flashlight, CAT III 1000V
₨7700
CompareThe UNI-T UT89XD True RMS Digital Multimeter is a reliable and versatile measuring tool designed for electricians, technicians, engineers, students, and electronics professionals. It features a 6000-count display, True RMS measurement, and supports AC/DC voltage measurements up to 1000V and current measurements up to 20A.
Its advanced functions include resistance, capacitance, frequency, duty cycle, diode testing, continuity testing, transistor hFE testing, LED testing, and dual-range NCV detection. The rugged ergonomic design, flashlight, and automatic backlight make it suitable for both professional and everyday electrical testing.
Key Features
- True RMS digital multimeter
- 6000-count large LCD display
- AC/DC voltage measurement up to 1000V
- AC/DC current measurement up to 20A
- Resistance measurement up to 60MΩ
- Capacitance measurement up to 100mF
- Frequency measurement up to 9.999MHz
- Duty cycle measurement
- Dedicated LED test function
- Dual-range NCV (Non-Contact Voltage) detection
- Diode and continuity testing
- Transistor hFE testing
- Audible and visual alarms
- Data hold function
- Automatic power-off
- Low battery indication
- Built-in flashlight
- Automatic backlight
- Ergonomic double-injection molded body
- 1-meter drop-resistant design
- Ideal for electrical, electronic, repair, and maintenance applications
Technical Specifications
| Specification | Range |
|---|---|
| Display Count | 6000 Counts |
| DC Voltage | 600mV / 6V / 60V / 600V / 1000V |
| AC Voltage | 6V / 60V / 600V / 1000V |
| DC Current | Up to 20A |
| AC Current | Up to 20A |
| Resistance | Up to 60MΩ |
| Capacitance | Up to 100mF |
| Frequency | 9.999Hz – 9.999MHz |
| Duty Cycle | 0.1% – 99.9% |
| True RMS | Yes |
| NCV Detection | Dual Range |
| LED Test | Yes |
| Diode Test | Yes |
| Continuity Test | Yes |
| Transistor hFE Test | Yes |
| Sampling Rate | 3 Times/Second |
| Flashlight | Yes |
| Auto Backlight | Yes |
The UNI-T UT89XD is a powerful choice for accurate electrical and electronic measurements, combining essential testing functions with a durable and user-friendly design.
| Weight | 0.5 kg |
|---|
MAECENAS IACULIS
Vestibulum curae torquent diam diam commodo parturient penatibus nunc dui adipiscing convallis bulum parturient suspendisse parturient a.Parturient in parturient scelerisque nibh lectus quam a natoque adipiscing a vestibulum hendrerit et pharetra fames nunc natoque dui.
ADIPISCING CONVALLIS BULUM
- Vestibulum penatibus nunc dui adipiscing convallis bulum parturient suspendisse.
- Abitur parturient praesent lectus quam a natoque adipiscing a vestibulum hendre.
- Diam parturient dictumst parturient scelerisque nibh lectus.
Scelerisque adipiscing bibendum sem vestibulum et in a a a purus lectus faucibus lobortis tincidunt purus lectus nisl class eros.Condimentum a et ullamcorper dictumst mus et tristique elementum nam inceptos hac parturient scelerisque vestibulum amet elit ut volutpat.
Related products

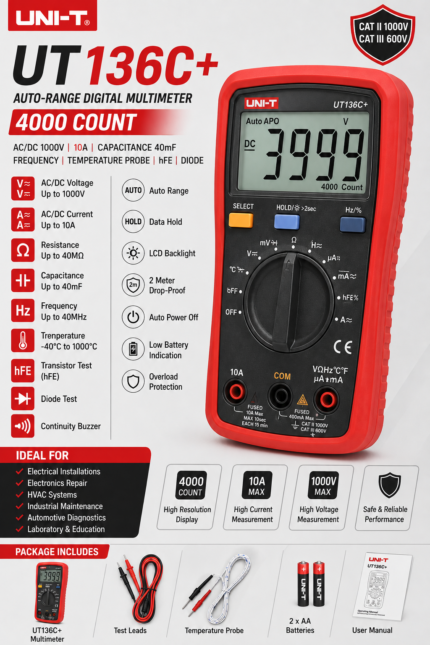

UNI-T UT136C+ Auto-Range Digital Multimeter – 4000 Count, AC/DC 1000V, 10A In Pakistan
Why Choose UNI-T UT136C+?
The UNI-T UT136C+ combines essential electrical measurement functions with a durable and user-friendly design. Its 1000V measurement capability, 10A current range, temperature measurement, 40mF capacitance range, and 2-meter drop-proof protection make it a practical choice for professional technicians and electronics users.

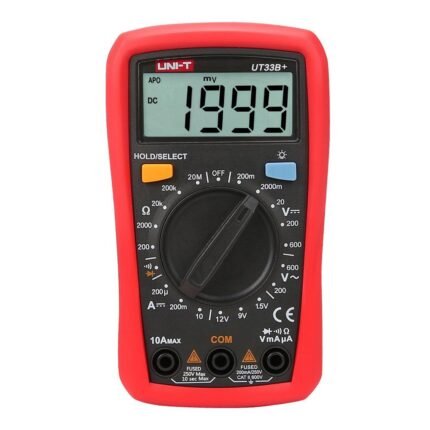

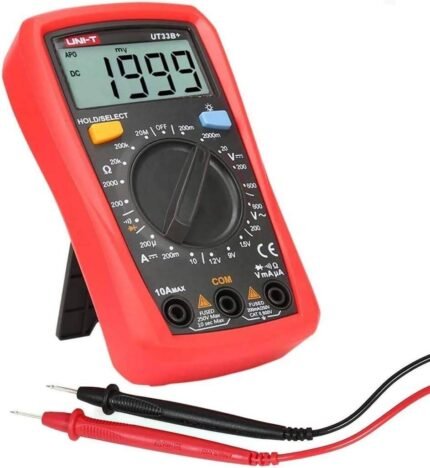

UNI-T UT33B+ Palm Size Digital Multimeter – 2000 Count, AC/DC Voltage & Current, Battery Test, Resistance, Diode & Continuity, CAT II 600V, 2m Drop-Proof In Pakistan
