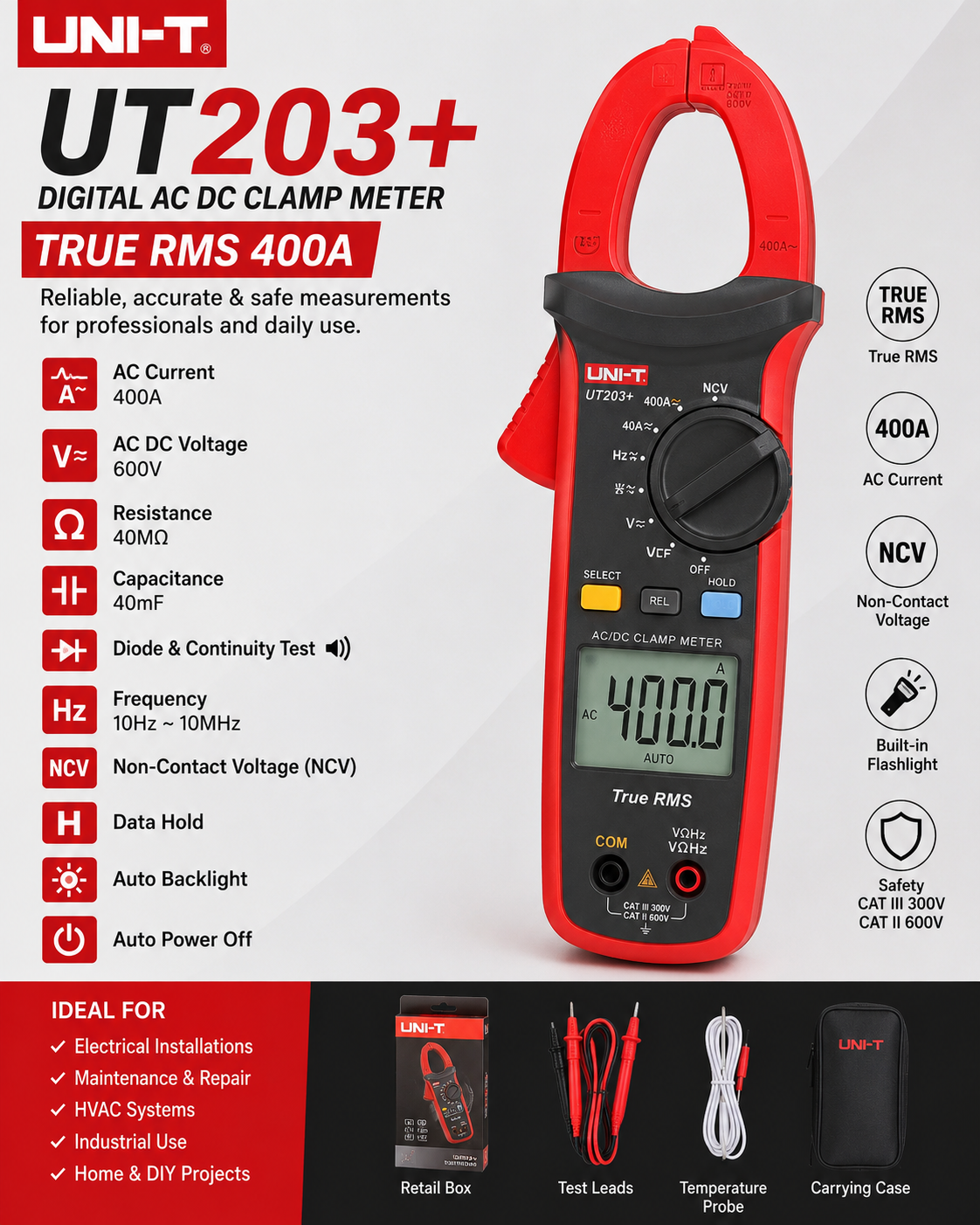

UNI-T UT203+ Digital AC/DC Clamp Meter True RMS 400A in Pakistan
₨7600
Buy UNI-T UT203+ Digital AC/DC Clamp Meter True RMS 400A in Pakistan. Features 600V AC/DC voltage, 40MΩ resistance, 40mF capacitance, NCV, 28mm jaw and 4000-count display.
The UNI-T UT203+ Digital AC/DC Clamp Meter is a professional True RMS clamp meter designed for accurate electrical measurements. It can measure both AC and DC current up to 400A without disconnecting the circuit, making it an ideal tool for electricians, technicians, engineers, HVAC professionals, and industrial maintenance work.
The UT203+ features a 4000-count LCD display, 28mm jaw opening, automatic ranging, and a wide range of measurement functions. It supports AC/DC voltage, AC/DC current, resistance, capacitance, frequency, duty cycle, diode testing, continuity testing, NCV detection, and more.
Key Features
- True RMS measurement for improved accuracy
- AC/DC current measurement up to 400A
- AC/DC voltage measurement up to 600V
- 4000-count digital LCD display
- 28mm clamp jaw opening
- Auto range function
- Non-Contact Voltage (NCV) detection
- Resistance measurement up to 40MΩ
- Capacitance measurement up to 40mF
- Frequency measurement up to 10MHz
- AC voltage frequency measurement up to 60kHz
- Duty cycle measurement
- Diode test function
- Continuity buzzer
- MAX/MIN measurement
- Relative measurement mode
- Zero mode
- Data hold function
- LCD backlight
- Low battery indication
- Automatic power-off
- Overload protection
- Compact and ergonomic design
Technical Specifications
| Specification | Range |
|---|---|
| Model | UNI-T UT203+ |
| Display Count | 4000 Counts |
| True RMS | Yes |
| AC Current | 40A / 400A |
| DC Current | 40A / 400A |
| AC Voltage | Up to 600V |
| DC Voltage | 400mV / 4V / 40V / 400V / 600V |
| Resistance | Up to 40MΩ |
| Capacitance | Up to 40mF |
| Frequency | 10Hz – 10MHz |
| AC Voltage Frequency | 10Hz – 60kHz |
| Duty Cycle | Yes |
| Jaw Opening | 28mm |
| NCV | Yes |
| Diode Test | Yes |
| Continuity Test | Yes |
| Auto Range | Yes |
| MAX/MIN | Yes |
| Relative Mode | Yes |
| Zero Mode | Yes |
| Data Hold | Yes |
| Backlight | Yes |
| Auto Power Off | Yes |
| Low Battery Indication | Yes |
| Power Supply | 2 × AAA 1.5V Batteries |
| Product Size | 215 × 63 × 36mm |
| Net Weight | Approximately 235g |
| Safety Rating | CAT II 600V / CAT III 300V |
Applications
The UNI-T UT203+ Clamp Meter is suitable for:
- Electrical installation
- Industrial maintenance
- HVAC systems
- Residential electrical work
- Electronics repair
- Automotive electrical testing
- Power distribution testing
- AC/DC current measurement
- Professional and technical applications
Package Includes
- 1 × UNI-T UT203+ Clamp Meter
- 1 × Pair of Test Leads
- 1 × Carrying Bag
- 2 × AAA Batteries
- 1 × User Manual
Why Choose UNI-T UT203+?
The UNI-T UT203+ offers a combination of True RMS accuracy, AC/DC current measurement, 400A capacity, NCV detection, auto ranging, and essential electrical testing functions. Its compact clamp design allows users to measure current conveniently and safely in electrical installations and maintenance applications.
| Weight | 0.5 kg |
|---|
