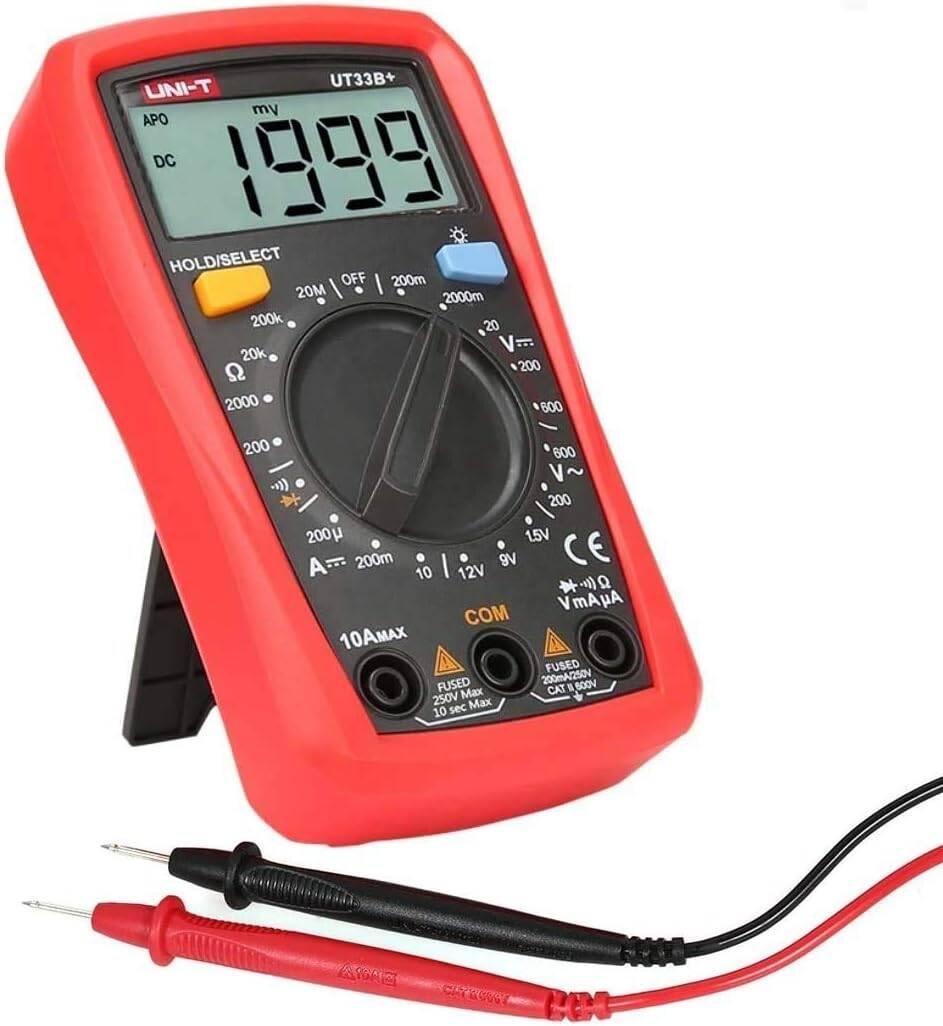

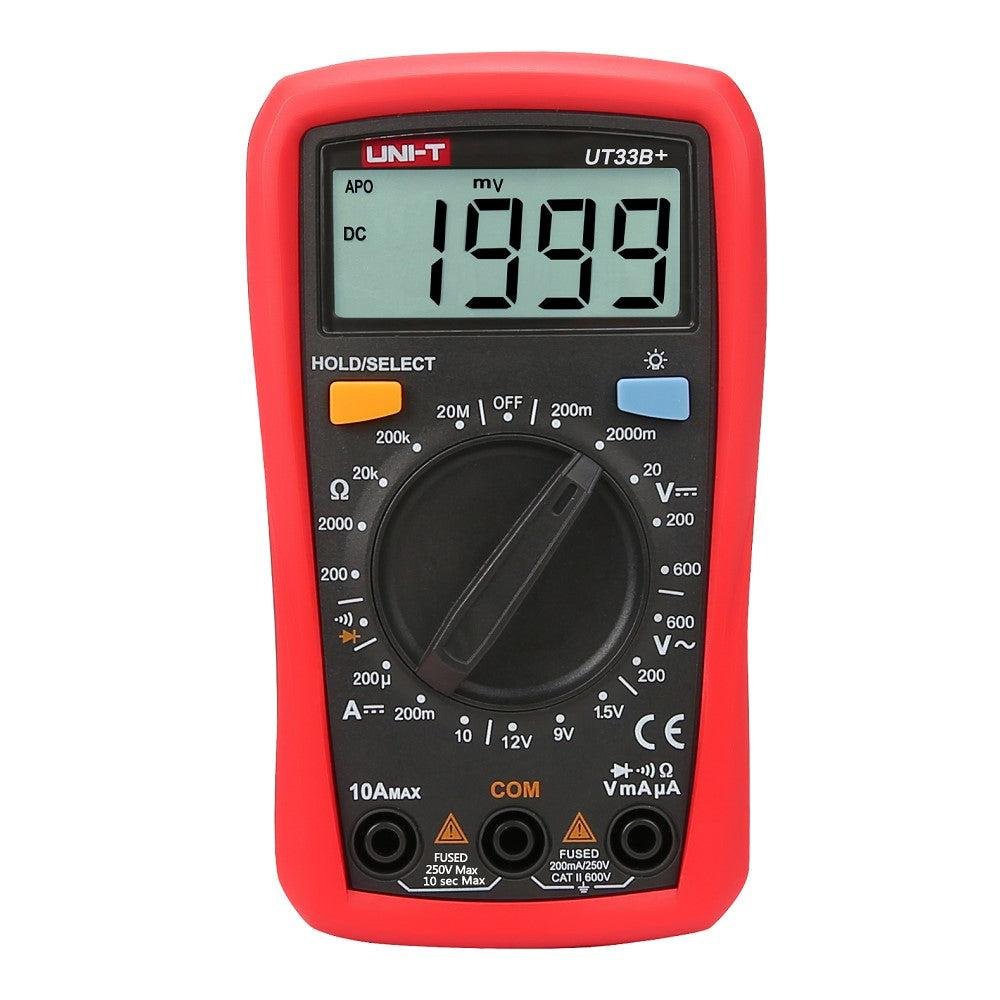

UNI-T UT33B+ Palm Size Digital Multimeter – 2000 Count, AC/DC Voltage & Current, Battery Test, Resistance, Diode & Continuity, CAT II 600V, 2m Drop-Proof In Pakistan
₨2300
The UNI-T UT33B+ Palm Size Digital Multimeter is a compact, durable and easy-to-use measuring instrument designed for electrical and electronic testing. It features a clear 2000-count LCD display, manual range selection, DC voltage, AC voltage, DC current, resistance, diode and continuity testing. Its dedicated 1.5V / 9V / 12V battery test function makes it especially useful for checking common batteries. The UT33B+ also features CAT II 600V safety rating, 2-meter drop protection, automatic power-off and an ergonomic protective design.
Product Description
The UNI-T UT33B+ is a practical palm-size digital multimeter suitable for technicians, electricians, students, hobbyists and electronics repair work. Its compact design makes it easy to carry and use in workshops, laboratories, homes and field applications.
With a 2000-count LCD display and manual range selection, the UT33B+ provides essential measurement functions for everyday electrical troubleshooting. It can measure DC voltage up to 600V, AC voltage up to 600V, DC current up to 10A and resistance up to 20MΩ. It also includes diode testing, continuity buzzer and a dedicated battery-testing function for 1.5V, 9V and 12V batteries.
The meter is built with a protective housing designed for a 2-meter drop test, while its CAT II 600V safety classification provides appropriate protection for its intended measurement category.
Key Features
- Genuine UNI-T UT33B+ Digital Multimeter
- Compact palm-size design
- 2000-count LCD display
- Manual range selection
- DC voltage measurement up to 600V
- AC voltage measurement up to 600V
- DC current measurement up to 10A
- Resistance measurement up to 20MΩ
- Dedicated 1.5V / 9V / 12V battery test
- Diode testing
- Continuity buzzer
- High-volume buzzer
- Automatic power-off
- Automatic backlight-off
- 2-meter drop-proof design
- Integrated test-probe holder
- Comfortable protective cover
- Ergonomic rotary function switch
- CAT II 600V safety rating
- Lightweight and portable design
Technical Specifications
| Specification | UNI-T UT33B+ |
|---|---|
| Brand | UNI-T |
| Model | UT33B+ |
| Product Type | Digital Multimeter |
| Display | LCD |
| Display Count | 2000 |
| Measurement Type | Average responding |
| Range Selection | Manual |
| DC Voltage | 200mV / 2V / 20V / 200V / 600V |
| DC Voltage Accuracy | ±(0.5% + 2) |
| AC Voltage | 200V / 600V |
| AC Voltage Accuracy | ±(1.2% + 3) |
| DC Current | 200µA / 200mA / 10A |
| DC Current Accuracy | ±(1% + 2) |
| Resistance | 200Ω / 2kΩ / 20kΩ / 200kΩ / 20MΩ |
| Resistance Accuracy | ±(0.8% + 2) |
| Battery Test | 1.5V / 9V / 12V |
| Diode Test | Yes |
| Continuity Test | Yes |
| Continuity Buzzer | Yes |
| Auto Power Off | Yes |
| Auto Backlight Off | Yes |
| Drop Test | 2m |
| Safety Rating | CAT II 600V |
| NCV | No |
| Power Supply | 2 × 1.5V AAA/R03 batteries |
| Display Size | 66 × 51mm |
| Product Dimensions | 134 × 77 × 47mm |
| Net Weight | Approx. 206g including batteries |
| Product Color | Red & Grey |
| Range Type | Manual |
Specifications based on UNI-T’s UT33+ series documentation.
Measurement Functions
DC Voltage Measurement
Measures DC voltage across multiple ranges from 200mV to 600V, making the UT33B+ suitable for batteries, power supplies and general DC circuits.
AC Voltage Measurement
Provides AC voltage measurement on 200V and 600V ranges, suitable for common electrical testing applications.
DC Current Measurement
The meter supports DC current measurement through 200µA, 200mA and 10A ranges.
Resistance Measurement
Resistance can be measured from low-resistance ranges up to 20MΩ, useful for checking resistors, wiring and electronic components.
Battery Test
One of the UT33B+’s useful features is its dedicated battery test function for 1.5V, 9V and 12V batteries. The battery test can indicate battery condition as Good, Low or Bad.
Diode Test
The built-in diode test function allows users to check the forward voltage behavior of diodes and other suitable semiconductor components.
Continuity Test
The continuity buzzer provides an audible indication when checking electrical connections, wiring and possible open circuits.
Design & Protection
The UT33B+ is designed as a compact handheld meter with a protective outer cover and an integrated test-lead storage/holder arrangement. Its housing is designed to withstand a 2-meter drop test, helping protect the instrument during everyday workshop and field use.
The meter carries a CAT II 600V safety classification for its intended measurement environment.
Applications
The UNI-T UT33B+ is suitable for:
- Electrical troubleshooting
- Electronics repair
- Home electrical testing
- Battery checking
- Circuit testing
- Continuity checking
- Diode testing
- Resistance measurement
- DC voltage testing
- AC voltage testing
- Educational electronics projects
- DIY electronics
- Workshop maintenance
- Technician and electrician use
- Field service applications
Why Choose UNI-T UT33B+?
- Compact and easy to carry
- Simple manual operation
- Essential electrical measurement functions
- Dedicated battery-testing function
- Clear LCD display
- Durable 2m drop-tested housing
- CAT II 600V safety rating
- Suitable for technicians and DIY users
- UNI-T quality and professional test-equipment design
Package Includes
- 1 × UNI-T UT33B+ Digital Multimeter
- 1 × Pair Test Leads
- 2 × 1.5V Batteries
- 1 × English User Manual
UNI-T lists batteries, test leads and the English manual among the standard UT33+ series accessories; the K-type thermocouple is listed for the UT33C+, not the UT33B+.
