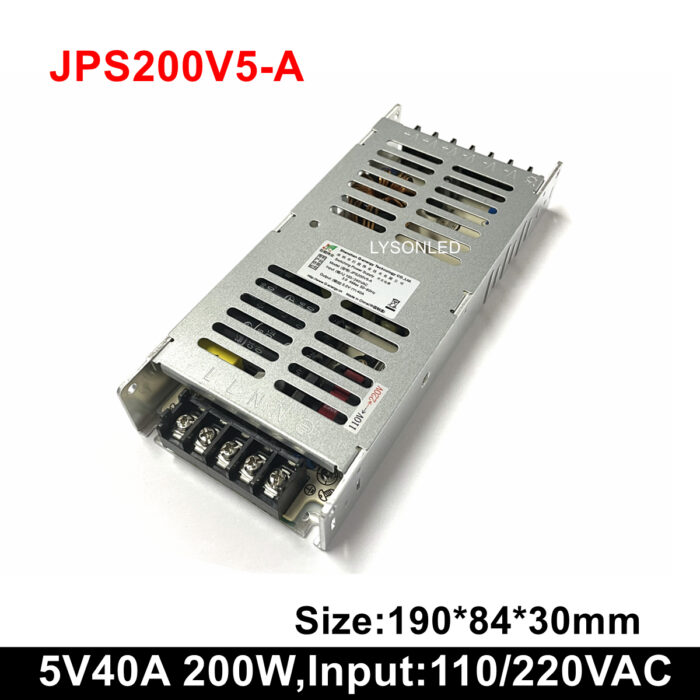

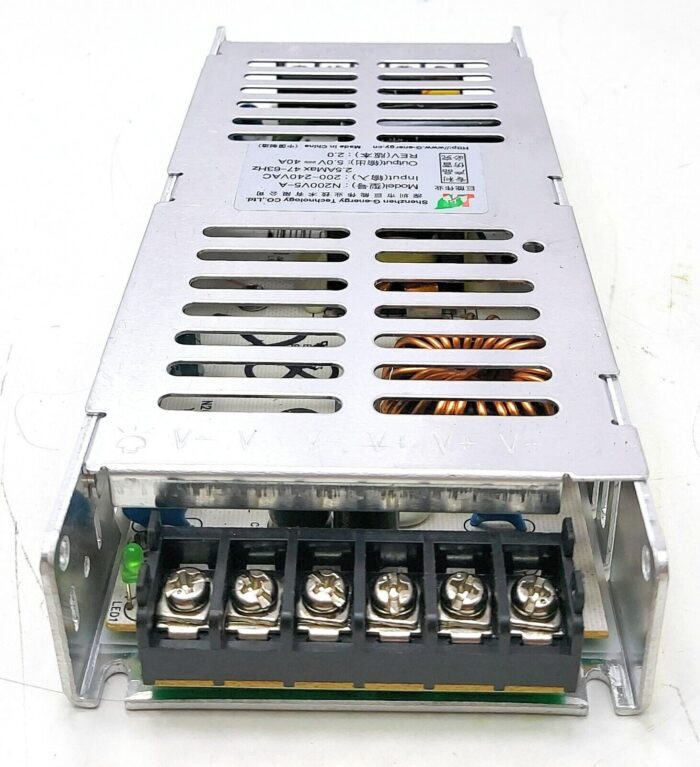

G-Energy N200V5-A 5V40A 200W led display screen power supply In Pakistan
A power supply is an electrical device that supplies electric power to an electrical load. The primary function of a power supply is to convert electric current from a source to the correct voltage, current, and frequency to power the load.
₨2200
Input voltage:200-240Vac, 47-63Hz
Output power:200W
Power factor:0.50@230Vac
Insulation voltage: I/P-O/P:3.0KVac;I/P-FG:
font-size: 15px;”>Leakage current:0.30mA@230Vac
font-size: 15px;”>Protection function: input under voltage, overload, short circuit
Working temperature: -30~+60
Safety standards:GB4943,EN60950
The cooling way: from the cold
Size:190X84X30
– Low cost ,high reliablity, strong load capability
– Built-in EMI filter
– Low output ripple & noise
– Ultrathin, Small, Make the LED display
– Thinner and less weight
– Protections: Over Load/Short Circuit
– 100% full load high temperature burn-in test
– Input ports , connect 200-230V electronic
L = Positive N = Negative ,rest one connect ground wire
– Output ports , connect 5V power line( for modules and controller)
V+ = Positive V- = Negative
– Normally one set 200w switch power supply can control 4-6pcs module
