Xh-M603 Battery Charging Control Module DC 12V-24v Voltage Charging Discharge Monitor Relay Switch Battery Protection Board in Pakistan

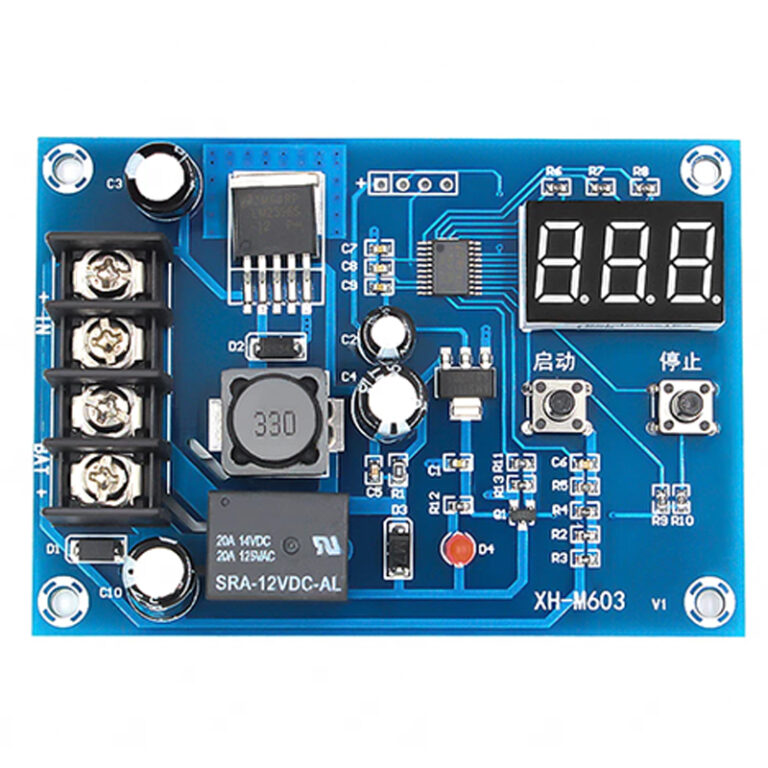

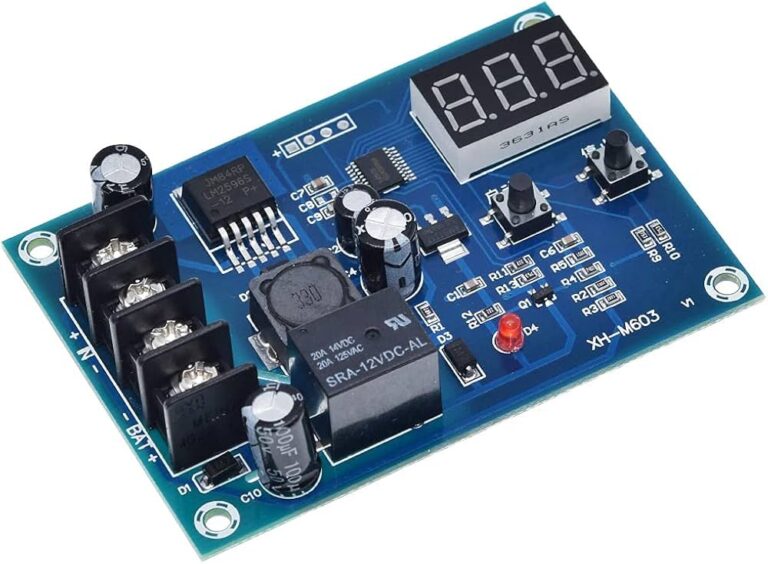

The XH-M603 is a PCB control module used to charge lithium batteries, Lead-acid, nickel-cadmium, nickel-metal hydride, lithium-ion, and polymer. You can assemble your own Lithium battery charger by using this charger module. The 12v-24v Battery Protection Module can also be used for solar panels. The XH-M603 module is perfect for building a battery charging station, offering a range of protection features and easy-to-set min/max charging voltages. As soon as the desired battery float voltage is reached, the charging circuit is disconnected.

850

Description

The XH-M603 is a PCB control module used to charge lithium batteries, Lead-acid, nickel-cadmium, nickel-metal hydride, lithium-ion, and polymer. You can assemble your own Lithium battery charger by using this charger module. The 12v-24v Battery Protection Module can also be used for solar panels. The XH-M603 module is perfect for building a battery charging station, offering a range of protection features and easy-to-set min/max charging voltages. As soon as the desired battery float voltage is reached, the charging circuit is disconnected.

Features Of LED Display Automatic ON/OFF Real-Time Voltage Monitor Battery Protection Module:

  1. Automatic control circuit connection
  2. Automatic charging and power off
  3. Real-time voltage monitor
  4. Auto save the setting
  5. ST core chip
  6. LM2596 switch voltage regulator

Specifications Of XH-M603 DC 12-24V Charging Control Module Storage Lithium Battery Charger Control Switch Protection Board:

  • Model: XH-M603
  • Input Voltage: DC 10-30V
  • Display Precision:0.1V
  • Control Precision:0.1V
  • Output Type: direct output
  • Voltage Tolerance:+/-0.1V
  • Application Fields:12-24V storage battery
  • Size;82*58*18mm

Application Scope:

12-24V storage battery (Applicable to solar cells, new energy batteries, Lead-acid batteries, nickel-cadmium batteries, nickel-metal hydride batteries, lithium-ion batteries, polymer batteries, Car batteries, electric car batteries)

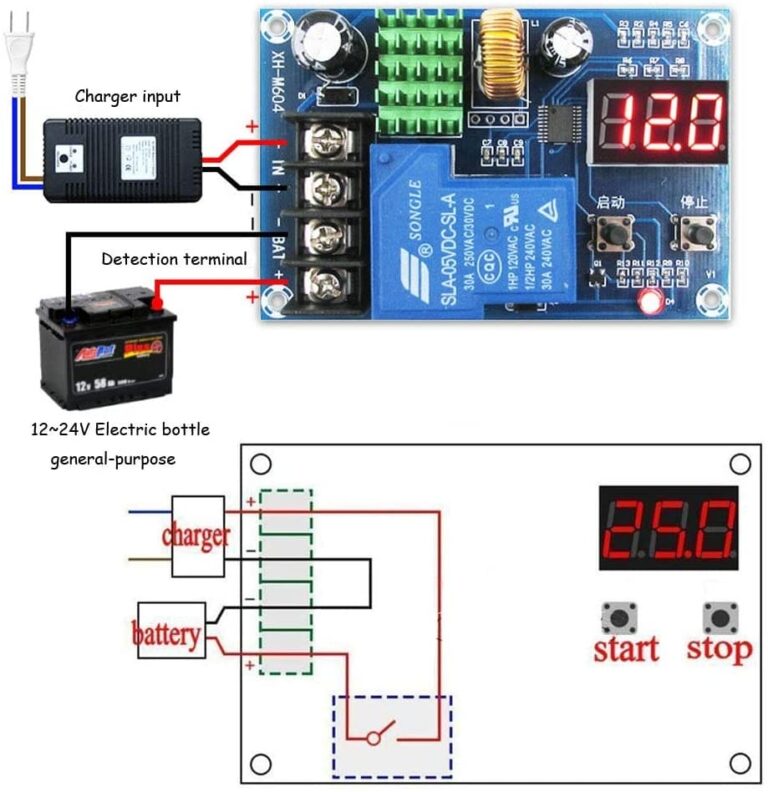

Using Method:

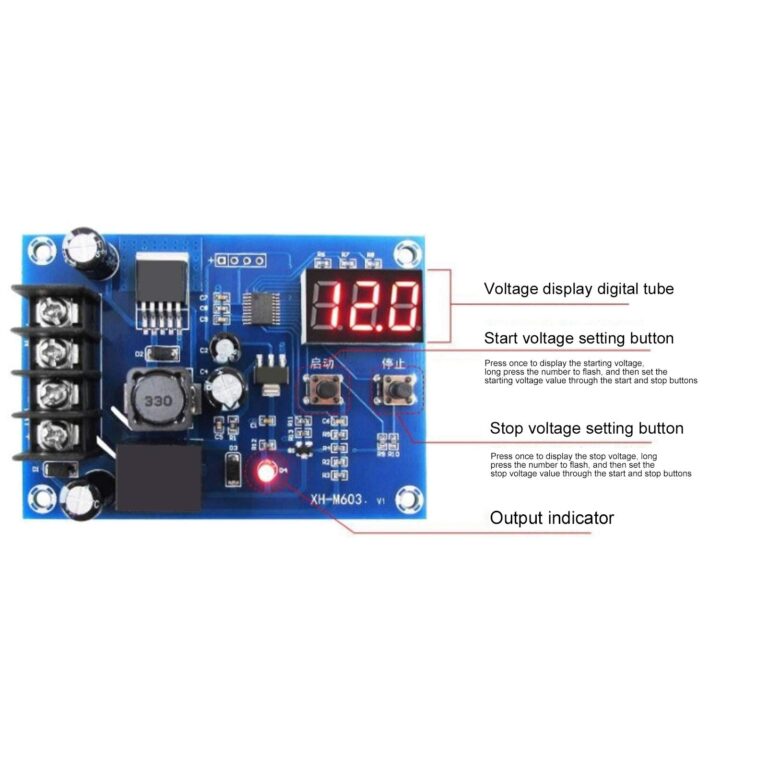

  1. Set Starting Voltage: in a normal display voltage state, pressing the button will display the start charging voltage; long press for 3s the digital tube will flash you can start or stop the button to set starting up charge voltage value.
  2. Set Stop Voltage: in a normal display voltage state, pressing the button will display the stopping charge voltage; long-press the button for 3s the digital tube will flash; you can start or stop the button to set the stopping charge voltage value.
  3. Factory Reset: in the power-on state press the start/stop button at the same time, the digital tube will display 888; which represents factory reset settings.

Package includes:

  • 1 x XH-M603 battery lithium battery charging control module
