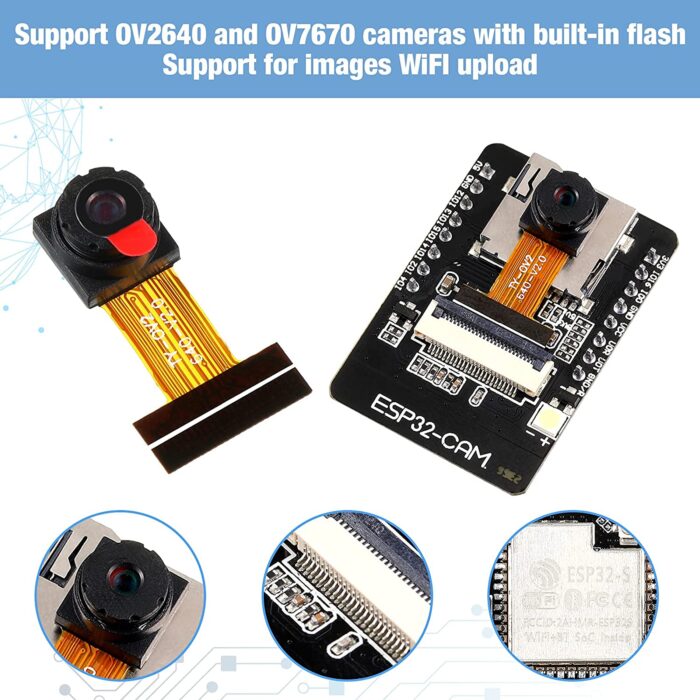

ESP32-CAM WiFi + Bluetooth Camera Module Development Board ESP32 With Camera Module OV2640 For Arduino In Pakistan
ESP32-CAM is a WIFI+ Bluetooth dual-mode development board that uses PCB on-board antennas and cores based on ESP32 chips. It can work independently as a minimum system.ESP integrates WiFi, traditional Bluetooth, and BLE Beacon, with 2 high-performance 32-bit LX6 CPUs, 7-stage pipeline architecture, main frequency adjustment range 80MHz to 240MHz, on-chip sensor, Hall sensor, temperature sensor, etc. Fully compliant with WiFi 802.11b/g/n/e/i and Bluetooth 4.2 standards, it can be used as a master mode to build an independent network controller, or as a slave to other hosts MCUs to add networking capabilities to existing devices.ESP32-CAM can be widely used in various IoT applications. It is suitable for home smart devices, industrial wireless control, wireless monitoring, QR wireless identification, wireless positioning system signals, and other IoT applications. It is an ideal solution for IoT applications.
₨1500
ESP32-CAM is a WIFI+ Bluetooth dual-mode development board that uses PCB on-board antennas and cores based on ESP32 chips. It can work independently as a minimum system.ESP integrates WiFi, traditional Bluetooth, and BLE Beacon, with 2 high-performance 32-bit LX6 CPUs, 7-stage pipeline architecture, main frequency adjustment range 80MHz to 240MHz, on-chip sensor, Hall sensor, temperature sensor, etc. Fully compliant with WiFi 802.11b/g/n/e/i and Bluetooth 4.2 standards, it can be used as a master mode to build an independent network controller, or as a slave to other hosts MCUs to add networking capabilities to existing devices.ESP32-CAM can be widely used in various IoT applications. It is suitable for home smart devices, industrial wireless control, wireless monitoring, QR wireless identification, wireless positioning system signals, and other IoT applications. It is an ideal solution for IoT applications.

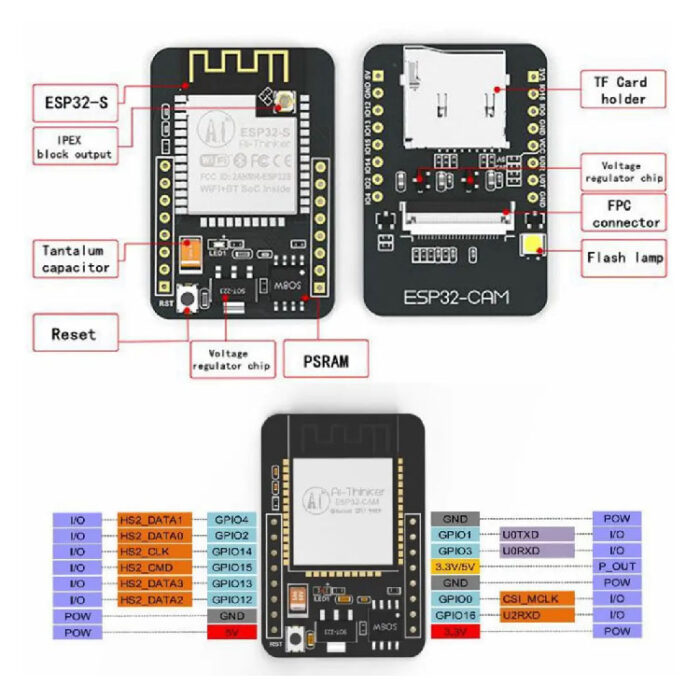

Specification of ESP32-CAM WiFi + Bluetooth Camera Module Development Board ESP32 With Camera Module OV2640 For Arduino:
-
Module model
ESP32-CAM Package DIP-16 Size 27*40.5*4.5(±0.2)mm SPI Flash default 32Mbit RAM internal520KB+external 4M PSRAM Bluetooth bluetooth4.2BR/EDR and BLE standards Wi-Fi 802.11 b/g/n/e/i Support interface UART, SPI, I2C, PWM Support TF card Maximum support 4G IO port 9 Serial port rate default 115200 bps Image output format JPEG (only supported by OV2640), BMP, GRAYSCALE Spectrum range 2412 ~ 2484MHz Antenna form onboard PCB antenna, gain 2dBi Transmit power 802.11b: 17±2 dBm (@11Mbps)
802.11g: 14±2 dBm (@54Mbps)
802.11n: 13±2 dBm (@MCS7)Receiving sensitivity CCK, 1 Mbps : -90dBm
CCK, 11 Mbps: -85dBm
6 Mbps (1/2 BPSK): -88dBm
54 Mbps (3/4 64-QAM): -70dBm
MCS7 (65 Mbps, 72.2 Mbps): -67dBmPower consumption Turn off the flash: 180mA@5V
Turn on the flash and adjust the brightness to the maximum: 310mA@5V
Deep-sleep: The lowest power consumption can reach 6mA@5V
Modern-sleep: up to 20mA@5V
Light-sleep: up to 6.7mA@5VSecurity WPA/WPA2/WPA2-Enterprise/WPS Power supply range 5V Operating temperature -20 °C ~ 85 °C Storage environment -40 °C ~ 90 °C, < 90%RH
Package Include:
- 1 x ESP32-CAM WiFi + Bluetooth Camera Module Development Board ESP32 With Camera Module OV2640 For Arduino In Pakistan
