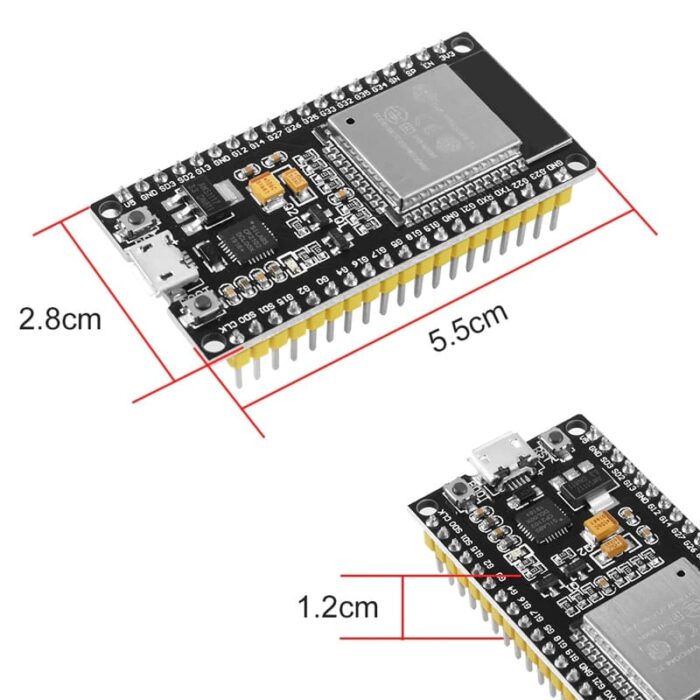

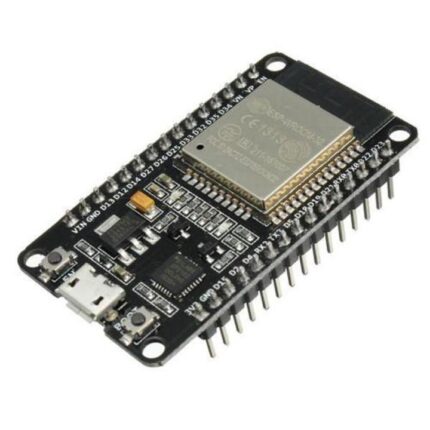

38 Pin Nodemcu ESP32S Microcontroller WiFi & Bluetooth ESP WROOM 32 Development Board Module In Pakistan
₨1150
This is an IoT board that can be used as a client mode where collected sensor data can be sent to the server using WiFi protocol. Or, used as the main server to control Led, relay or any output that is connected to this board. This board is fully supported by the Arduino IDE program.
Description
This is an IoT board that can be used as a client mode where collected sensor data can be sent to the server using WiFi protocol. Or, used as the main server to control Led, relay or any output that is connected to this board. This board is fully supported by the Arduino IDE program.
Specification of 38 Pin Nodemcu ESP32S Microcontroller WiFi & Bluetooth ESP WROOM 32 Development Board Module:
- Type: Wifi + Bluetooth module
- Model: ESP32 38 pins
- Power voltage (USB): 5V DC
- Input/Output voltage: 3.3V DC
- Power consumption: 5μA in suspension mode
- Main CPU: Tensilica Xtensa 32-bit LX6
- Performance: Up to 600 DMIPS
- Clock frequency: up to 240Mhz
- Secondary processor: allows for basic operations in ultra low-consumption mode
- Wifi: 802.11 b/g/n/e/i (802.11n @ 2.4 GHz up to 150 Mbit/s)
- Bluetooth: 4.2 BR/EDR BLE dual control mode
- Memory: 448 KByte ROM, 520 KByte SRAM, 6 KByte SRAM on RTC and QSPI supports multiple flash / SRAM chips
- Chip USB-Serial: CP2102
- Antenna: PCB
- GPIO digital pins: 24 (some pins only as input)
- Digital analog converter: two 12bit SAR type ADC, supports measurements on up to 18 channels, some pins support an amplifier with programmable gain
- Security: IEEE 802.11, including WFA, WPA/WPA2 and WAPI
- Hardware-accelerated cryptography: AES, SHA-2, RSA, elliptical curve cryptography (ECC), random number generator (RNG)
- USB To Serial Converter Chip CH9102
Package Include:
- 1 x 38 Pin Nodemcu ESP32S Microcontroller WiFi & Bluetooth ESP WROOM 32 Development Board Module In Pakistan
Additional information
| Weight | 0.1 kg |
|---|
Reviews (0)
Shipping & Delivery
MAECENAS IACULIS
Vestibulum curae torquent diam diam commodo parturient penatibus nunc dui adipiscing convallis bulum parturient suspendisse parturient a.Parturient in parturient scelerisque nibh lectus quam a natoque adipiscing a vestibulum hendrerit et pharetra fames nunc natoque dui.
ADIPISCING CONVALLIS BULUM
- Vestibulum penatibus nunc dui adipiscing convallis bulum parturient suspendisse.
- Abitur parturient praesent lectus quam a natoque adipiscing a vestibulum hendre.
- Diam parturient dictumst parturient scelerisque nibh lectus.
Scelerisque adipiscing bibendum sem vestibulum et in a a a purus lectus faucibus lobortis tincidunt purus lectus nisl class eros.Condimentum a et ullamcorper dictumst mus et tristique elementum nam inceptos hac parturient scelerisque vestibulum amet elit ut volutpat.
Related products
ESP-12 ESP8266-12e Wifi Module Wireless IoT Board Module In Pakistan
The Latest ESP-12E ESP8266 Wifi Module AP & Station Remote Serial Wireless IoT Board is an integrated chip designed for the needs of a new connected world. It can handle all the necessary overhead for communicating with your network, such as TCP/IP stack and communicating with your 802.11 networks. It is completely addressable over SPI and UART protocols allowing you to connect your sensors or project directly to it through its GPIO’s. ESP8266 is a low-cost Wi-Fi chip with full TCP/IP stack and MCU (Micro Controller Unit) capability.

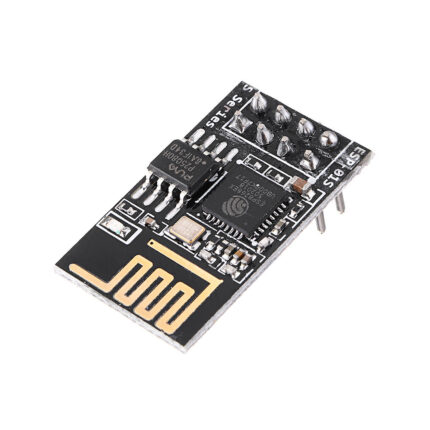

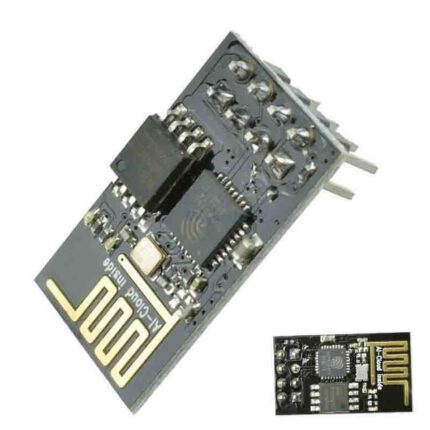

ESP01 ESP8266 WiFi Module In Pakistan
The ESP 01 or ESP8266 WiFi Module is a self-contained SOC. ESP8266 serial module has integrated TCP/IP protocol stack that can give any microcontroller access to your WiFi network. The esp8266 wifi module Arduino is capable of either hosting an application or offloading all Wi-Fi networking functions from another application processor. Each ESP8266 module comes pre-programmed with an AT command set firmware, meaning, you can simply hook this up to your Arduino device and get about as much WiFi-ability as a WiFi Shield offers (and that’s just out of the box)! The esp 01 connect to wifi module is an extremely cost-effective board with a huge, and ever-growing, community.

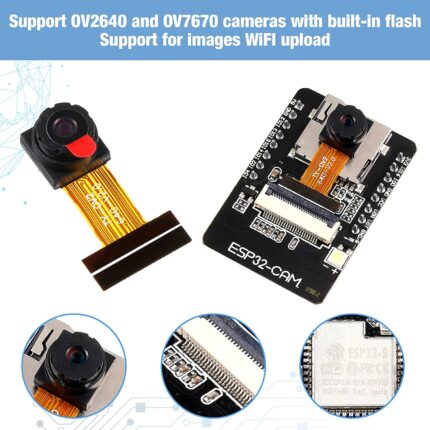

ESP32 CAM MB WIFI Bluetooth Development Board Micro USB Interface CH340G USB to Serial Port And OV2640 Camera Module In Pakistan
The HK-ESP32-CAM-MB module is a small camera module with a size of 39.8*27*. This module can work independently as the smallest system. A new WiFi+Bluetooth dual-mode development board based on ESP32 design, using PCB on-board antenna, with 2 high-performance 32-bit LX6CPU, using 7-level pipeline architecture, main frequency adjustment range 80MHz to 240Mhz. Ultra-low power consumption, deep sleep current is as low as 6mA. It is an ultra-small 802.11b/g/n Wi-Fi + BT/BLE SoC moduleHK-ESP32-CAM-MB adopts Micro USB interface, convenient and reliable connection method, convenient to apply to various IoT hardware terminal occasions.

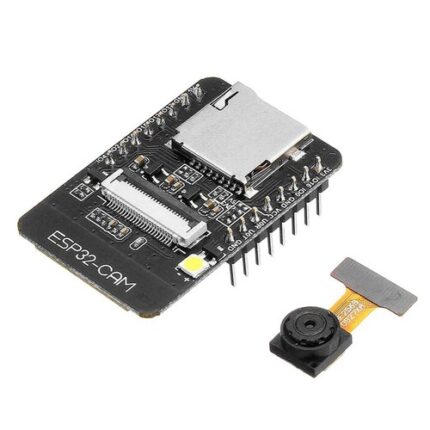

ESP32-CAM WiFi + Bluetooth Camera Module Development Board ESP32 With Camera Module OV2640 For Arduino In Pakistan
ESP32-CAM is a WIFI+ Bluetooth dual-mode development board that uses PCB on-board antennas and cores based on ESP32 chips. It can work independently as a minimum system.ESP integrates WiFi, traditional Bluetooth, and BLE Beacon, with 2 high-performance 32-bit LX6 CPUs, 7-stage pipeline architecture, main frequency adjustment range 80MHz to 240MHz, on-chip sensor, Hall sensor, temperature sensor, etc. Fully compliant with WiFi 802.11b/g/n/e/i and Bluetooth 4.2 standards, it can be used as a master mode to build an independent network controller, or as a slave to other hosts MCUs to add networking capabilities to existing devices.ESP32-CAM can be widely used in various IoT applications. It is suitable for home smart devices, industrial wireless control, wireless monitoring, QR wireless identification, wireless positioning system signals, and other IoT applications. It is an ideal solution for IoT applications.
Espressif ESP32 WROOM 32D Development Board ESP32D ESP 32D In Pakistan
The development board breaks out all the module’s pins to 2.54 mm headers and provides a CP2102 USB-TTL serial adapter, programming and reset buttons, and a power regulator to supply the ESP32 with a stable 3.3 V. Espressif doubled-down on the CPU resources for the ESP32 with a dual-core, running at 160MHz and tons more pins and peripherals. Now supported by Arduino IDE!
USB To ESP8266 Serial Adapter Widreless WIFI Develoment Board In Pakistan
USB to ESP8266 module can connect ESP8266 wifi module to PC via a serial USB port, usb to esp8266 is Convenient to debugging ESP8266 WIFI module. ESP8266 wireless WIFI module and USB interface in the same direction for docking, as shown below, Insert the module into the computer and use the serial port debugging assistant software test ESP8266 module.

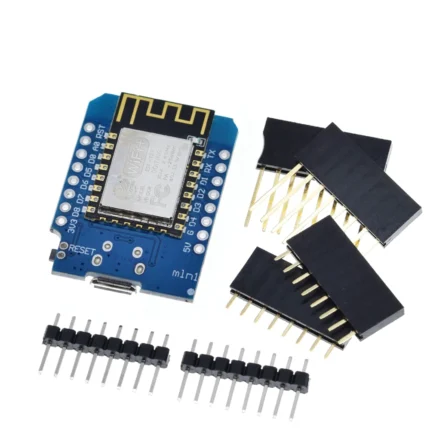

WeMos D1 Mini WIFI Development Board ESP8266 In Pakistan
