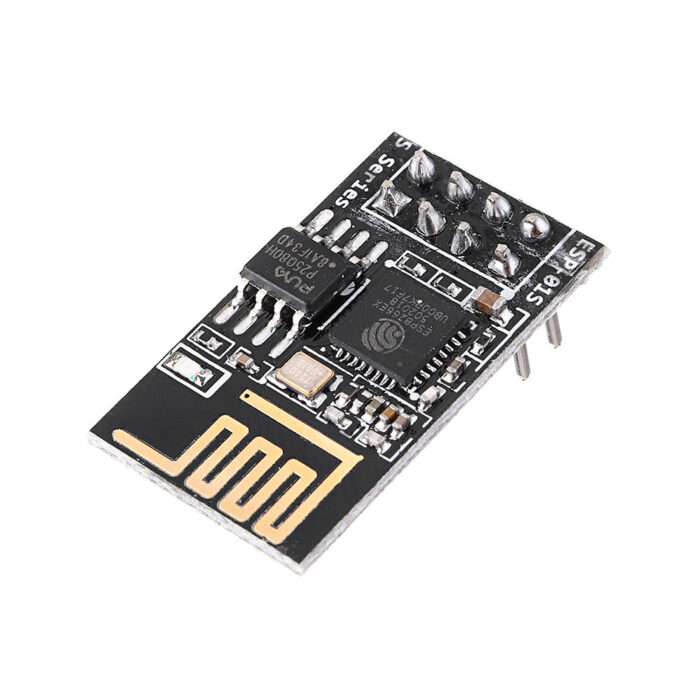

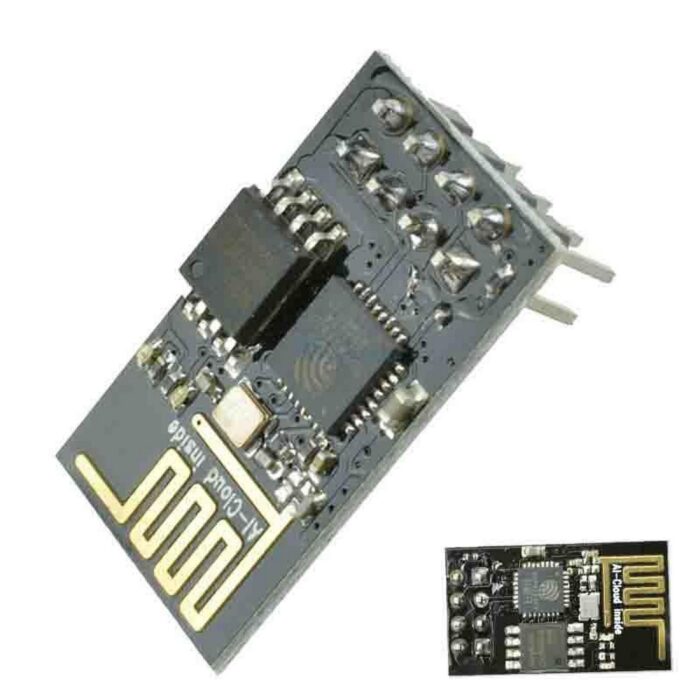

ESP01 ESP8266 WiFi Module In Pakistan
The ESP 01 or ESP8266 WiFi Module is a self-contained SOC. ESP8266 serial module has integrated TCP/IP protocol stack that can give any microcontroller access to your WiFi network. The esp8266 wifi module Arduino is capable of either hosting an application or offloading all Wi-Fi networking functions from another application processor. Each ESP8266 module comes pre-programmed with an AT command set firmware, meaning, you can simply hook this up to your Arduino device and get about as much WiFi-ability as a WiFi Shield offers (and that’s just out of the box)! The esp 01 connect to wifi module is an extremely cost-effective board with a huge, and ever-growing, community.
₨350
The ESP 01 or ESP8266 WiFi Module is a self-contained SOC. ESP8266 serial module has integrated TCP/IP protocol stack that can give any microcontroller access to your WiFi network. The esp8266 wifi module Arduino is capable of either hosting an application or offloading all Wi-Fi networking functions from another application processor. Each ESP8266 module comes pre-programmed with an AT command set firmware, meaning, you can simply hook this up to your Arduino device and get about as much WiFi-ability as a WiFi Shield offers (and that’s just out of the box)! The esp 01 connect to wifi module is an extremely cost-effective board with a huge, and ever-growing, community.
Specification of ESP01 ESP8266 WiFi Module:
- 802.11 b/g/n
- Wi-Fi Direct (P2P), soft-AP
- Integrated TCP/IP protocol stack
- Integrated TR switch, balun, LNA, power amplifier and matching network
- Integrated PLLs, regulators, DCXO and power management units
- +19.5dBm output power in 802.11b mode
- Power down leakage current of <10uA
- 1MB Flash Memory
- Integrated low power 32-bit CPU could be used as an application processor
- SDIO 1.1 / 2.0, SPI, UART
- STBC, 1×1 MIMO, 2×1 MIMO
- A-MPDU & A-MSDU aggregation & 0.4ms guard interval
- Wake up and transmit packets in < 2ms
- Standby power consumption of < 1.0mW (DTIM3)
Package Include:
- 1 x ESP01 ESP8266 WiFi Module In Pakistan
