DHT11 Temperature and Humidity Sensor Module IN Pakistan

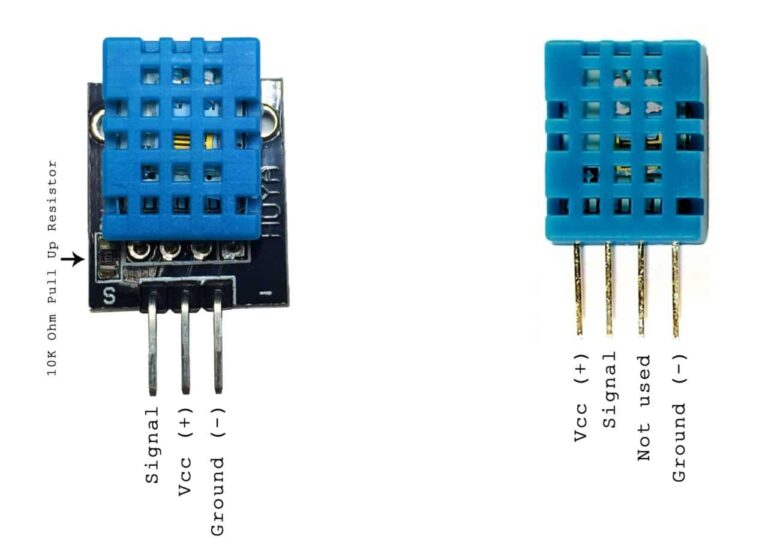

This module consists of a DHT11 digital humidity and temperature sensor and a 1 kΩ resistor. The DHT11 uses an internal thermistor and a capacitive humidity sensor to determine environmental conditions, an internal chip is responsible for converting readings to a serial digital signal.
₨220
Features Of DHT11:
- Low power consumption.
- DHT11 sensor adopts
- The module can detect the surrounding environment of the humidity and temperature
- High reliability and excellent long-term stability
- The output from the digital output
- Has a fixed bolt hole and easy installation
Specifications Of DHT11 Sensor:
- Humidity Measuring Range(%): 20 to 90
- Temperature Measuring Range(°C): 0 to +50
- Humidity Measurement Accuracy(%): ±5.0
- Temperature Measurement Accuracy(°C): ±2.0
- Response Time(s): <5
- Supply Voltage (V): 5
- Breadboard Size(mm): 19×17 (LxW)
- Weight (gm): 0.6
- Low power consumption.
- DHT11 sensor adopts.
- The module can detect the surrounding environment of the humidity and temperature
- High reliability and excellent long-term stability
- The output from the digital output
- Has a fixed bolt hole and easy installation
Package Includes In DHT11 :
- 1 X DHT11 Digital Relative Humidity & Temperature Sensor Module.
