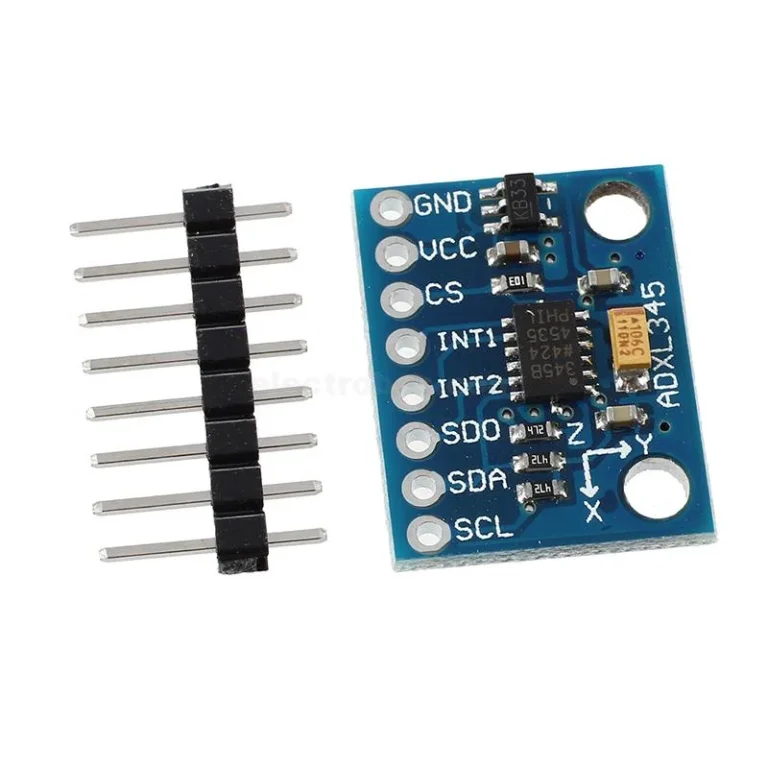

ADXL345 Tripple Axis Accelerometer Module in Pakistan

DXL345 Tripple Axis Accelerometer Board is a small, thin, low-power, 3-axis accelerometer with high resolution (13-bit) measurement at up to ±16g. Digital output data is formatted as 16-bit twos complement and is accessible through either a SPI (3- or 4-wire) or I2C digital interface.


Specifications and Features:

  1. Voltage – Supply: 3.3 V/ 5V.
  2. Interface: I²C, SPI.
  3. Sensing Range : ±2g, 4g, 8g, 16g.
  4. Sensitivity:
  5. X: 28.6 LSB/g.
  6. Y: 31.2 LSB/g.
  7. Z: 34.5 LSB/g.
  8. Sensor Type: Accelerometer 3 Axis.
  9. Dimensions : 28 mm x 14 mm.
  10. Weight: 10 gm.
  11. Ultra Low Power: 40µA in measurement mode, 0.1µA in standby@ 2.5V.
  12. Free-Fall Detection.
  13. Tap/Double Tap Detection.
  14. Flexible interrupt modes mappable to either interrupt pin Measurement ranges selectable via serial command Bandwidth selectable via serial command
  15. Wide temperature range (−40°C to +85°C).
  16. 10,000 g shock survival.
  17. Support 5V/3.3V voltage input, onboard RT9161 power chip, lower pressure drop faster than 1117, faster load speed of response, very suitable for high-noise power supply environment.
  18. User-selectable resolution
  19. Fixed 10-bit resolution.
  20. Full resolution, where resolution increases with g range, up to 13-bit resolution at ±16 g (maintaining 4 mg/LSB scale factor in all g ranges).

Applications :

  1. Pointing devices.
  2. Handsets.
  3. Medical instrumentation.
  4. Gaming.
  5. Industrial instrumentation.
  6. Personal navigation devices.
  7. Hard disk drive (HDD) protection.
  8. Fitness equipment.
  9. defense and aerospace.

Package Includes:

1 x  ADXL345 Trippel Axis Accelerometer Module
