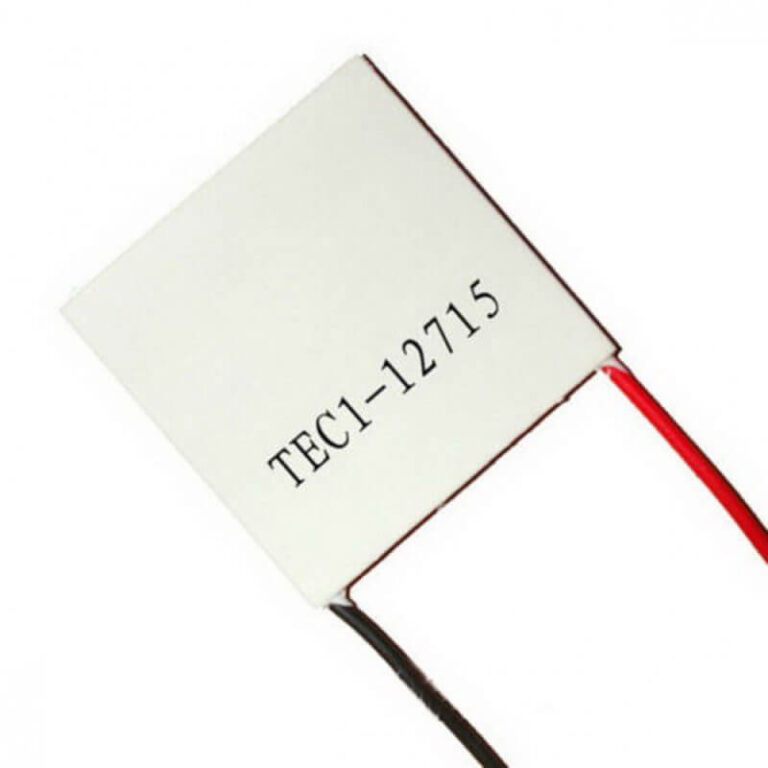

TEC1-12715 12V Dc 15A Thermoelectric Cooler Peltier Module In Pakistan

Product name is thermoelectric plate module
The model number is TEC1-12715
Its color is white
Couples are127
Voltages are 12V
Umax is 15.4V
Imax current is 15A
Max power consumption is 231W
Tmax is almost 70°C

1000

Features Of TEC1-12715 Thermoelectric Cooler Heat Sink Cooling Peltier 12 Volt:

  • Ceramics thermoelectric Cooler semiconductor module TEC1-12715
  • Small module.
  • Its work is characterized by side refrigeration and side fever.
  • Hot and cold on both sides of the temperature difference of 68 degrees
  • Connected to the 12-volt power supply cooling piece on both sides there will be a difference in temperature, side cold side of the heat, do not long power cooler radiator, otherwise, it will cause cooler internal overheating and burning.
  • Quality tested cooling cells.
  • Solid-state, vibration-free, noise-free.
  • Simple to install and operate.
  • Fitted with 6-inch insulated leads
  • Life expectancy: 200,000 hours.
  • Failure rate based on longtime testings: 0.2%.

    Specifications Of 40x40mm Thermoelectric Cooler Peltier Refrigeration Plate Module:

    1. Product name: thermoelectric cooler plate module
    2. Model: TEC1-12715
    3. Color: white
    4. Couples: 127
    5. Voltage: 12V
    6. Umax: 15.4V
    7. Imax: 15A
    8. Max power consumption: 231W
    9. Tmax: 70°C
    10. Qcmax △T=0(W): 137W
    11. Size: 40 x 40 x 3.3mm
    12. Weight: 50g

    Important Note!! The heat side requires a heat sink all the time. “ Do not run this device with a power supply more than a few seconds without a heatsink mounted to the device! ”

    Package Include:

    • 1 x TEC1-12715 12V Dc 15A Thermoelectric Cooler Peltier Module In Pakistan
