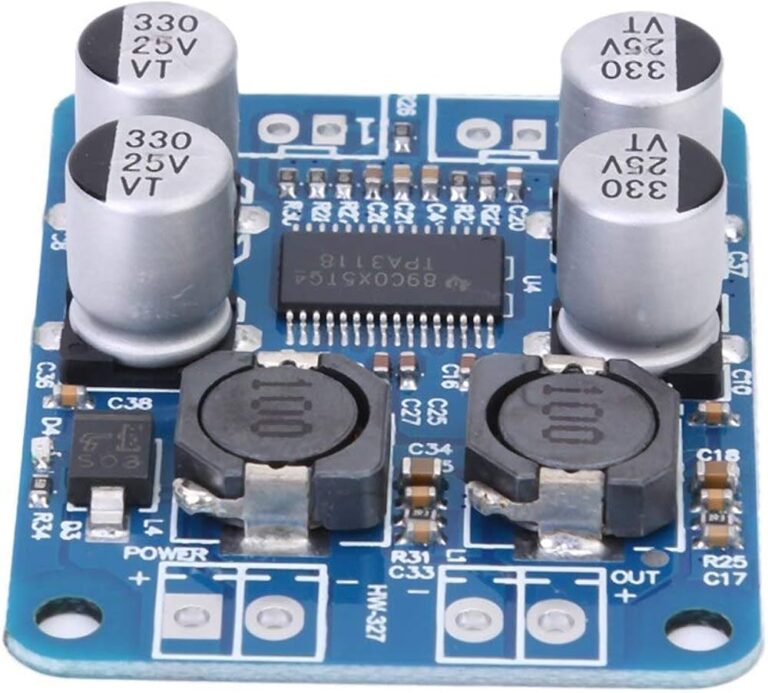

The Audio Amplifier Board Module TDA3118 is a limited version of the TDA3116D2. The limitation seems obtained by different packages for the two chips. This amplifier module is supplied in a plastic package (HTSSOP32) with a cooling pad turned downward on the PCB while the TPA3116D2 package has a cooling pad on the top for a heat sink. The 2-channel Mono module is described in the common data sheet as able to operate “without heat sink”, which is no doubt correct for up to 19V supply voltage but may be arguable at full supply voltage.

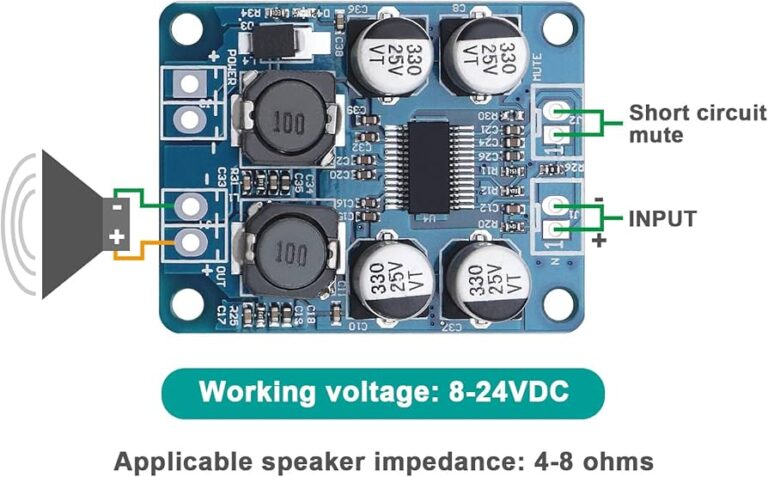

Specification of TDA3118 Digital 2-Channel Mono Audio Amplifier Board Module:

1. Power amplifier chip: TPA3118
2. Applicable speaker impedance: 4-8 ohm(8 ohm is the best)
3. Audio Input: Bluetooth Receiving
4. Power amplifier power: 1*60W
5. Power supply voltage: 8~24VDC
6. Size: 46*35mm

Features Of PBTL Mono Digital Amplifier Board 1x60W TDA3118 :

1. Mono digital audio power amplifier chip
2. High output and low power consumption
3. Sound quality is very good by using this module

Package Include:

• 1 x TDA3118 Digital 2-Channel Mono Audio Amplifier Board Module In Pakistan
