QC Dual USB 5V 2.4A Micro Type C Lightning USB Power Bank Kit With LED Display In Pakistan

Do you want to build your own QUICK CHARGE power bank from your spare 18650 battery cells?  Then this 18650 5V 1A/2A Lithium Battery Digital Display Charging Module is for you. Just like a modern power bank, the module is equipped with Dual USB output to charge the gadgets at 2.4A and 1A. To charge the batteries, this module has two USB inputs one is C-type input, and the other is a MicroUSB input. Onboard, a brilliant blue-colored illuminating LED Display displays the real-time battery percentage in the 0–100% range, as well as the IN and OUT Signal. Furthermore, the board contains a connection for installing an LED to be used as a flashlight, which is generally found on a POWER BANK.

500 600

Do you want to build your own QUICK CHARGE power bank from your spare 18650 battery cells?  Then this 18650 5V 1A/2A Lithium Battery Digital Display Charging Module is for you. Just like a modern power bank, the module is equipped with Dual USB output to charge the gadgets at 2.4A and 1A. To charge the batteries, this module has two USB inputs one is C-type input, and the other is a MicroUSB input. Onboard, a brilliant blue-colored illuminating LED Display displays the real-time battery percentage in the 0–100% range, as well as the IN and OUT Signal. Furthermore, the board contains a connection for installing an LED to be used as a flashlight, which is generally found on a POWER BANK.

Specification of QC Dual USB 5V 2.4A Micro Type C Lightning USB Power Bank Kit With LED Display:

  1. Input voltage B+ to B-: 3.0 – 4.2V
  2. Output 1: 5V 1A
  3. Output 2: 5V 2.4A
  4. Constant current: 2.4A

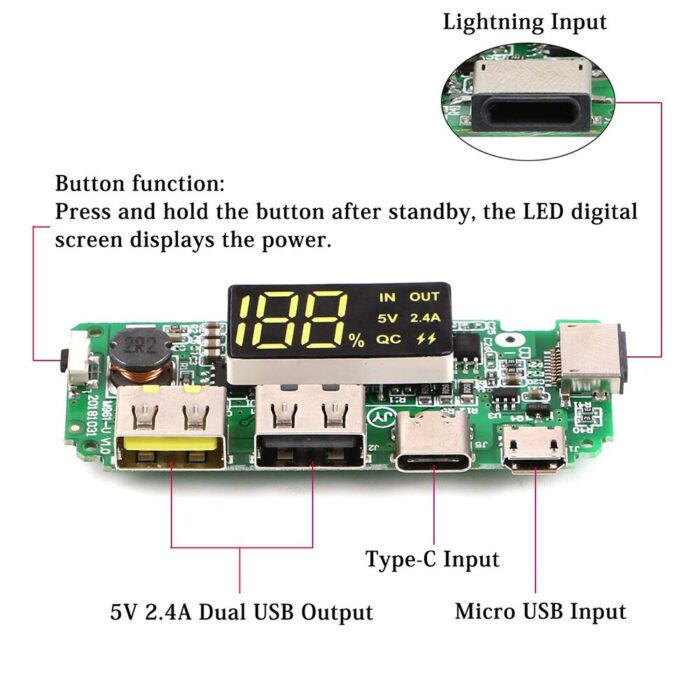

  5. Charging cable: support three types of USB Cables for iPhone Lightning & Andriod Type-C And Micro USB
  6. Button function: Press and hold the button after standby, and the LED digital screen displays the power
  7. Allowed 0V change: Yes
  8. IR of PCM: ≤65 mΩ

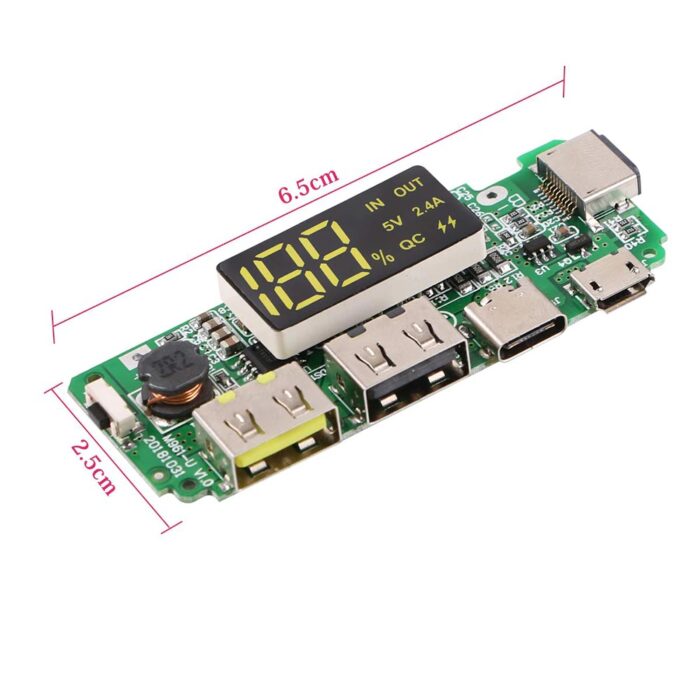

  9. Size: 6.5 * 2.5 * 0.1cm

LED Indicator Display:

  • The LED digital screen displays the current battery charge while charging.
    When discharging, the LED digital screen displays the current power, and the display is saved in about 30 seconds (double-click the button to resume display).
  • The system will provide an accurate battery indication after a complete charge and discharge.

Prevent Overcharge Protection:

  1. Detection voltage: 4.20±0.05V
  2. Release voltage: 4.100±0.05V
  3. Detection delay time: <200 ms

Prevent Over-discharge Protection:

  • Detection voltage: 3.0±0.10V
  • Release voltage: 3.10±0.10V
  • Detection delay time: <100 ms

Short Circuit Protection:

  1. Short detection delay time: <50μS
  2. Release Conditions: Cut offload

Normal Current Consumption:

  • Normal current consumption of PCM: Max 60μA
  • Standby current consumption: Max 50μA

Suggest Working Conditions:

  1. Max continuous charge/discharge current: 1.5/2.4A
  2. Suggest working temperature: -5~45℃

QC Dual USB 5V 2.4A Micro Type C Lightning USB Power Bank Kit With LED Display In Pakistan QC Dual USB 5V 2.4A Micro Type C Lightning USB Power Bank Kit With LED Display In Pakistan QC Dual USB 5V 2.4A Micro Type C Lightning USB Power Bank Kit With LED Display In Pakistan



Package Include:

  • 1 x QC Dual USB 5V 2.4A Micro Type C Lightning USB Power Bank Kit With LED Display In Pakistan
