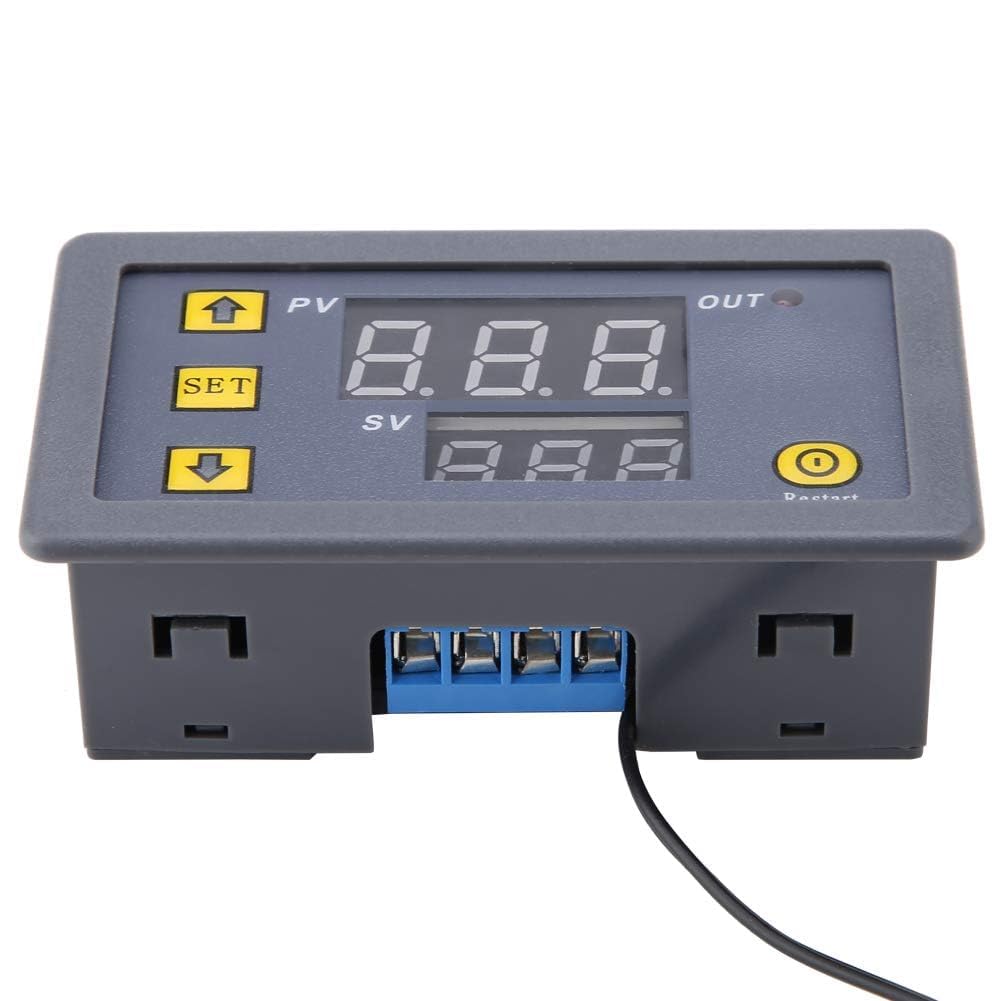

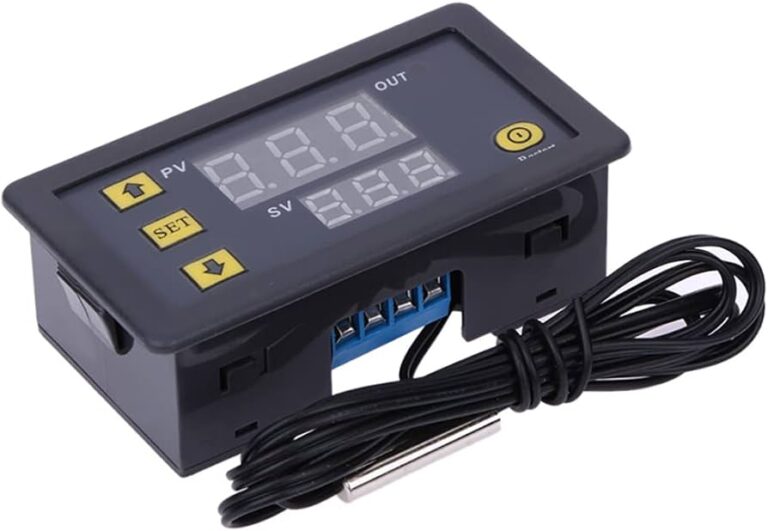

12V DC W3230 Digital Temperature Controller In Pakistan
W3230 DC 12V 20A Digital Temperature Controller Thermostat Can be used for Incubators, domestic freezers, water tanks, refrigerators, industrial chillers, steamers, industrial equipment, and another temperature-controlled systems. clear LED display for better readability. Wide temperature measuring range.Heating or cooling control 12V DC W3230 Digital Temperature Controller In Pakistan.
₨800
Description
W3230 DC 12V 20A Digital Temperature Controller Thermostat Can be used for Incubators, domestic freezers, water tanks, refrigerators, industrial chillers, steamers, industrial equipment, and another temperature-controlled systems. clear LED display for better readability. Wide temperature measuring range.Heating or cooling control 12V DC W3230 Digital Temperature Controller In Pakistan.
Specification of 12V DC W3230 Digital Temperature Controller:
- Model: W3230
- Input Voltage: DC 12V
- Temperature Range: -50-120℃
- Resolution: 0.1°C (-9.9-99.9°C); 1°C (other temperature range)
- Measurement Accuracy: ±0.1°C
- Control Accuracy: 0.1℃
- Return Difference Accuracy: 0.1°C
- Refresh Rate: 0.5S
- Display Color: Red+Blue
- Measuring Inputs: NTC (10K 0.5%) Waterproof type sensor
- Output: 1 Way 20A Relay
- Environmental requirements: -10-60°C, humidity 20% -85%
- Data Save: Yes
- Quantity: 1 Pc
Code table:
|
Code |
Function |
Set Range |
Default |
|
P0 |
Heating/Cooling |
H/C |
C |
|
P1 |
Return Difference |
0.1-30 |
2 |
|
P2 |
Setting limits to the minimum |
120 |
120 |
|
P3 |
Setting limits to the minimum |
-55 |
-55 |
|
P4 |
Temp. Correction |
-20 |
0 |
|
P5 |
Delay Start |
0-10min |
0 |
|
P6 |
Alarm Temp |
-175 |
OFF |
|
P7 |
Data locked |
ON/OFF |
OFF |
|
P8 |
Restore factory settings |
ON/OFF |
OFF |
Package Include:
- 1 x 12V DC W3230 Digital Temperature controller In Pakistan
Based on 0 reviews
Be the first to review “12V DC W3230 Digital Temperature Controller In Pakistan”
Related products
-
Egg Incubators Parts
Original W1209 Temperature Controller in Pakistan
Best Online Shopping website for W1209 Temperature Controller Incubation Thermostat. Here you get W1209 Temperature Controller at a reasonable price in Karachi, Lahore, Islamabad, Rawalpindi, Peshawar, Multan, Faisalabad and all over Pakistan. You can intelligently control power to most types of electrical device based on the temperature sensed by the included high accuracy NTC temperature sensor. Although this Temperature controller module has an embedded microcontroller no programming knowledge is required. 3 tactile switches allow for configuring various parameters including on & off trigger temperatures. The onboard relay can switch up to a maximum of 240V AC at 5A or 14V DC at 10A. The current temperature is displayed in degrees Centigrade via its 3 digit seven segment display and the current relay state by an onboard LED.
SKU: SH130 -
Egg Incubators Parts

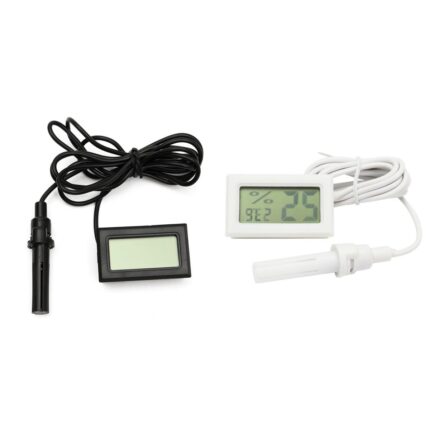

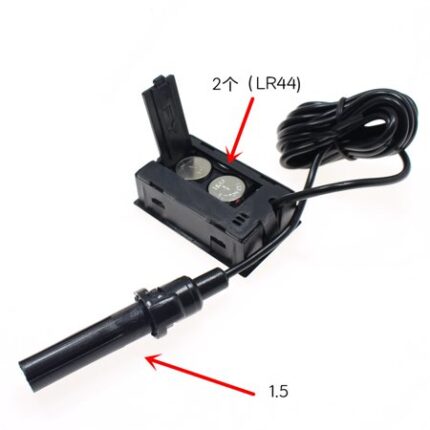

Mini Digital Thermometer Hygrometer Temperature Humidity Meter FY-11 in Pakistan
