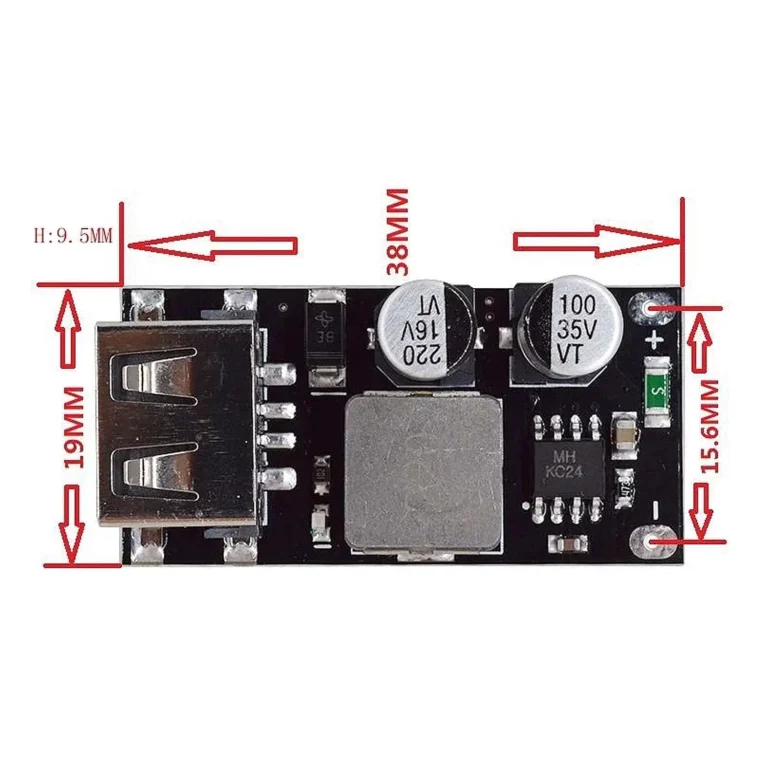

QC3.0 QC2.0 USB Quick Charging Board Module DC To DC Buck Converter In Pakistan

This USB buck fast-charging module integrates the common 5V charging recognition function, which is compatible with 99% of the mobile phones on the market.

Specification of QC3.0 USB Quick Charging Board Module DC To DC Buck Converter:

• Input voltage range: 6V to 32V
• Output voltage: The default is 5V. After the fast charge is triggered, it is automatically adjusted between 3 and 12V.
• Output Power: 24W (5V, 3.4A, 9V, 2.5A, 12V, 2A, etc.)
• Output voltage wired compensation
• Conversion efficiency: 90% to 97%
• Supports multiple fast-charging protocols
• Input overvoltage, undervoltage protection
• Input over-current protection
• Output overcurrent and short circuit protection
• Over-temperature protection
• Support fast charging protocol
• for BC1.2, iPhone, Samsung agreement
• for Qualcomm QC2.O and QC3.O
• MTKPEI.1/PE2.O
• Fast Charge Protocol FCP
• Star Fast Charge Protocol AFC

Feature of QC3.0 USB Fast Charging Circuit Board Module:

1. Supports multiple fast charging protocols.
2. Input over-voltage, over current, and under-voltage protection.
3. Output overcurrent, short circuit protection
4. Module over-temperature protection.
5. Long lifespan.
6. Used to charge solar mobile phone, car charging retrofit, driving recorder power supply, home power conversion, etc.

Package Include:

• 1 x QC3.0 USB Quick Charging Board Module DC To DC Buck Converter In Pakistan
